Installation
In hoisting/lowering applications, control of electro-
mechanical brake is required:
•
The brake is controlled using the special
mechanical brake control/supply terminals 122
and 123.
•
Select [32] Mechanical brake control in parameter
group 5-4*, [1] Array, Relay 2 for applications with
an electro-mechanical brake.
•
The brake is released when the motor current
exceeds the preset value in 2-20 Release Brake
Current.
•
The brake is engaged when the output frequency
is less than the frequency set in 2-21 Activate
Brake Speed [RPM] or 2-22 Activate Brake Speed
[Hz]. The brake engages only when the frequency
converter performs a stop command.
When the frequency converter enters alarm mode or is
exposed to an over-voltage situation, the mechanical brake
immediately cuts in. For more detailed information, refer to
the FCD 302 Programming Guide, MG04GXYY.
NOTE
When the Mechanical Brake Control/Supply terminals 122
and 123 are set through parameter group 5-4*, [1] Array,
Relay 2, only one relay output (Relay 1) is available for free
programming.

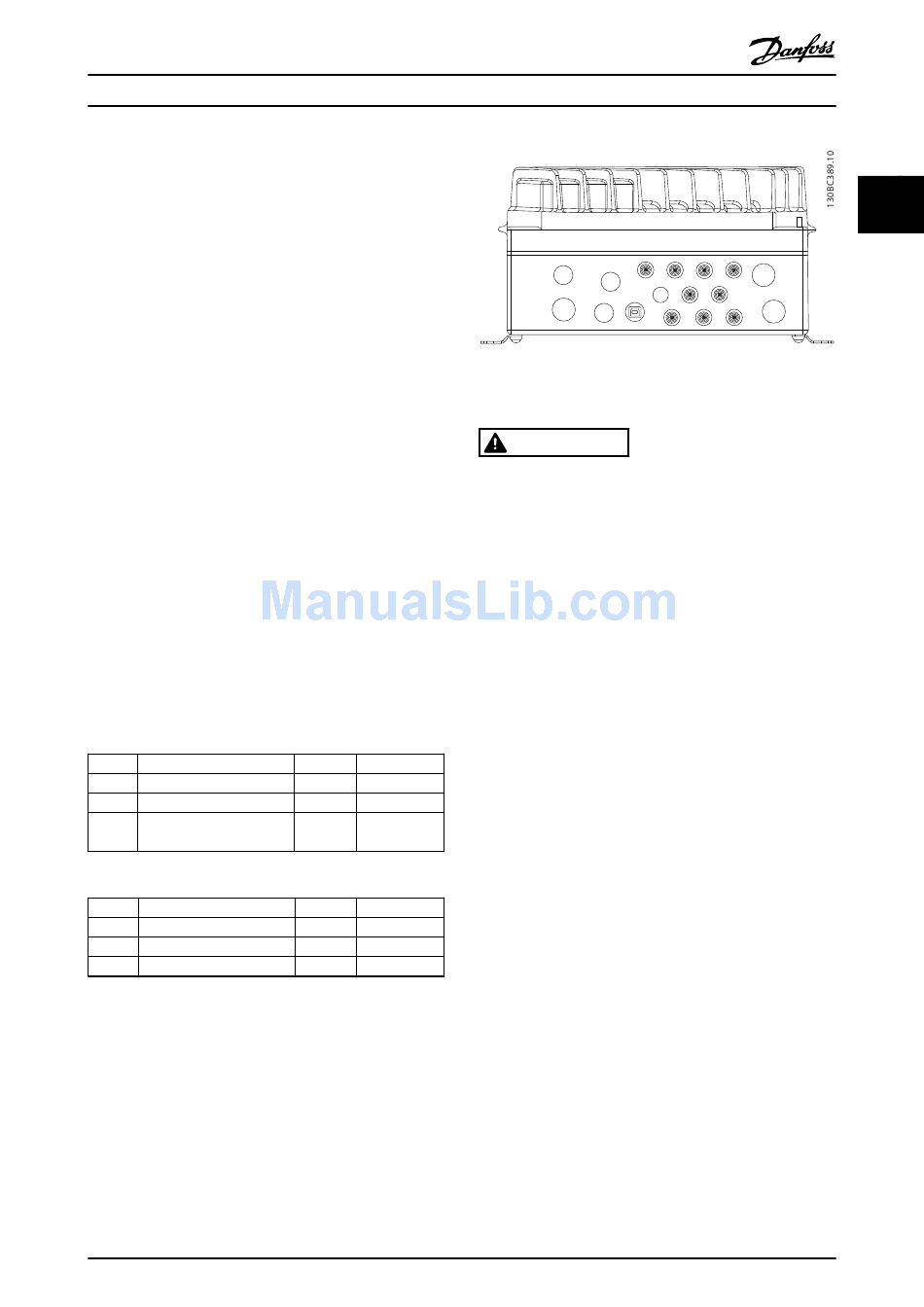

2.4.10 Connection of Sensors/Actuators on
M12 Sockets
Pin Wire colour
1 Brown
3 Blue
4 Black
Table 2.1 4xM12 Connection Input
Pin Wire colour
1 Brown
3 Blue
4 Black
Table 2.2 2xM12 Connection Output
* When reserved wires for option are used. If not utilised, they can be
cut off.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
®
VLT Decentral Drive FCD 302 Operating Instructions
Terminal Function
12 +24 V
20 0 V
18, 19, 32, Digital input
33
Terminal Function
Reserved* Reserved
20 0 V
02, 05 N.O. (24 V)
®
MG04F302 - VLT is a registered Danfoss trademark
LCP
USB

2.4.11 Earth (Grounding) Requirements

WARNING
GROUNDING HAZARD
For operator safety, it is important to ground frequency
converter properly in accordance with national and local
electrical codes as well as instructions contained within
this manual. Ground currents are higher than 3.5 mA.
Failure to ground frequency converter properly could
result in death or serious injury.
NOTE
It is the responsibility of the user or certified electrical
installer to ensure correct grounding (earthing) of the
equipment in accordance with national and local electrical
codes and standards.
•
Proper protective grounding for equipment with
ground currents higher than 3.5 mA must be
established, see Leakage Current (3.5 mA)
following.
•
A dedicated ground wire is required for input
power and motor.
•
Use the clamps provided with on the equipment
for proper ground connections.
•
Use of high-strand wire to reduce electrical noise
is recommended.
RL2 33
RL1
FB2 FB1
18 19 32
21
2 2
