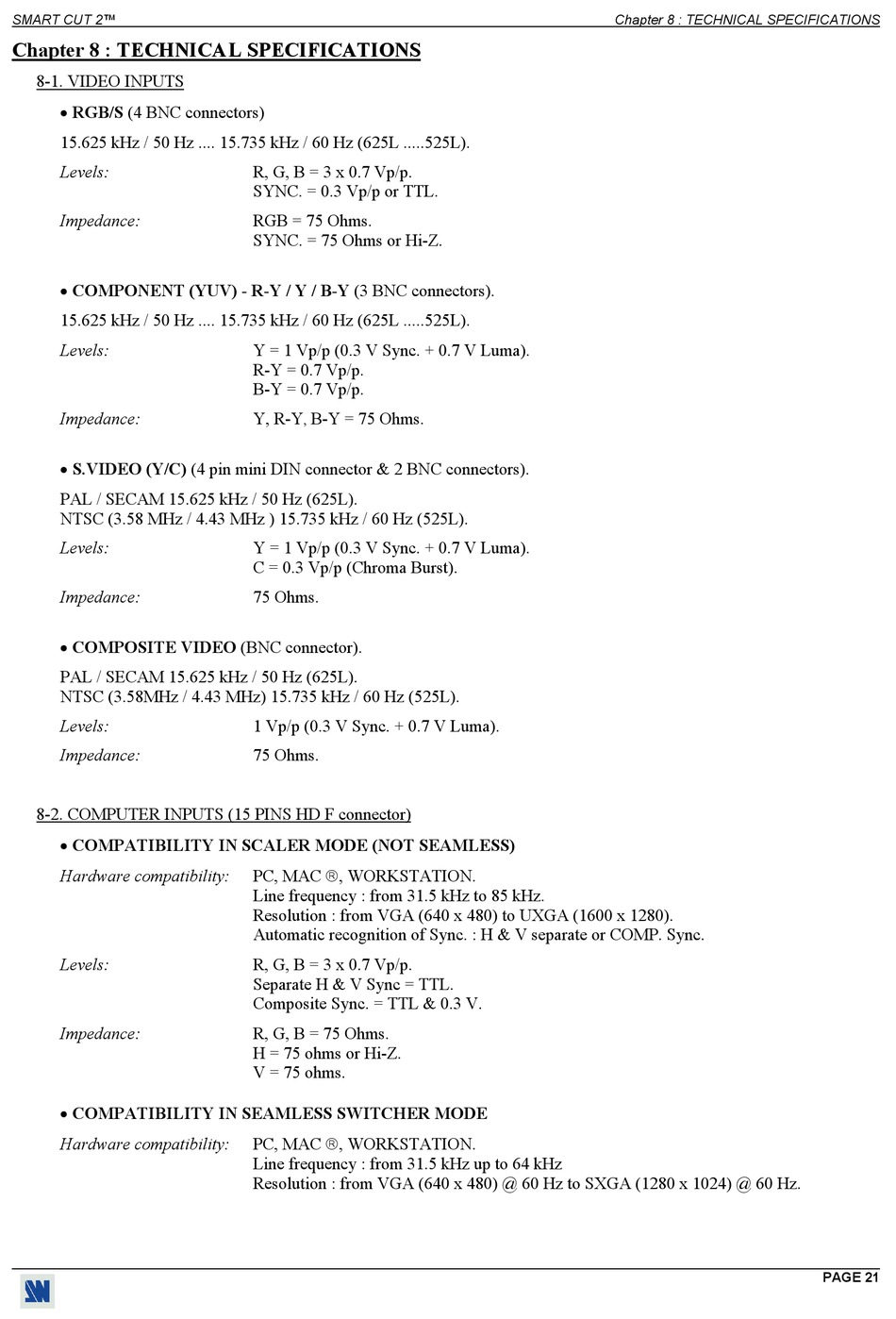

Chapter 8 : TECHNICAL SPECIFICATIONS

8-1. VIDEO INPUTS
• RGB/S (4 BNC connectors)
15.625 kHz / 50 Hz .... 15.735 kHz / 60 Hz (625L .....525L).
Levels:
Impedance:
• COMPONENT (YUV) - R-Y / Y / B-Y (3 BNC connectors).
15.625 kHz / 50 Hz .... 15.735 kHz / 60 Hz (625L .....525L).
Levels:
Impedance:
• S.VIDEO (Y/C) (4 pin mini DIN connector & 2 BNC connectors).
PAL / SECAM 15.625 kHz / 50 Hz (625L).
NTSC (3.58 MHz / 4.43 MHz ) 15.735 kHz / 60 Hz (525L).
Levels:
Impedance:
• COMPOSITE VIDEO (BNC connector).
PAL / SECAM 15.625 kHz / 50 Hz (625L).
NTSC (3.58MHz / 4.43 MHz) 15.735 kHz / 60 Hz (525L).
Levels:
Impedance:
8-2. COMPUTER INPUTS (15 PINS HD F connector)
• COMPATIBILITY IN SCALER MODE (NOT SEAMLESS)
Hardware compatibility:
Levels:
Impedance:
• COMPATIBILITY IN SEAMLESS SWITCHER MODE
Hardware compatibility:
R, G, B = 3 x 0.7 Vp/p.
SYNC. = 0.3 Vp/p or TTL.
RGB = 75 Ohms.
SYNC. = 75 Ohms or Hi-Z.
Y = 1 Vp/p (0.3 V Sync. + 0.7 V Luma).
R-Y = 0.7 Vp/p.
B-Y = 0.7 Vp/p.
Y, R-Y B-Y = 75 Ohms.
,
Y = 1 Vp/p (0.3 V Sync. + 0.7 V Luma).
C = 0.3 Vp/p (Chroma Burst).
75 Ohms.
1 Vp/p (0.3 V Sync. + 0.7 V Luma).
75 Ohms.
PC, MAC , WORKSTATION.
Line frequency : from 31.5 kHz to 85 kHz.
Resolution : from VGA (640 x 480) to UXGA (1600 x 1280).
Automatic recognition of Sync. : H & V separate or COMP. Sync.
R, G, B = 3 x 0.7 Vp/p.
Separate H & V Sync = TTL.
Composite Sync. = TTL & 0.3 V.
R, G, B = 75 Ohms.
H = 75 ohms or Hi-Z.
V = 75 ohms.
PC, MAC , WORKSTATION.
Line frequency : from 31.5 kHz up to 64 kHz
Resolution : from VGA (640 x 480) @ 60 Hz to SXGA (1280 x 1024) @ 60 Hz.
