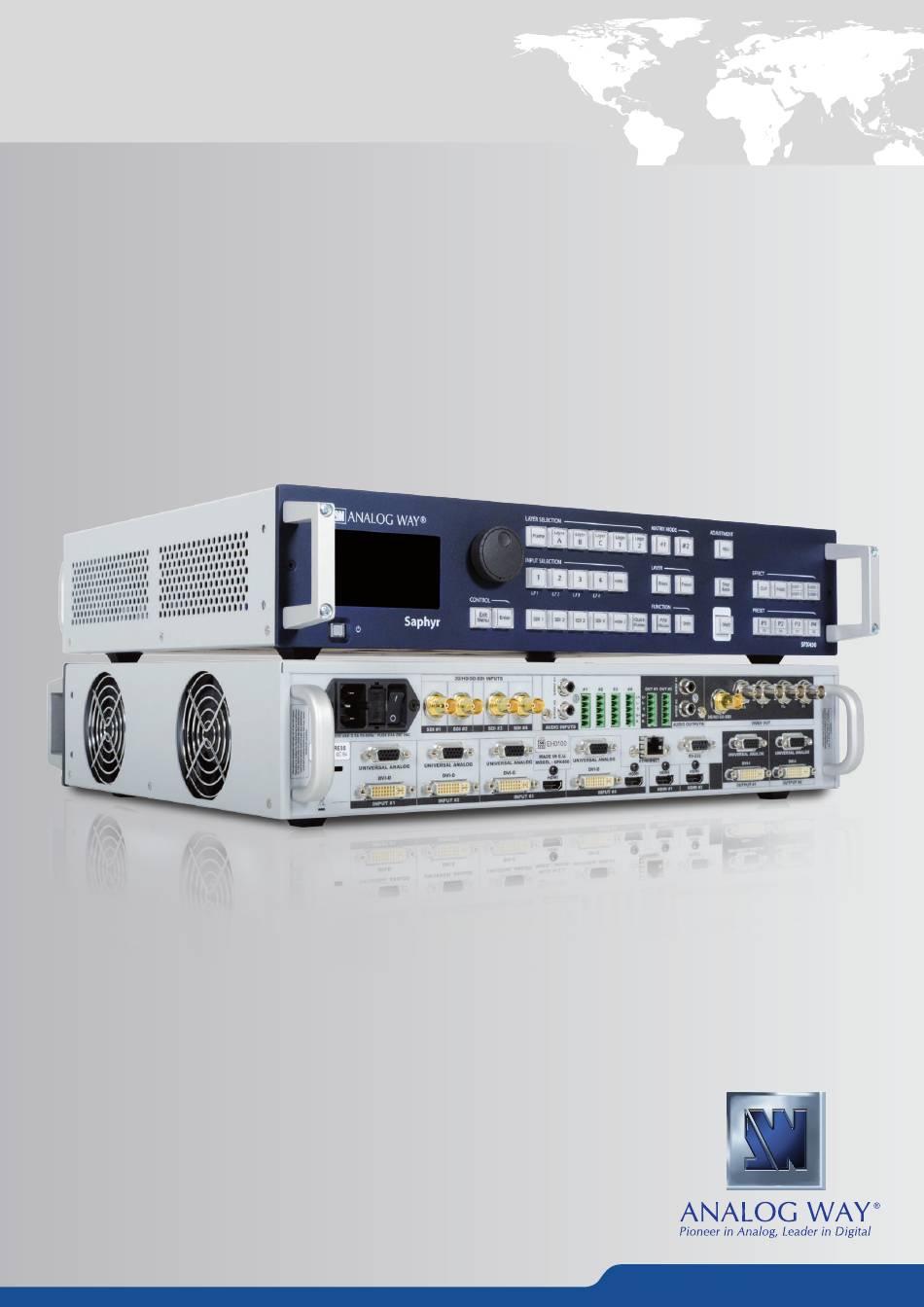

USER MANUAL
Saphyr
Ref. SPX450

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPX450 and is the answer not in the manual?

Questions and answers

Related Manuals for Analog way SPX450

Summary of Contents for Analog way SPX450

  • Page 1 USER MANUAL Saphyr Ref. SPX450...

  • Page 3: Terms And Definitions

    THANK YOU By following these simple steps you will be able to obtain the most from your powerful Saphyr and its many features. 1. TRADEMARKS 2. INTRODUCTION 3. TERMS AND DEFINITIONS 4. HARDWARE SPECIFICATIONS 4.1 Safety instructions 4.1.1 English 4.1.2 French 4.1.3 Italian 4.1.4 German 4.1.5 Spanish...
  • Page 4 4.10 HDCP management 4.10.1 Input HDCP detection 4.10.2 Output HDCP detection 4.10.3 Keys’ checking 4.10.4 Output management 4.10.5 HDCP Classification 4.10.6 Status 5. CONNECTING THE SAPHYR 5.1 Description 5.1.1 Rear panel 5.1.2 Front panel 6. CONTROLLING THE SAPHYR 6.1 RCS² requirement 6.2 Connecting with the RCS²...
  • Page 5 8. OPERATING THROUGH THE FRONT PANEL 8.1 Front panel 8.1.1 Menu navigation 8.1.2 Home menu 8.1.3 Operating modes 8.1.4 Reseting default values 8.1.5 Saphyr color codes 8.2 Settings in Mixer mode 8.2.1 Source Input selection 8.2.2 Input selection settings 8.2.3 Source Output selection 8.2.4 Output selection settings 8.2.5 Preview features 8.2.6 Preview mode and OSD settings...
  • Page 6 8.3.10 Working with frames/logos 8.4 Menu tree 9. MAINTENANCE AND SUPPORT 9.1 Dashboard (RCS²) 10. APPLICATIONS NOTE AND TIPS 10.1 HDCP 11. WARRANTY 11.1 Warranty conditions 11.2 Repair and return instructions 11.3 Return conditions 12. CONTACT INFORMATION 13. APPENDICES 13.1 Crestron 2&3 series Midra™ Driver 13.2 AMX NetLinx®...
  • Page 7 HDMI Licensing LLC in the United States and other countries. 2. INTRODUCTION Thank you for choosing the Analog Way Saphyr. Before you start setting up your Saphyr for the first time, please read through all of the documentation to become familiar with its powerful features. The Saphyr can be used in several configurations, which results in a versatile video production tool for live event staging and fixed installation applications.
  • Page 8 3. Terms and definitions 3. TERMS AND DEFINITIONS BACKGROUND: a “Background” is a source, typically originating from a computer. Saphyr enables you to work with still (frame) background — visually in back of all other sources. LAYER: a “layer” is an image display element (such as a PIP window, Key, logo or Background) that has a visual priority —...

  • Page 9: Safety Instructions

    4.1.1 English 4. HARDWARE SPECIFICATIONS 4.1 Safety instructions 4.1.1 English All of the safety and operating instructions should be read before the product is operated and should be maintained for further reference. Please follow all of the warnings on this product and its operating instructions.
  • Page 10 4.1.2 French 4.1.2 French Afin de mieux comprendre le fonctionnement de cet appareil nous vous conseillons de bien lire toutes les consignes de sécurité et de fonctionnement avant utilisation. Conservez les instructions de sécurité et de fonctionnement afin de pouvoir les consulter ultérieurement. Respectez toutes les consignes marquées dans la documentation, sur le produit et sur ce document.
  • Page 11 4.1.3 Italian 4.1.3 Italian Allo scopo di capire meglio il funzionamento di questa apparecchiatura vi consigliamo di leggere bene tutti i consigli di sicurezza e di funzionamento prima dell’utilizzo. Conservare le istruzioni di sicurezza e di funzionamento al fine di poterle consultare ulteriormente. Seguire tutti i consigli indicati su questo manuale e sull’apparecchiatura.
  • Page 12 4.1.4 German 4.1.4 German Um den Betrieb dieses Geräts zu verstehen, raten wir Ihnen vor der Inbetriebnahme alle Sicherheits und Betriebsanweisungen genau zu lesen. Diese Sicherheits- und Betriebsanweisungen für einen späteren Gebrauch sicher aufbewahren. Alle in den Unterlagen, an dem Gerät und hier angegebenen Sicherheitsanweisungen einhalten.
  • Page 13 4.1.5 Spanish 4.1.5 Spanish Para comprender mejor el funcionamiento de este aparato, le recomendamos que le acuidadosamente todas las consignas de seguridad y de funcionamiento del aparato antes de usarlo. Conserve las instrucciones de seguridad y de funcionamiento para que pueda consultarlas posteriormente. Respete todas las consignas indicadas en la documentación, relacionadas con el producto y este documento.

  • Page 14: Unpacking And Inspection

    Before racking and plugging any inputs and outputs, it is advised to power on the unit. Should you encounter any issue, you must contact immediately your local distributor or dealer, or closest Analog Way technical (see chapter: 12. Contact support offices information).

  • Page 15: Cable And Adaptor Information

    4.4 Cable and adaptator information 4.4 Cable and adaptor information A large choice of cables and adaptors are compatible with the Saphyr. Please refer to the hardware specifications chapter to find the most suitable cables for your operations. 4.5 Hardware specifications 4.5.1 Signal descriptions For each type of signal, here are the levels and the impedance accepted by the Saphyr.
  • Page 16 4.5.2 Supported video formats Analog computer Digital computer Type Levels Impedance Type Characteristics RGsB R = 0,7 Vpp RGB – 8 bits – 4.4.4 – 0/255 - TMDS G = 0,7 Vpp + 0,3 Vpp 75 Ω HDMI® RGB or YUV – 8 bits – 4.4.4 or 4.2.2 B = 0,7 Vpp –...

  • Page 17: Input Specifications

    4.5.5 Output computer formats 4.5.5 Output Computer formats The Saphyr outputs support GTF (version 1.1), CVT (version 1.1) and DMT (version 1.0 rev 12) standards. Other non-standard formats are supported via the custom format capability of the framework. The Saphyr offers a list of pre-defined output formats. The list of output formats is always displayed from increasing number of pixels per line and then number of lines.
  • Page 18 4.6 Input specifications The Saphyr uses an HDMI plug with a standard mounting M3x0,5 mm screw above the connector. Please see the diagram below. This hole is occupied by a Torx10 screw when you receive the unit. If desired, this screw can be removed and replaced by a compatible aftermarket HDMI plug locking 27 mm mechanism to ensure a secure HDMI connection.

  • Page 19: Output Specifications

    4.7 Output specifications Single-Link Standard Size HD-15 3G-SDI HDMI DVI-D 1366x768 1366x768 800p RGB 1280x800 SWXGA+ 1366x800 1152x864 1152x864 900p RGB 1440x900 1600x900 1600x900 960p RGB 1280x960 SXGA 1280x1024 1360x1024 1360x1024 DILA4/3 1364x1024 SXGA+ 1400x1050 WSXGA+ 1680x1050 1080p RGB 1920x1080 2048x1080 Q WXGA 2048x1152...

  • Page 20: Video Output

    4.7.2 Video output Please see the formats available on the output: Output Type Format Signal HDTV Analog HDTV Analog Computer/Video Ouput Computer Analog Computer HDTV Digital HDTV DVI-I Output Computer Digital Computer Please note that SDTV and EDTV are not available on the standard output but only on the video output module. 4.7.2 Video output The Saphyr has one video output.
  • Page 21 4.8.2 LAN interface 4.8.2 LAN interface A standard LAN interface is available through a RJ-45 connector - It permits controlling the device - It permits transferring configuration - It permits connectivity with the RCS² application - It permits updating the device 4.8.2.1 Protocol Protocol Availability...

  • Page 22: Electromagnetic Compatibility

    4.9 Environmental specifications 4.9 Environmental specifications Dimensions: Weight:  D 15.75’’x W 19’’ x H 3.46’’ with rack mount and handles  6,3kg / 13.9 lb  D 400 mm x W 483 mm x H 88 mm (Compatible with a Standard 19” rack, Height = 2 U) ...

  • Page 23: Hdcp Management

    4.10 HDCP management 4.10 HDCP management 4.10.1 Input HDCP detection The input HDCP detection is managed by the input components according to HDCP specification. 4.10.2 Output HDCP detection The Saphyr manages the output HDCP detection according to one of the following criteria: - Hot plug, - 3-second period attempt.
  • Page 24 5.1.1 Rear panel 5. CONNECTING THE SAPHYR 5.1 Description 5.1.1 Rear panel 1. Power supply: 100-240 VAC 2.5A 50/60HZ / FUSE F4A 250 VAC; internal, autoswitchable; 110W 2. 3G/HD/SD-SDI: inputs #1 to #4 3. S/PDIF: audio inputs #1 to #2 4.
  • Page 25 5.1.2 Front panel 5.1.2 Front panel 1. Front panel display: 4-line VFD 2. Menu scroll knob 3. Layer selection: - Frame: un-scaled layer for still frames - Layer A/B/C: scaled positionable layers for live sources - Logo 1/2: un-scaled, positionable layer for still logos 4.
  • Page 26 6.1 RCS² requirement 6. CONTROLLING THE SAPHYR The Saphyr can be controlled and operated either via the Front Panel, from your computer via the RCS², or via one of our Event Controllers. (Control of the Saphyr can also be integrated into automation and control systems, contact your local technical support for more details.) 6.1 RCS²...
  • Page 27 6.2 Connecting with the RCS² Enter the IP address of the device and then the remote port. Click on SET AS DEFAULT if you want the software to remenber your configuration. Click on Connect to start the connection. Once connected, you have access to this screen: In case of difficulties: - Verify that you are using the correct network cable and that it is free from defects.
  • Page 28 6.3 RCS² top menu 6.3 RCS² top menu 6.3.1 Setup The Setup page is where you will review and modify the device configuration, such as output resolutions, input settings, and more. 6.3.2 Edit The Edit mode is the place where you will manage preset creation. You will make input selections, manage your inputs, adjust the layer attributes such as size, position, effect, etc.

  • Page 29: Operating Mode

    7.1 Operating mode 7. OPERATING THE SAPHYR FROM THE RCS² 7.1 Operating mode Before you start setting up your Saphyr for the first time, take some time to think about how you will be using it. The Saphyr offers a choice of two operating modes, which results in a versatile video production tool for live event staging and fixed installation applications.

  • Page 30: Preset Mode

    7.2.2 Audio Matrix mode This mode turns your Saphyr into a true 10 x 2 scaled matrix, while preserving seamless switching capabilities. Program 1 and Program 2 outputs can be set to different resolutions and rates. Switching between any of the inputs can be done with the various effects (Cut, Fade, Slides…) and synchronized on both outputs.

  • Page 31: Freeze Mode

    7.2.3 Screens 7.2.4 Preview Into the PREVIEW section, you have the possibility to choose your PREVIEW mode: Click on Mosaic to have a Mosaic Preview of all your inputs. Click on Preview to simply have the standard Preview with all layer size and position. Remember that only 1 layer at the time can be display on the Preview.
  • Page 32 7.2.6 Output management 7.2.6 Output management Into the output section, you will be able to manage your output resolutions, formats, sync types, test patterns, etc. On the SETUP > OUTPUT TAB, the following screen will appear: A short summary of each output settings appears on the main page.
  • Page 33 7.2.7 Input management Custom format The device offers the possibility to create your own output format: Choose CVT mode (restricted settings) or FULL mode (full settings) and start to create your format by adjusting the Horizontal Vertical pixels, frame rates and reduced blanking. Click on CHECK to verify if your format is a valid signal.
  • Page 34 7.2.7 Input management - STATUS: format and size of the input, - CONTROL: Black: select Black to transform your input in a uniform color, Freeze: use this button to freeze the specific input, - EDID: choose the EDID for the selected plug. Under the HDCP section, you can: - Enable/disable the HDCP communication feature - Read the HDCP status, If the HDCP status says Active, this output connection is currently utilizing HDCP to...
  • Page 35 7.2.7 Intput management Under the ASPECT RATIO section: - ASPECT IN: forces a particular aspect ratio for the source. (5:4, 4:3, etc). This setting has no effect when set to native, - PREDEFINED CROP: choose a specific cropped ratio if you use a source with black bands on top/bottom or left/right, - ASPECT OUT: define the way the image will be displayed into a layer (full screen, centered, cropped or 1:1),...

  • Page 36: Invert Button

    7.2.8 Logo management Keying setup can be done either by setting directly color references and tolerances or by using the color grab assistant. - INVERT BUTTON: at any time you can choose to invert the actual keying using this button. DSK TITLING: after your keying, the DSK titling feature allows you to play with the transparency of your deleted pixels.
  • Page 37 7.2.9 Video out Select the area you want to save using the adjustable white square. Once it is ok, simply click on execute to save the logo. How to save a frame: Choose first Program or Preview, click on FREEZE if you want to freeze your output.
  • Page 38 7.2.10 Audio management 7.2.10 Audio management The audio section permits the management of level, balance, and other audio settings for each input. Before modifying the audio settings, be sure to check the audio input mapping. Each video input has one audio source mapped to it.
  • Page 39 Depending on the device you will use after the analog way device, adjust carefully the analog gain. Basically, for a 0 level, the default value is 4 dBu.

  • Page 40: Lcd Brightness

    7.2.11 Service management 7.2.11 Service management Into the service section, you will find tools to warn you if the unit has a problem. Under TEMPERATURE, there is the alarm tab. If any fan FPGA or board are faulty, it will be displayed. TECHNICAL SUPPORT: Display the different technical support contacts depending on your area.
  • Page 41 7.3.1 Layer management 7.3 Edit 7.3.1 Layer management When you enter into the Edit menu, you will encounter by default this window. On this example, we have the Screen 1 Program and the Screen 1 Preview. The following example can be applied for any other output configurations.
  • Page 42 7.3.2 Layer adjustments In this example, 3 inputs are affected to 3 layers into the Screen 1 Preview. The TAKE button on the bottom right side allows sending your configuration, made on the Preview screen, to the Program screen. With each press of the TAKE button, the Preview screen is transitioned to the Program screen. By default, PRESET TOGGLE mode is disabled.
  • Page 43 7.3.3 Effects Position/Size Adjust the size horizontally (X) or vertically (Y), then adjust the width and the height of your layer. You can use the cursor or directly enter a value. To keep the aspect ratio by using the cursor, please enable the KEEP ASPECT RATIO button.

  • Page 44: Clear Button

    7.3.4 Background frame Layer layout The layer layout gives you access to several predefined layouts with 3, 2 or 1 PIP already sized and placed into the output. It can help you to quickly set up 3 PIPs side by side for example. (Number of layers depends on the used mode.) Once clicking on the layout button, you have access to the presets with 3, 2, 1 PIPs or all layouts.

  • Page 45: Mirror Button

    7.3.5 Preset load and save management - KEEP ASPECT RATIO BUTTON: enabling this feature will keep the layer aspect ratio during resizing, - WIREFRAME MODE: allows to enable/disable the layer thumbnails on your RCS², - SHOW LAYER OUT OF SCREEN: enable/disable the possibility to display a layer out of the screen into the RCS², - TRAP LAYERS ON SCREEN:...

  • Page 46: Reset Button

    7.3.5 Preset load and save management Load a preset To recall a previously saved preset, click the Load button (on the right side of each screen) and select a preset to load. Reset button You can reset a screen using the reset button. Using that, all sizes and positions will be deleted. Your layers will be reset.
  • Page 47 7.4 Live 7.4 Live The Live mode is designed for easy live operation of the device after you have created some presets. On the right, you will find all your saved presets under the tab called “MASTER MEMORIES”. A simple drag and drop on the screen will load your preset into the screen (Program or Preview).
  • Page 48 Use the loop button to load again your timeline when it’s finished. Take a look at the global time of your timeline thanks to the clock on the right of the toolbar. Note: To control the Saphyr, Analog Way also provides Crestron and AMX modules. For more details, see appendices.

  • Page 49: Operating Through The Front Panel

    8.1.1 Menu navigation 8. OPERATING THROUGH THE FRONT PANEL 8.1 Front panel 8.1.1 Menu navigation To access the Saphyr menu, press the EXIT/MENU button in the control section. To highlight items in the menu which will appear on the VFD screen, turn the scroll knob left or right to the desired menu item.
  • Page 50 Analog Way engineers have developed a handy, user friendly way of identifying machine status on the front panel, via the use of color codes on the buttons of the machine. All new Analog Way machines use the same codes, for quick recognition of the status of any device of the range, at any given time.

  • Page 51: Output Status

    8.2.2 Input selection settings You can find several settings for each input (some settings are specific to some signal type): - INPUT STATUS: display the input status, - AUTOSET: launch an automatic setup on the inputs, FREEZE: freeze the input, - ACTIVE PLUG: choose the active plug of the input, - TYPE:...
  • Page 52 8.2.4 Output selection settings - HDCP DETECT: enable or not the HDCP detection on the output, - CENTERING PIC: display the centering test pattern, - TEST PATTERN: choose to display one of the available test pattern. All changes have to be validated by pressing the ENTER button in order to be saved NOTE: The output status can provide you all information about the output in real time.
  • Page 53 8.2.8 How to use the Mosaic 8.2.8 How to use the Mosaic Preview Information Availability feature Name of input Displaying (Green: Preview - Red: Main - Grey: No source) Resolution if recognized input Line frequency if recognized input The Mosaic Preview displays all inputs on HDCP one screen with live information about the Keying...

  • Page 54: Settings Available

    8.2.10 Working with layers functions 8.2.10 Working with layers functions Once a source is assigned to a layer, you will have access to some layer settings in the Layer menu or directly by pressing the layer button. The settings available depend on the layer selected: - Layer adjusts: set up layer size and position, - Layer zoom:...
  • Page 55 8.2.12 Layer adjustment menu • TAKE 2 - shot: Case #2 - There are enough scalers for making a transition - All inputs are locked on to scalers before the TAKE - There are no constraints for closing during the TAKE - All the necessary closing transitions are performed to free occupied scalers and then the Saphyr performs all openings (for example, when a frame or a logo needs to be changed, except with Cut effect).
  • Page 56 8.2.13 Layers with transitions & borders - WIPE: • Numerous wipes can be selected horizontal and vertical, from the center or outside, in circle, Zoom in and out, • Horizontal: from left, center -or- vertical: from up, down, center, - SLIDE: •...
  • Page 57 8.2.14 Capturing frames - BORDER: The border has to be setting up in the Layer Menu: Press Layer# button > go in border menu > select and set your border with color and size Press TAKE to view the result on the Program screen. NO BORDER EDGE BORDER SHADOW BORDER (4 possible orientations)
  • Page 58 8.2.15 Working with frames Attempting to use a frame at a different resolution will result in a partial frame display or a frame which does not fill the screen. During the capture, the output is outlined by a white border and includes the pixels into the white rectangle. 8.2.15 Working with frames Frames are mainly used as backgrounds in a typical show or event setup, and can be recorded from any of the Saphyr 10 sources and called back at the press of a single button.
  • Page 59 8.2.19 Layer transitions & effects In the Layer Selection section, press the Layer A button. The button will start blinking. On your Preview screen, Layer A will appear as a color rectangle. The parameters of the layer will automatically appear on your Saphyr VFD menu screen.
  • Page 60 8.2.21 Capturing an animated logo NOTES: • The cut out color is only a visual tool to help identify the transparent areas of the logo. These colored re- gions will not be captured but later displayed as transparent area. • Capturing a “logo” is limited to a small percentage of the output resolution. To capture and display a full screen image, use the still “frame”.

  • Page 61: Analog Settings

    8.2.25 Creating presets In the sub-menu, choose Save From Program or Save From Preview to determine which screen you want to memorize the preset from, then set the preset memory (#1 to #8) you wish to use as your “User Preset” (by default, the Saphyr will choose the next available preset in the Saphyr memory).
  • Page 62 8.2.28 Special features 8.2.28 Special features - DYNAMIC FIT (automatically activates the transparent background) • Automatic adjustment of the layer (Ratio) to fit the source image borders during a transition. Layer • Dynamic & Automatic adjustment of the layer to fit the source image borders (Black Stripe). Frame Image live - SMOOTH MOVE EFFECT...
  • Page 63 8.2.28 Special features • Background is removed and replaced by another source, • Title can be keyed (DSK) on Analog or Digital Sources. To use keying, first select a source in the desired layer: Layer button > source number button Then in the main menu, select the Keying/Titling menu.
  • Page 64 8.2.28 Special features For Chroma Key: Chroma Keying is used to key from a particular color. It produces a key which is most suitable for moving images and “weatherman” style applications. - Color grabber: Select Chroma Key menu > Select Color grabber menu Using a crosshair, you can select a particular hue based on what is on screen.
  • Page 65 8.3.1 Source Input selection 8.3 Settings in Matrix mode In all conditions, the second live layer (layer B) will have the keying functions enabled. You can not disable it. Please refer to the keying chapter to know how to adjust the keying settings. 8.3.1 Source Input selection Same as Mixer mode 8.3.2 Input selection settings...
  • Page 66 8.3.6 Working with native Matrix mode NOTE: The output status can provide you all information about the output in real time. This feature is parti- cularly needed when HDCP is used thanks to the HDCP status. All changes have to be validated by pressing the Ok button in order to be saved Video Out Display mode Presentation...
  • Page 67 8.3.8 Working with presets in Matrix mode The Saphyr has 4 scalers, to understand how your effect will be performed, you need to know how many scalers are used on your outputs. Don’t forget that you always need one free scaler to perform seamless transitions.
  • Page 68 8.3.9 Working with Mirror modes 3. Copy & H.pos Flip mode: Output #2 will be exactly the same as output #1 except the fact that the selected layer will have its H position flipped (standard Mirror mode). OUTPUT #1 OUTPUT #2 OUTPUT #2 OUTPUT #1 NOTES:...
  • Page 69 8.3.10 Working with frames/logos 8.3.10 Working with frames/logos refer to the chapter: The frame/logo can be memorized from Output #1 or #2. To record a frame/logo, please 8.2.14 Capturing frames and 8.2.20 Capturing logos in the Mixer mode. To use a frame/logo, refer to “Working with frame/logo”. As a source, each frame/logo can be used by both outputs, you just have to select the correct matrix# button first.

  • Page 70: Mixer Mode

    8.4 Menu tree 8.4 Menu tree MIXER MODE MATRIX MODE OUTPUT #1 OUTPUT #1 FORMAT:1920X1080 FORMAT:1920X1080 RATE: 50.00HZ RATE: 50.00HZ LOCK: INTERNAL LOCK: INTERNAL | PROG.|PRVW. |SCR#1 |SCR#2 ---------+---------+---------- ---------+----------+--------- Logo2 |Logo#1|Logo#8 Logo |Logo#1 |Logo#8 Logo1 |Logo#1|Logo#7 LayerA|Input1 |SDI 4 LayerC|SDI 1 |SDI 4 Frame |Frame1|Frame8 LayerB|DVI 1 |DVI 2...

  • Page 71: Output1 / Output2

    8.4 Menu tree MODE MIXER MODE MATRIX MODE OUTPUT1 / OUTPUT2 SYNC W/OUT1 (O1) (O1) Only for OUTPUT 2 (O2) For OUTPUT 2, only displayed when OUTPUT2 OUTPUT STATUS is not synchronized with OUTPUT1 (O3) Depending on the output format OUTPUT FORMAT (O2) (O4) Only for interlaced output format...

  • Page 72: Output Rate

    8.4 Menu tree FORMAT CUSTOM 1 FORMAT CUSTOM 2 FORMAT CUSTOM 3 FORMAT CUSTOM 4 FORMAT CUSTOM 5 FORMAT CUSTOM 6 FORMAT CUSTOM 7 FORMAT CUSTOM 8 FORMAT CUSTOM 9 FORMAT CUSTOM 10 OUTPUT RATE (O2) INTERNAL REF 23.97HZ (O3) (O3) 24HZ 25HZ...
  • Page 73 8.4 Menu tree SDI 3 SDI 4 VIDEO OUT FOLLOW X1 FOLLOW X2 GAMMA FLICKER FILTER (O4) ANALOG TYPE RGBS RGsB (SOG) RGB HV DVI TYPE AUTO RGB FULL (0-255) RGB LIMITED (16-235) DVI AS HDMI HDCP DETECTION CENTERING PIC TEST PATTERN V GREY SCALE H GREY SCALE...

  • Page 74: Video Out

    8.4 Menu tree VIDEO OUT CONFIG. MODE (V4) (V1) Displayed in matrix mode (V2) Depending on the output format RECORDING MODE (V3) Only for interlaced output format (V4) Only if the Config. mode is on recording OUTPUT 1 PLUG OUTPUT 2 PLUG CONNECTION (V1)(V4) SCREEN 1...
  • Page 75 8.4 Menu tree ADJUST (V4) H POS V POS H SIZE V SIZE GAMMA (V4) FLICKER FILTER (V3)(V4) SHARPNESS (V4) UNDER/OVERSCAN (V4) CENTERING PIC (V4) TEST PATTERN (V4) V GREY SCALE H GREY SCALE V COLOR BAR H COLOR BAR GRID SMPTE V-GRADIENT...
  • Page 76 8.4 Menu tree INPUTS CONFIG STATUS (I1) Displayed when input is a multiplug input. (I2) Displayed when a valid input signal is detected AUTOSET ALL (I3) Displayed when it is an analog plug and when the signal is computer HV type SYNC.
  • Page 77 8.4 Menu tree DVI-D HDMI ANALOG SETTINGS DVI-D SETTINGS SDI SETTINGS HDMI SETTINGS TYPE (I5) SDTV COMPOSITE AUTO (I6) SDTV YC (I6) NTSC VIDEO RGBS (I6) VIDEO RGsB (I6) SECAM VIDEO YUV (I6) COMPUTER SOG (I6) COMPUTER BW (I6) COMPUTER HV (I6) COMPUTER C TTL (I6)
  • Page 78 8.4 Menu tree GROUP C GROUP D LEFT CHANNEL RIGHT CHANNEL CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4 EDID (I8) EDID current preferred timing NONE 1920x1080 50Hz => Change 640X350 85HZ 640X400 85HZ 720X400 85HZ 640X480 59,94HZ 640X480 72HZ 640X480 75HZ 640X480 85HZ 720X480 59,94HZ...
  • Page 79 8.4 Menu tree 1280X768 60HZ RB 1280X768 60HZ 1280X768 75HZ 1280X768 85HZ 1280X768 120HZ RB 1280X800 50HZ 1280X800 60HZ RB 1280X800 60HZ 1280X800 75HZ 1280X800 85HZ 1280X800 120HZ RB 1280X960 50HZ 1280X960 60HZ 1280X960 85HZ 1280X960 120HZ RB 1280X1024 50HZ 1280X1024 60HZ 1280X1024 75HZ 1280X1024 85HZ...
  • Page 80 8.4 Menu tree 1600X1200 120HZ RB 1680X1050 50HZ 1680X1050 60HZ RB 1680X1050 60HZ 1680X1050 75HZ 1680X1050 85HZ 1680X1050 120HZ RB 1920X1080 23,976HZ 1920X1080 24HZ 1920X1080 25HZ 1920X1080 29,97HZ 1920X1080 30HZ 1920X1080 50HZ 1920X1080 59,94HZ 1920X1080 60HZ 1920X1200 50HZ 1920X1200 60HZ RB 2048X1080 23,976HZ 2048X1080 24HZ 2048X1080 25HZ...
  • Page 81 8.4 Menu tree BKGND + BR PIP (P2) 2 PIP H SPLIT (P2) 2 PIP V SPLIT (P2) 1L + 2H SPLIT (P2) 1R + 2H SPLIT (P2) 1T + 2V SPLIT (P2) 1B + 2V SPLIT (P2) 3H PIP (P2) 3 DIAG PIP (P2)
  • Page 82 8.4 Menu tree AUTO CENTERING IMAGE (G1) (G2) (G1) Displayed when a valid input is affected to a layer BLANKING ADJUST (G3) (G2) Displayed for computer analog signal, EDTV and HDTV analog video H POS (G3) Displayed for analog signal (G4) Displayed for computer analog signal V POS (G5) Displayed for video signal...
  • Page 83 8.4 Menu tree ASPECT OUT CENTERED FULL SCREEN CROPPED SHARPNESS MEDIUM HIGH COLORIMETRY BRIGHTNESS CONTRAST COLOR COMPONENT LEVEL (G3) GREEN BLUE LOW LATENCY (G6) 2:2 PULLDOWN (G7) 3:2 PULLDOWN (G8) RESET SETTINGS RESET THE PLUG TO ITS DEFAULT VALUES? ->NO [...]...
  • Page 84 8.4 Menu tree KEYING/TITLING TYPE (A4) (K1) Displayed when a valid input is affected to a layer (K2) Only displayed for Type = Luma key or Lumakey NONE +Titling (K3) Only displayed for Type = chroma key or chromakey LUMAKEY +Titling (K4) Only displayed for Type = Lumakey +Titling or CHROMAKEY...

  • Page 85: Screen Settings

    8.4 Menu tree SCREEN SETTINGS SCREEN 1 SCREEN 2 BACKGROUND COLOR GREEN BLUE QUICK FRAME FRAME 1 FRAME 2 FRAME 3 FRAME 4 FRAME 5 FRAME 6 FRAME 7 FRAME 8 AUTO TAKE PRESET TOGGLE [...]...
  • Page 86 8.4 Menu tree LAYER (Y1) LAYER COPY MODE (Y2) (Y1) Displayed when a valid input is affected to a layer NO COPY (Y2) Only displayed in matrix mode (Y3) Not available for frame and logos CLONE MODE (Y4) Only slide and wipe (Y5) Only wipe COPY &...
  • Page 87 8.4 Menu tree ADJUST H SIZE V SIZE TRANSPARENCY COLOR OPENING EFFECT CLOSING EFFECT TYPE CLEAN CUT (Y3) FADE SLIDE WIPE DIRECTION LEFT TO RIGHT (Y4) RIGHT TO LEFT (Y4) BOTTOM TO TOP (Y4) TOP TO BOTTOM (Y4) VERTICAL FROM CENTER (Y5) HORIZONTAL FROM CENTER (Y6)
  • Page 88 8.4 Menu tree LOGOS/FRAMES CAPTURE SOURCE (P1) (P1) Matrix mode only (P2) Displayed depending on the switcher mode PROGRAM (P2) (P3) Only displayed with a valid preset (F1) Displayed in mixer mode without mosaic PREVIEW (P2) preview and in matrix mode (F2) Displayed in mixer mode without mosaic SCREEN 1 (P3)
  • Page 89 8.4 Menu tree TOLER. L BLACK L WHITE MANUAL SETTING R KEY G KEY B KEY TOLER. L BLACK L WHITE CUT OUT COLOR (F6) RECORDING TIME (F7) STORE LOGO 1 (F8) LOGO 2 (F8) LOGO 3 [EMPTY] (F1)(F8) LOGO 4 [EMPTY] (F1)(F8) LOGO 5 [EMPTY] (F1)(F8)

  • Page 90: Audio Mode

    8.4 Menu tree AUDIO AUDIO MODE (A1) Displayed if the audio mode is different of “no audio” NO AUDIO (A2) Displayed if the audio mode is “routing mode” (A3) Displayed if the audio mode is “Preset mode” PRESET MODE (A4) Displayed if the switcher is on mixer mode (A5) Displayed if the switcher is on matrix mode ROUTING MODE (A6) Displayed if the audio input is analog...
  • Page 91 8.4 Menu tree OUTPUT 1 (A2) OUPUT 2 (A2) MAIN AUDIO (A3)(A4) PRELIST AUDIO (A3)(A4) OUT1 MAIN (A3)(A5) OUT2 MAIN (A3)(A5) PRESETMODE (A3) BREAKAWAY TOP LAYER FOLLOW MASTER MUTE STEREO ANALOG LEVEL MASTER VOLUME BALANCE SOURCE NONE INPUT 1 INPUT 2 INPUT 3 INPUT 4 HDMI 1...
  • Page 92 8.4 Menu tree AUDIO DELAY (A7) OUT1 PRELIST (A3)(A5) OUT2 PRELIST (A3)(A5) SOURCE NONE INPUT 1 INPUT 2 INPUT 3 INPUT 4 HDMI 1 HDMI 2 SDI 1 SDI 2 SDI 3 SDI 4 LEVEL BALANCE CONTROL VERSIONS VERS: 1.0.0 VARIABLE SET : 1 -------------------- CALIMERO...
  • Page 93 8.4 Menu tree CONNECTION (C1) Only displayed in UDP (C2) Displayed for User1, User2, User3 and User4 RS232 / LAN (C3) Displayed if the effect type is not cut or fade (C4) Displayed if at least one custom format is not valid RS232 (C5) Displayed if the custom format is valid (C6) Displayed if no custom formats are valid.
  • Page 94 8.4 Menu tree STANDBY BAUD RATE SET MESSAGE ON SET MESSAGE OFF CLEAR MESSAGE ON CLEAR MESSAGE OFF STANDBY DATE/TIME YEAR MONTH HOUR MINUTE SECOND HDCP SUMMARY IN1 DVI-D: IDLE IN2 DVI-D: IDLE IN3 DVI-D: IDLE IN3 HDMI: IDLE IN4 DVI-D: IDLE IN4 HDMI: IDLE IN5 HDMI: IDLE IN6 HDMI: IDLE...
  • Page 95 8.4 Menu tree MATRIX TK MODE TAKE BOTH TAKE CUR.SCREEN PROG. KEYS FADE USER 1 USER 2 USER 3 USER 4 TYPE (C2) DIRECTION (C2)(C3) EFFECT DURATION LCD BRIGHTNESS KEY BRIGHTNESS RESET/ERASE RESET LAYERS RESET THE LAYERS POSITION AND SIZE? ->NO ERASE MEMORIES ERASE ALL THE...

  • Page 96: Tech Support

    8.4 Menu tree COMPUT.CUSTOM4 (C5) COMPUT.CUSTOM5 (C5) COMPUT.CUSTOM6 (C5) COMPUT.CUSTOM7 (C5) COMPUT.CUSTOM8 (C5) COMPUT.CUSTOM9 (C5) COMPUT.CUSTOM10 (C5) EMPTY (C6) DEFAULT VALUES RESET THE DEVICE TO ITS DEFAULT VALUES? ->NO TECH. SUPPORT THE AMERICAS TECHSUPPORT@ANALOGWAYUSA.COM TEL: +1 212 269 1902 --------------------- EUROPE, MIDDLE EAST AND AFRICA TECHSUPPORT@ANALOGWAY.COM TEL: +33 (0)1 81 89 08 76...

  • Page 97: Maintenance And Support

    9. 1 Dashboard (RCS²) 9. MAINTENANCE AND SUPPORT 9.1 Dashboard (RCS²) On the RCS², you have access to a chart with general information on the unit. Please click on the Dashboard button: On this chart, you will find under the INFO tab, the Device name, the Serial number of your product, the actual firmware and the software version of the RCS².

  • Page 98: Applications Note And Tips

    The Saphyr is fully HDCP compliant, meaning that you will be able to use the Saphyr to accept HDCP protected sources and route them to any HDCP protected outputs. As Analog Way is a licenced HDCP adoptor, this also means that the Saphyr is prevented from displaying any HDCP protected images on any non-HDCP compliant outputs (as is the case for all licenced HDCP compliant devices).

  • Page 99: Warranty Conditions

    • Analog Way’s direct employees are solely authorized to make this determination. • Analog Way reserves the right to refuse for repair and service a product for which the warranty is void. • In no way shall Analog Way be responsible for direct or indirect loss of profit or consequential damages resulting from any defect in this product.

  • Page 100: Contact Information

    UNITED STATES SINGAPORE SINGAPORE The Americas Europe, Middle East & Africa Asia Pacific Analog Way SAS - Headquarters Analog Way Inc. Analog Way Pte Ltd Tel.: +33 (0)1 81 89 08 60 Tel.: +1 212 269 1902 Tel.: +65 6292 5800...
  • Page 101 13.1 Crestron 2 & 3 series 13. APPENDICES 13.1 Crestron 2 & 3 series Midra™ Driver Using this driver, software developers and integrators can easily provide powerful solutions for remotely controlling any Midra™ series Switchers through Crestron 2-series or 3-series Control Systems®. The package includes: - The precompiled driver modules that can be used for recalling presets, selecting source inputs, changing PIP content, configuring audio inputs and outputs…,...
  • Page 103 Follow us SPX450-03/31/2014 Pictures and drawings non-contractual. Specifications subject to change without prior notice.
