Analog way Pulse Quick Start Manual

QUICK START GUIDE
Thank you for choosing Analog Way
your powerful Dual Scaler Hi-Resolution Seamless Switcher within minutes. Discover the
and intuitive interface while configuring your first show, and unleash your creativity for a new experience in show and
Analog
event management by
What's in the box

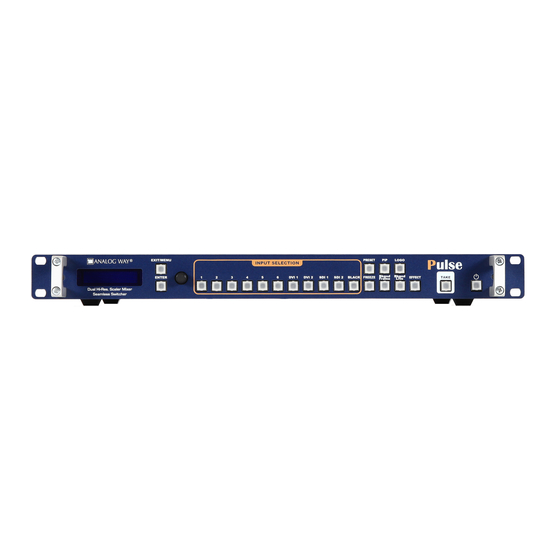

1 x Pulse (PLS300)
1 x Power supply cord
2 x DVI-I male to HD15 female and DVI-D female cable
1 x HD15 to 5 BNC cable
1 x Ethernet cross cable (for device update)
1 x Set of 3 audio 5 pin screw terminals
4 x M4x12mm screws
1 x RCS (Remote Control Software for PC only) *
1 x User Manual (PDF version) *
1 x Quick Start Guide *
* Download on our website:
Quick install and setup
Getting started:
You may wish to reset the unit to factory settings to get started.
Go to: Menu -- > Control -- > Default Values -- >
1. Select the Output resolution that matches the native
resolution of your display. You will next be prompted to
choose enable follow mode if desired and output rate.
Menu -- > Output -- > Output format -- > 1024x768 -- >
Internal Ref -- > 60 Hz.
2.  I nputscanbeconfiguredautomaticallyusingtheAuto Set
All function.
Menu -- > Intputs -- > AutoSet
It will scan each input and detect the sync type that is
plugged in. You can still do an Autoset or manual setup
per input.
The Pulse has 4 layers available called:
FRAME], [BACKGROUND
layer will obscure your view other layers below.
3. To display a source, Select the
layer (it will begin to blink) then, select a source (it will
also blink). Press [TAKE]
preview to program output.
There will always be a layer selected (blinking) and a source
selected (blinking) to the selected layer (blinking). To view on
preview or change the contents of a different layer, simply select
it. Only 1 layer can be seen on the preview at a time.
and the Pulse. By following these simple steps, you will be able to setup and use
Way.
www.analogway.com
Yes.
All.
[BACKGROUND
LIVE], [PIP] and [LOGO]. Each
[BACKGROUND LIVE]
to transition your source from
WARNING !
If required, front handles of the device can be dismantled,
but with caution.
The original screws removed must not be reintroduced to
their location without handles in place.
Substantial damages can occur, including risk of elec-
tric shock from the mains voltage.
Only M4x12mm screws can be used.
(They are supplied with the unit)
4. To display a PIP, select the PIP layer (it will begin to blink)
then select your source (it will also blink). Press
display the PIP on program output.
To see the layer beneath, you will need to clear or move the
layers that are on top.
5. To clear the PIP or any other layer, select the layer (it will
blink) then, select [BLACK]. Press
layer from the program output.
*TIP* If you would like the Program and Preview to toggle/
flipflop during each Take, enable this feature by going to
Menu -- > Control -- > Preset
Toggle.
Once enabled, everything on the Program output will become
the Preview during each Take.
6. To display a logo or frame (framestore) follow the steps
on page 4.
See the next page which describes the button lighting color
code and other front panel features.
PLS300 can be used to display:
- sources seamlessly switched in the Background Live layer.
- 1 PIP and 1 Logo over the Background Live layer.
- 2 PIPs and 1 Logo over a Background Frame by resizing the
Background Live layer.
IMPORTANT: Simply selecting a menu item will not set it to
that value. Be sure to press the ENTER button when para-
metering the menu items.
Pulse - Ref. PLS300
Pulse extensive capabilities
[TAKE]
[TAKE] to remove the
to
