4-6. DISPLAY OUTPUT
The SMART CUT 2

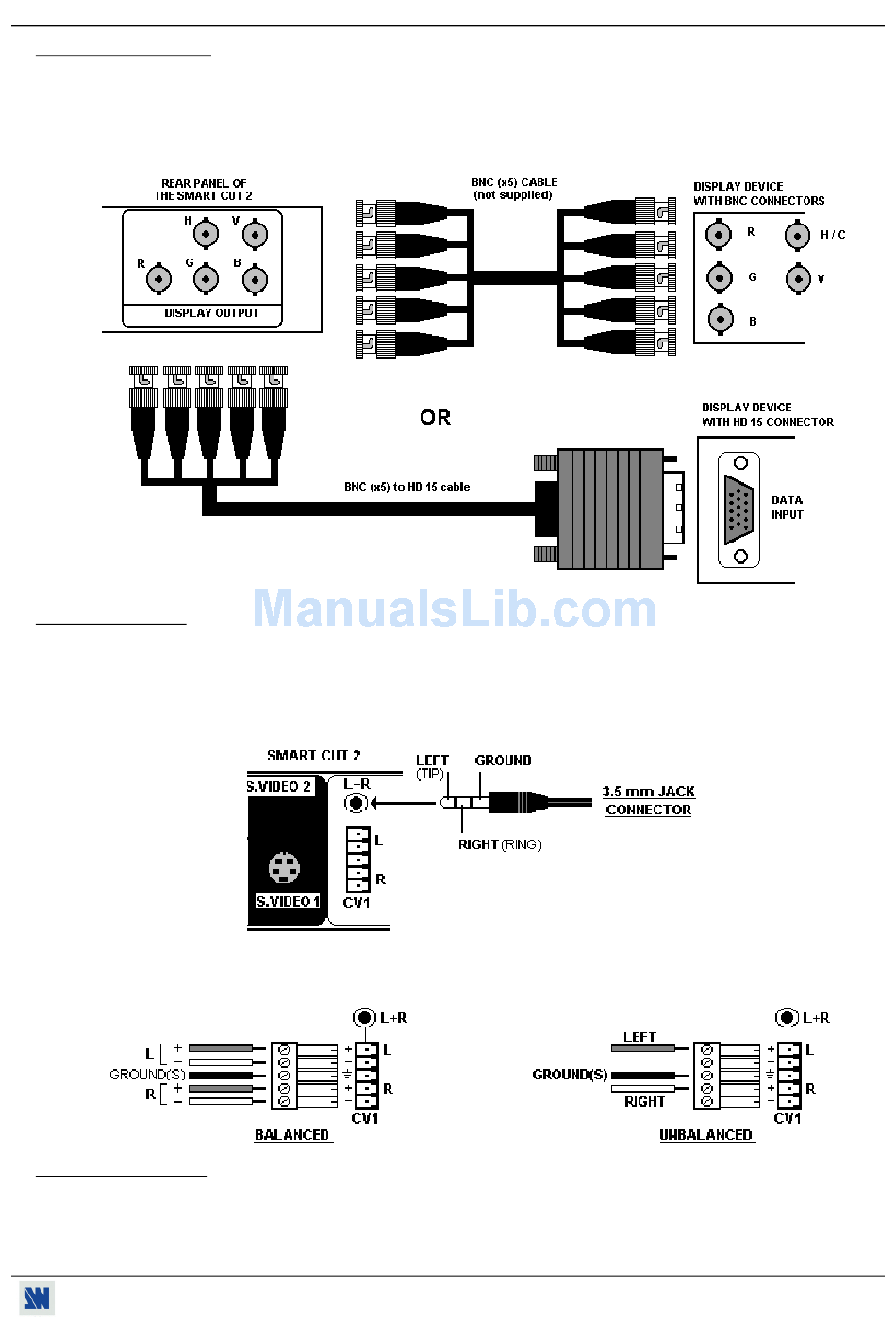

connector : use the supplied BNC to HD 15 cable (See connection schematic below).
™
The SMART CUT 2
your display device only accepts Composite Sync., connect the C.SYNC. cable to the H BNC of the SMART CUT 2
and select COMP (Composite Sync.) in the LCD menu # 2-1.
4-7. AUDIO INPUTS
Each audio inputs have a 3.5 mm jack connector and/or a 5-pins MCO connector.
• 3.5 mm jack connector
The COMPUTER 1, COMPUTER 2, C.VIDEO 1 and S.VIDEO 1 inputs are equipped with this audio connector. This
connector allows to connect only UNBALANCED audio source. Connect your UNBALANCED audio sources as
follow:
• 5-pins MCO female connector
The C.VIDEO 1, C.VIDEO 2, S.VIDEO 1, S.VIDEO 2, and RGB/YUV inputs are equipped with this connector. This
connector allows to connect BALANCED or UNBALANCED audio inputs. Connect your audio sources as follow:
4-8. AUDIO OUTPUTS
The audio output is provided with a RCA(x2) connectors and a 5-pins MCO female connector. The RCA connectors allow
to connect only UNBALANCED audio systems, and the 5-pins MCO female connector allows to connect BALANCED or
UNBALANCED audio systems.
™
is equipped with a 5 BNC connectors output. If your display device is equipped with an HD 15
can provide an RGBHV (H & V Separate Sync.) or an RGB/S (Composite Sync.) output signal. If
