Summary of Contents for WisyCom MSR916

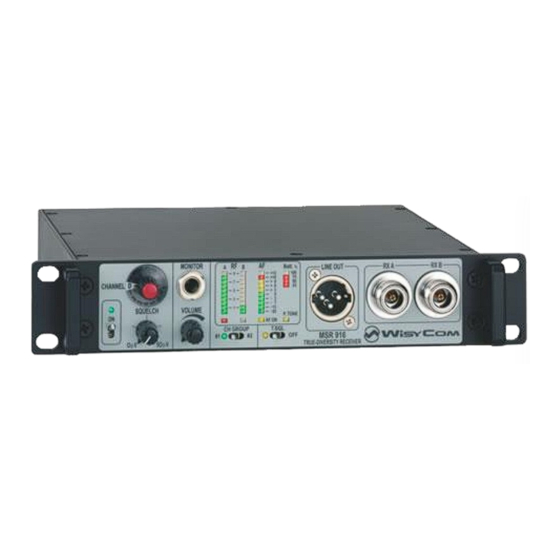

- Page 1 MSR916 User Manual True diversity Receiver Module SN: ________________ Rev. 01 Date: 26 November 2014...
-
Page 2: Safety Instruction
FEATURES Available in various ranges: VHF ⇒ 150 ÷ 250 MHz, UHF ⇒ 470 ÷ 880 MHz Wide pre-tuned switching-window: ⇒ 15 MHz in 140 ÷ 250 MHz range, ⇒ 15 MHz (VHF) ; 32 MHz (UHF) 16 switchable frequencies ... - Page 3 RONT ANEL ONTROL AND UNCTIONS ❶ ❷ ❸ ❹ ❺ ❻ ❼ ❽ ❾ ❿ ⓫ ⓬ ⓭ ⓮ ❶ REMOTE indication. The red Led lights is on when the remote control interface is active (optional, on request). ❷ CHANNEL switch (with back-light). ❸...
-
Page 4: Rear Panel
ANEL ⓯ ⓰ ⓱ ⓯ Connector for remote-control interface (type D25-F connector) Optional, on request. ⓰ Product Label reports the following information: Product code Serial number Compander (ENR or NR) Band limits Option ⓱ DC-input connector (XLR4-M type) Powering: 10.5 16 Vdc, 500 mA max. ... -
Page 5: Putting Into Operation
❺ (AF line output level) and adjust the audio gain on the transmitter in order to avoid clipping (never red levels on AF bar) NOTE: using Wisycom transmitter only : if the transmitter sends the pilot sub-carrier, the P.TONE indicator ⓮ turns on with yellow colour and the battery charger of the transmitter is shown on bar ❻... -
Page 6: Troubleshooting
Check RF level bar: if they shows no level or low level, try to decrease the squelch level If T.SQL is set to ON but the P.TONE indicator is OFF check on the transmitter’s configuration if the Wisycom pilot sub-carries is enabled change T.SQL to OFF check on the transmitter’s configuration if the Wisycom pilot... -
Page 7: Technical Specifications
Remote diversity function the MSR916 receiver, along with audio signal on the line-output, is signalling also the RSSI level. A Centralized Automatic Selector (i.e.: RDA41, suitable for 4 remote receivers) can use this voting information to use in any time select the best audio... - Page 8 Bar-graph meters RF field strengths (both “A” and “B” antennas at the same time ) AF output level (-20 ÷ +12 dBu). TX battery lifetime, 5 steps: 100%, 75%, 50%, 25%, 12% (the last Led blinks ). ...
- Page 9 OPTIONALS: AGN00 Groundplane antenna VHF/UHF AMB 05 Magnetic-base antenna, (with 5 m RG58 coax cable). CDC916 External 12 Vdc powering cable PSP 910-X4 - 100 ÷ 240 Vac mains-plug power supply. RCD 915 Remote control and monitoring interface (parallel type) UPK 100 Working frequencies user programming kit (Interface + software).
- Page 10 ECHANICAL RAWING Note: unit is mm...
- Page 12 • WISYCOM srl • Via Spin 156 • I-36060 Romano d’Ezzelino • Italy Tel. +39 -0424 -382605 • Fax +39 - 0424 – 382733 • www.wisycom.com • e-mail: sales@wisycom.com...
