Technical Specifications - WisyCom MPR50-IEM User Manual

• Frequency ranges
• Switchable channels
• Switching-window
• Frequencies
Programming Kit.
• Frequency error
• Temperature range
• Modulation
(SW selectable)
• Peak deviation
• "A" / "B" antenna in
• Antenna input imp.
• Sensitivity
• Co-channel rejection
• Adjacent chan. Sel.
• Spurious rec. Rej.
• IF image rejection
• Intermod. rejection
• IIP3
• Spurious emissions
• Noise Reduction
• AF bandwidth
• Frequency response
• Distortion
• SND/D ratio
• Stereo separation
• Display
• Powering
• Weight
• Headphone-output
• Battery life
NOTE [1]: RMS value, 22 Hz / 22 kHz, unweighted.
The MPR50-IEM receiver complies with ETSI specifications: ETS 300 422.
26

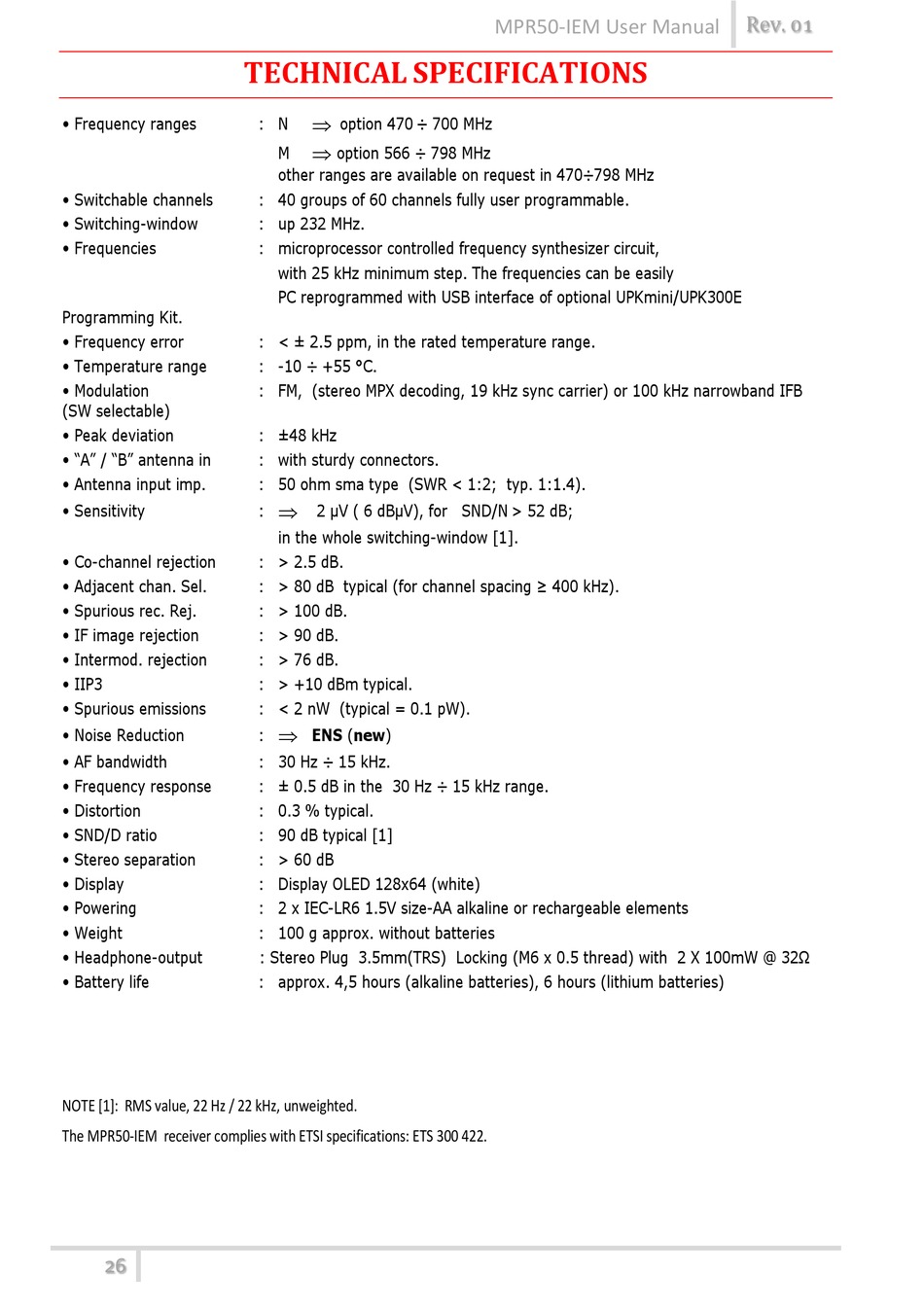

TECHNICAL SPECIFICATIONS


: N option 470 ÷ 700 MHz

M option 566 ÷ 798 MHz
other ranges are available on request in 470÷798 MHz
: 40 groups of 60 channels fully user programmable.
: up 232 MHz.
: microprocessor controlled frequency synthesizer circuit,
with 25 kHz minimum step. The frequencies can be easily
PC reprogrammed with USB interface of optional UPKmini/UPK300E
: < ± 2.5 ppm, in the rated temperature range.
: -10 ÷ +55 °C.
: FM, (stereo MPX decoding, 19 kHz sync carrier) or 100 kHz narrowband IFB
: ±48 kHz
: with sturdy connectors.
: 50 ohm sma type (SWR < 1:2; typ. 1:1.4).

: 2 µV ( 6 dBµV), for SND/N > 52 dB;
in the whole switching-window [1].
: > 2.5 dB.
: > 80 dB typical (for channel spacing ≥ 400 kHz).
: > 100 dB.
: > 90 dB.
: > 76 dB.
: > +10 dBm typical.
: < 2 nW (typical = 0.1 pW).

: ENS (new)
: 30 Hz ÷ 15 kHz.
: ± 0.5 dB in the 30 Hz ÷ 15 kHz range.
: 0.3 % typical.
: 90 dB typical [1]
: > 60 dB
: Display OLED 128x64 (white)
: 2 x IEC-LR6 1.5V size-AA alkaline or rechargeable elements
: 100 g approx. without batteries
: Stereo Plug 3.5mm(TRS) Locking (M6 x 0.5 thread) with 2 X 100mW @ 32Ω
: approx. 4,5 hours (alkaline batteries), 6 hours (lithium batteries)
MPR50-IEM User Manual
Rev. 01
