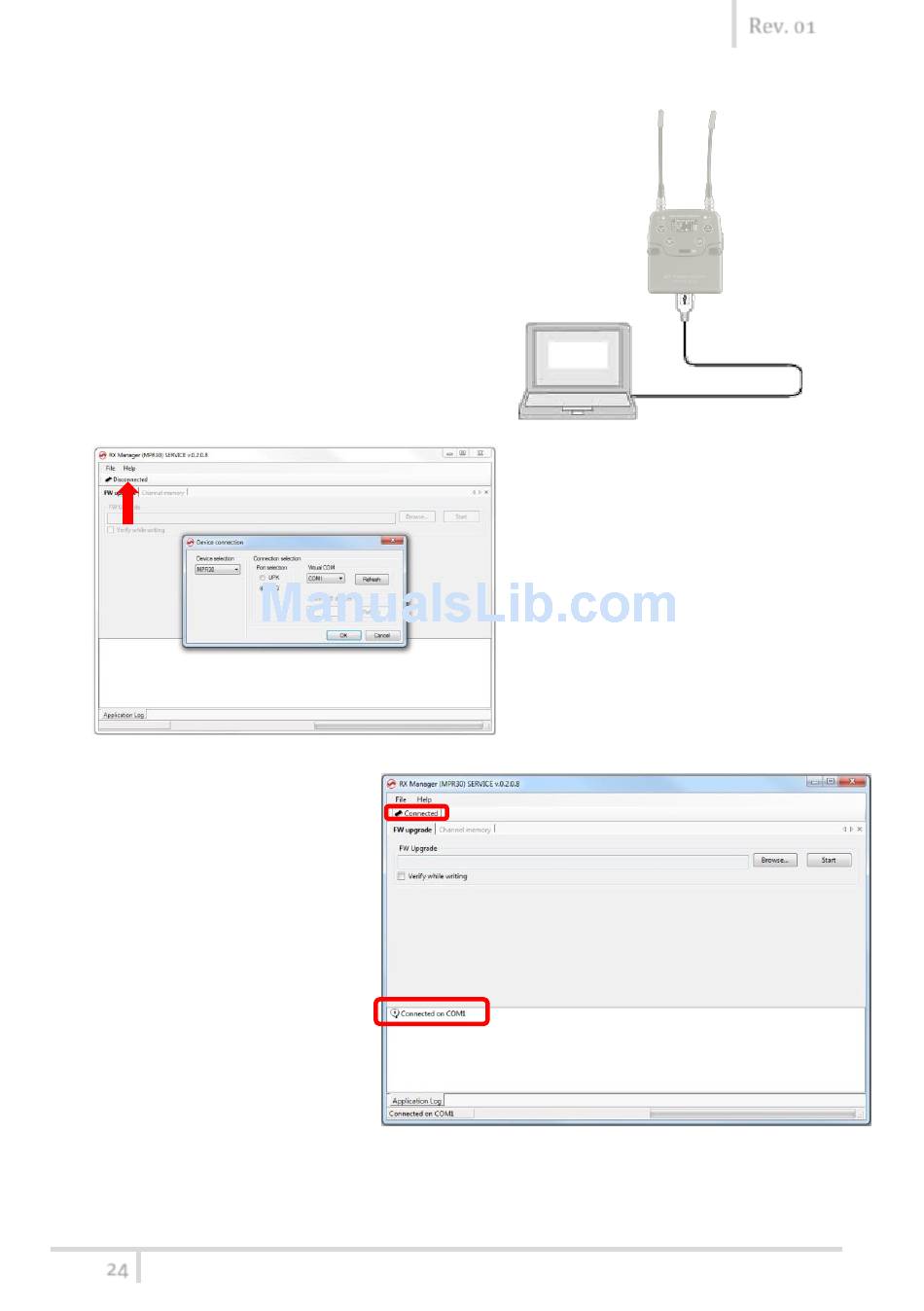

Instruction to connect MPR50 using USB cable:

In order to use the micro USB port to configure the
MPR50, it is necessary to install the MPR50 USB
driver (see How to install MPR50 USB driver)
1. Connect the MPR50 to the PC through the
micro USB interface using the USB cable
2. Check if the version of ENG RX Manager
installed in your PC is the latest version. If
not, uninstall the ENG RX Manager actives
in your PC and install the new version
3. Run ENG RX Manager
4. Power up the receiver MPR50
5. Push Disconnected button. On the Device
6. If the connection is ended
well, the Connected icon
is showed on the top of
the panel and "Connected
on COMx" is displayed on
the information panel
24
MPR50-IEM User Manual
connection windows select USB port
and verify that a COMx is selected on
the Virtual COM panel. If COMx is not
showed, push Refresh button and/or
try to disconnect and reconnect the
USB cable connected to the MPR50.
Then click OK.
