Altronix Maximal11DV Installation Manual page 8

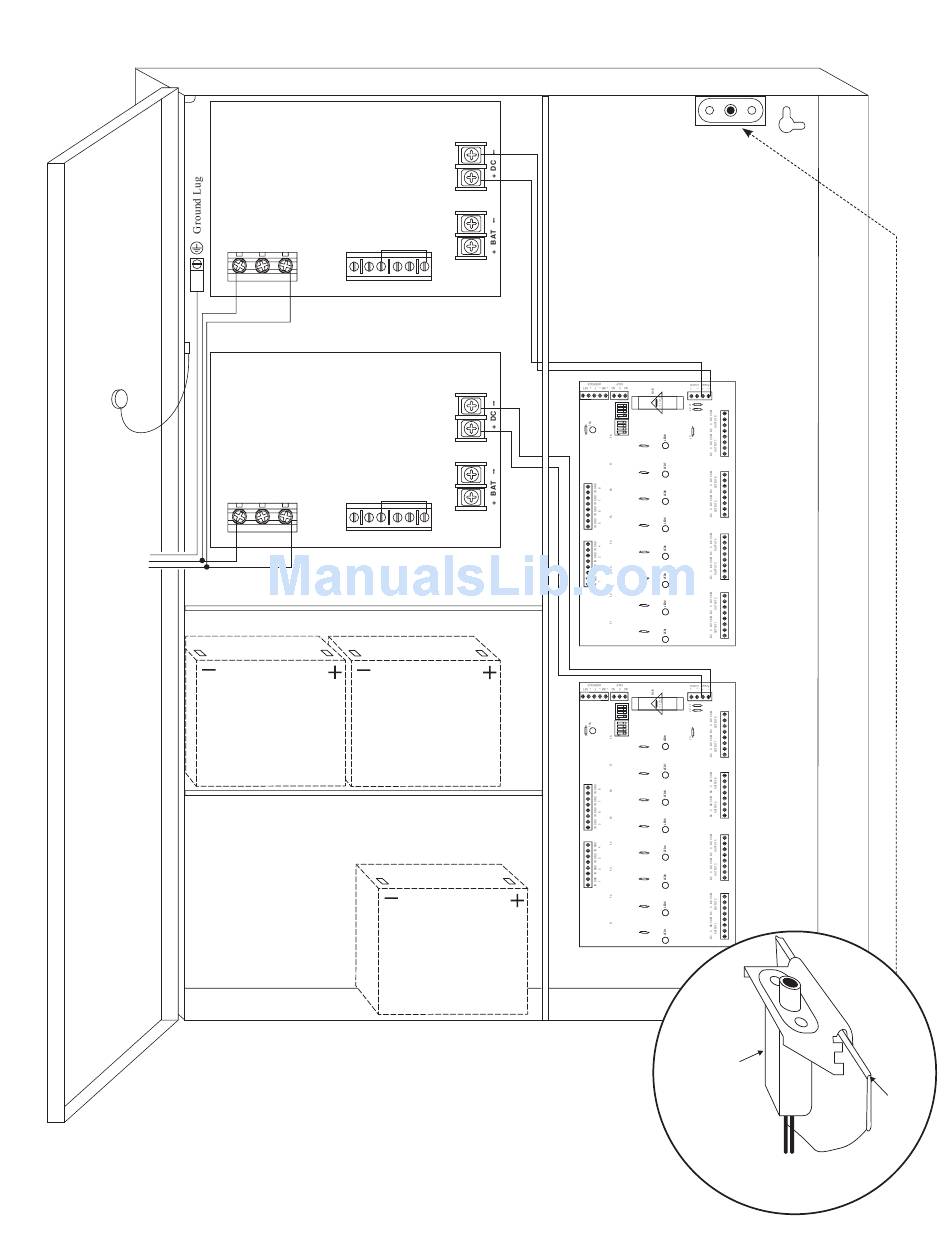

Fig. 3
Maximal11DV
Maximal33DV
Maximal55DV
Wire
Strap
(from
Enclosure
to Door)
220VAC
Input
50/60 Hz.
CAUTION: Optional rechargeable stand-by batteries must
match the power supply output voltage setting.
- 8 -
Power Supply Board
BAT FAIL
L G N
NC C NO
Line Neutral
Power Supply Board
BAT FAIL
L G N
NC C NO
Line Neutral
Optional Rechargeable Optional Rechargeable
Stand-by Battery*
*12VDC operation: For 12VDC operation
only a single battery is needed.
Connect red battery lead
to terminal marked
[+ BAT] and to the
[positive (+)] terminal
of the battery. Connect
black battery lead to
terminal marked [BAT -]
and to the [negative (-)]
terminal of the battery.
AC FAIL
NC C NO
AC FAIL
NC C NO
Stand-by Battery*
Optional Rechargeable
Stand-by Battery*
Maximal11DV/Maximal33DV/Maximal55DV/Maximal77DV/Maximal75DV Access Power Controllers (PTC)
Tamper Switch
Honeywell
Model 112
Fig. 3a
Tamper Switch
or equivalent
(Not Included)
to Access Control Panel
or U.L. Listed
Reporting Device
Enclosure
Edge of
Enclosure
