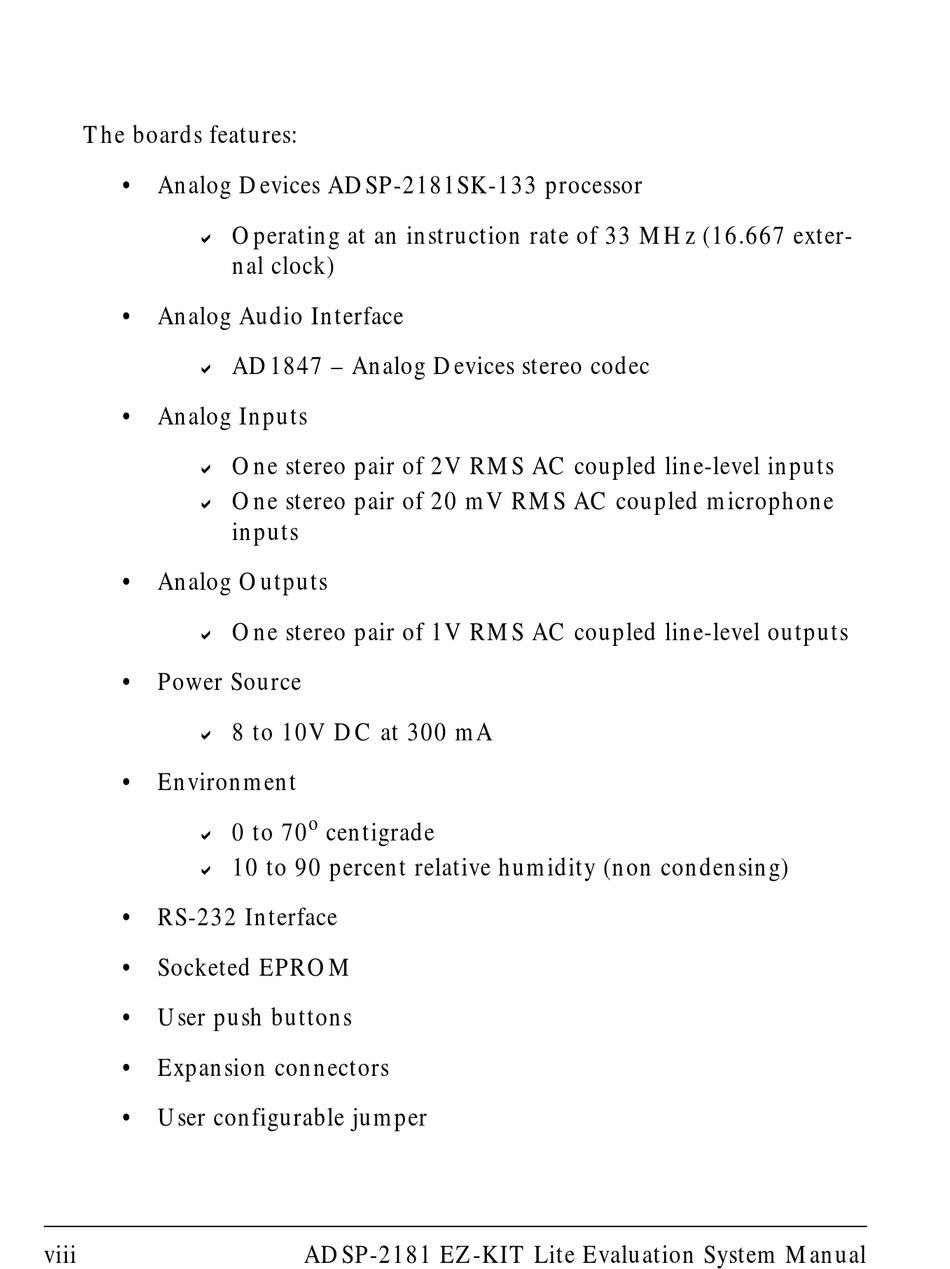

The boards features:
• Analog Devices ADSP-2181SK-133 processor
!
• Analog Audio Interface
!
• Analog Inputs
!
!
• Analog Outputs
!
• Power Source
!
• Environment
!
!
• RS-232 Interface
• Socketed EPROM
• User push buttons
• Expansion connectors
• User configurable jumper
viii
Operating at an instruction rate of 33 MHz (16.667 exter-
nal clock)
AD1847 – Analog Devices stereo codec
One stereo pair of 2V RMS AC coupled line-level inputs
One stereo pair of 20 mV RMS AC coupled microphone
inputs
One stereo pair of 1V RMS AC coupled line-level outputs
8 to 10V DC at 300 mA
o
0 to 70 centigrade
10 to 90 percent relative humidity (non condensing)
