Installation Tasks

Setting Up EZ-KIT Lite Hardware

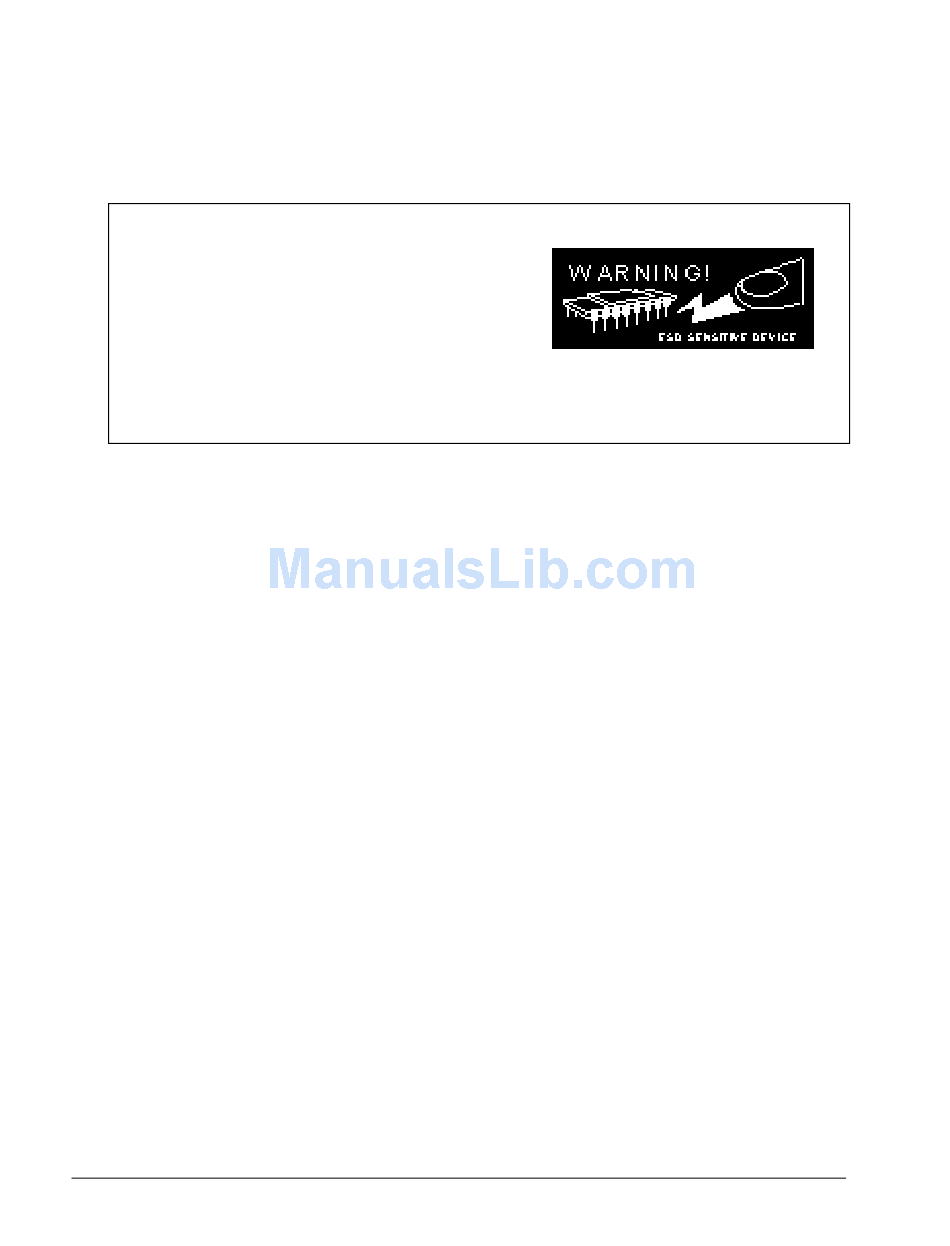

The EZ-KIT Lite evaluation system contains ESD
(electrostatic discharge) sensitive devices. Electro-
static charges readily accumulate on the human
body and equipment and can discharge without
detection. Permanent damage may occur on devices
subjected to high-energy discharges. Proper ESD
precautions are recommended to avoid performance
degradation or loss of functionality. Store unused
EZ-KIT Lite boards in the protective shipping
package.
The ADSP-2181 EZ-KIT Lite board is designed to run outside your per-
sonal computer as a stand-alone unit. You do not have to remove your
computer case.
To connect the EZ-KIT Lite board:
1. Remove the EZ-KIT Lite board from the package. Be careful when
handling the board to avoid the discharge of static electricity,
which may damage some components.
2. Connect the RS-232 cable to an available Comm Port on the PC
and to
J3
3. Plug the provided cord into a 120-Volt AC receptacle and plug the
connector at the other end of the cable into
board.
Visually verify that all of the LEDs light up briefly. The power
(green) LED remains on and
up, check the power connections.
1-4
on the ADSP-2181 evaluation board.
ADSP-2181 EZ-KIT Lite Evaluation System Manual
on the evaluation
J4
blinks. If the LED does not light
FL1
