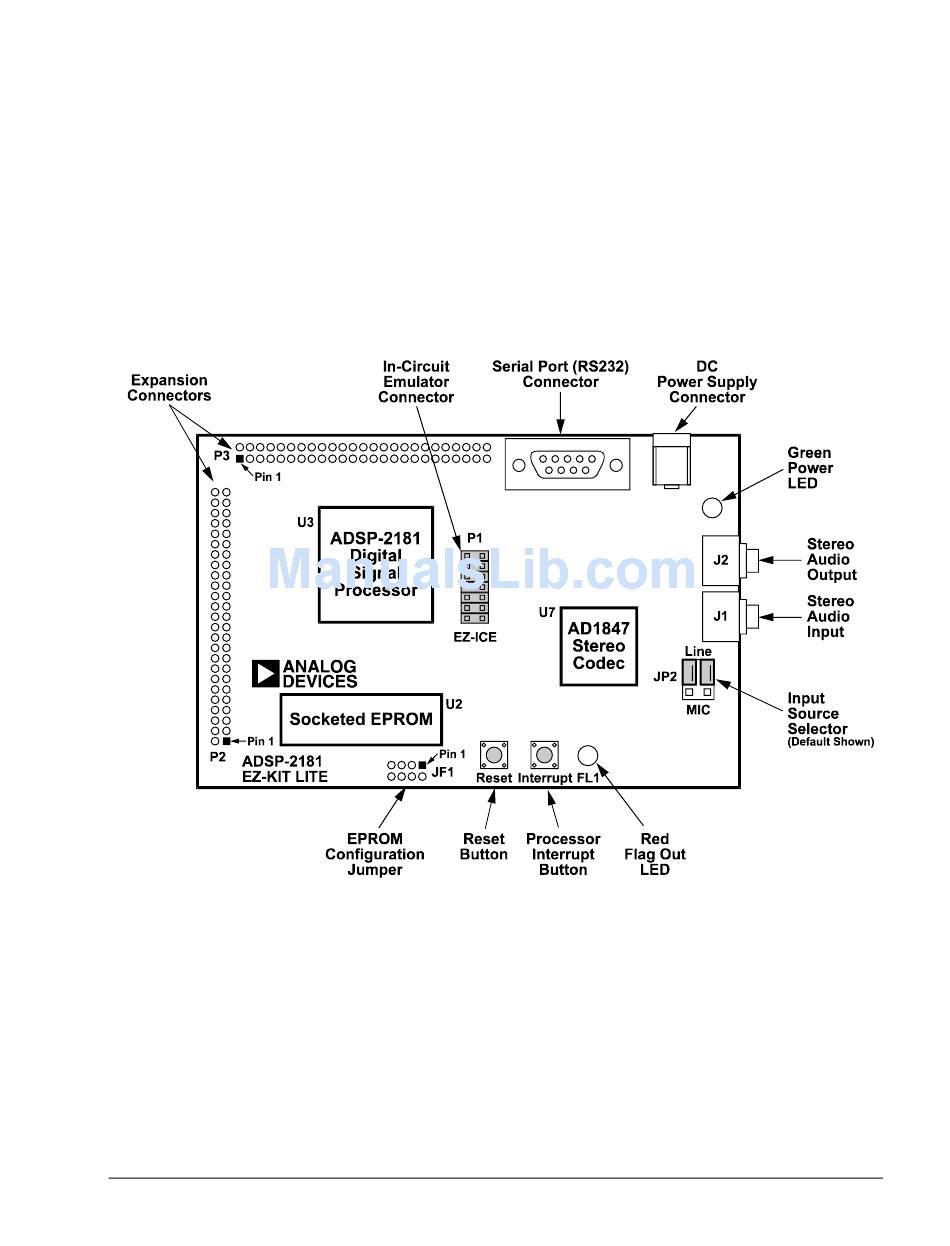

Figure 3-2
shows the layout of the EZ-KIT Lite board. This figure high-
lights the locations of the major components and connectors. Each of
these major components is described in the following sections.
Figure 3-2. EZ-KIT Lite Board Layout
ADSP-2181 EZ-KIT Lite Evaluation System Manual
EZ-KIT Hardware Reference
3-3
