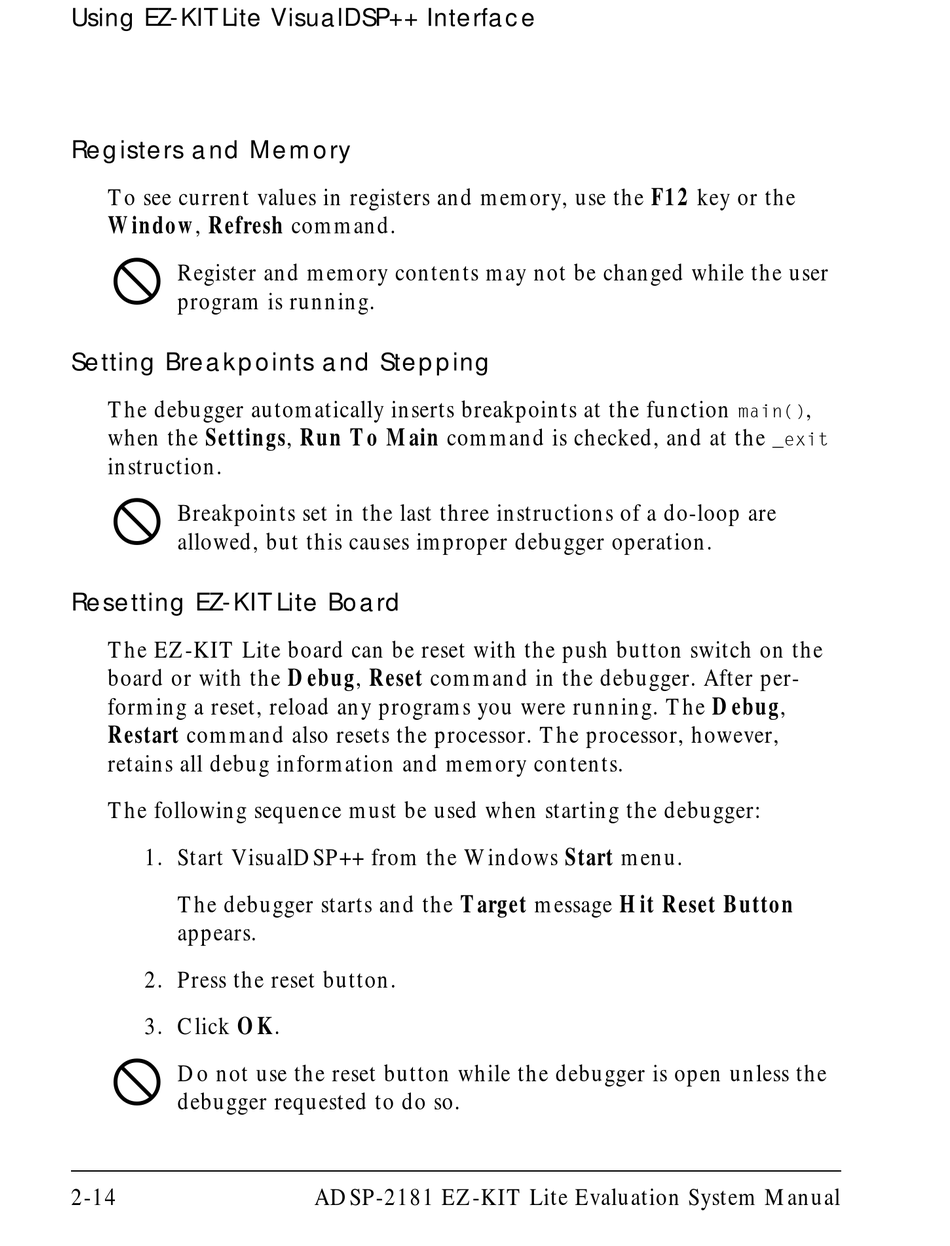

Using EZ-KIT Lite VisualDSP++ Interface

Registers and Memory

To see current values in registers and memory, use the F12 key or the
Window, Refresh command.
#
Register and memory contents may not be changed while the user
program is running.

Setting Breakpoints and Stepping

The debugger automatically inserts breakpoints at the function
when the Settings, Run To Main command is checked, and at the
instruction.
#
Breakpoints set in the last three instructions of a do-loop are
allowed, but this causes improper debugger operation.

Resetting EZ-KIT Lite Board

The EZ-KIT Lite board can be reset with the push button switch on the
board or with the Debug, Reset command in the debugger. After per-
forming a reset, reload any programs you were running. The Debug,
Restart command also resets the processor. The processor, however,
retains all debug information and memory contents.
The following sequence must be used when starting the debugger:
1. Start VisualDSP++ from the Windows Start menu.
The debugger starts and the Target message Hit Reset Button
appears.
2. Press the reset button.
3. Click OK.
#
Do not use the reset button while the debugger is open unless the
debugger requested to do so.
2-14 ADSP-2181 EZ-KIT Lite Evaluation System Manual
,
main()
_exit
