AD8333-EVALZ
BOARD LAYOUT

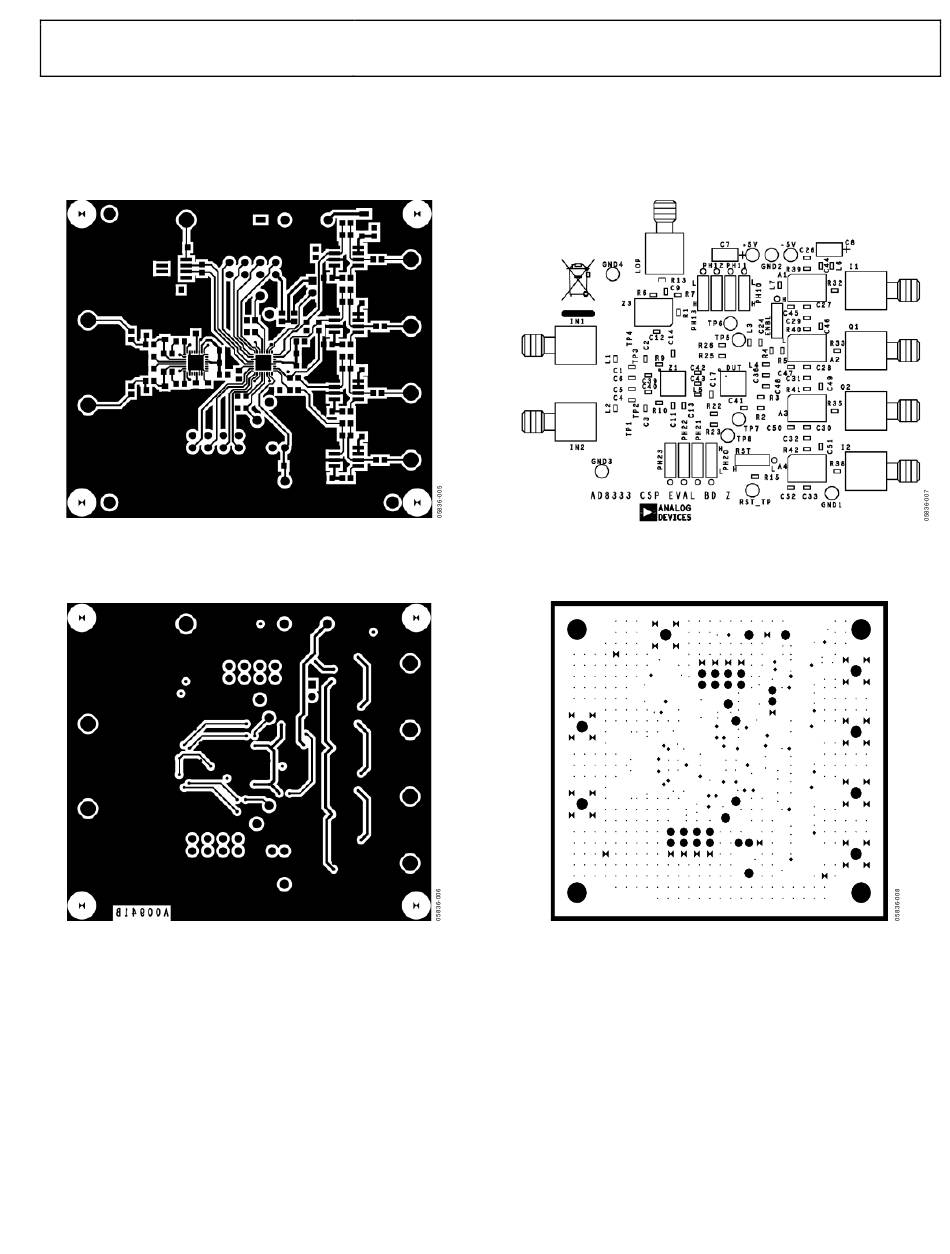

The AD8333 evaluation board has four layers. The interconnecting circuitry is located on the outer layers with the inner layers dedicated
as power and ground planes. Figure 5 through Figure 9 illustrate the copper patterns.
Figure 7. Component Side Silkscreen
Figure 5. Component Side Copper
Figure 6. Wiring Side Copper
Figure 8. Ground Plane
Rev. B | Page 7 of 12
