5.4 Installing the Electronics Housing
The distance between the electronics housing and a computer (via RS485 cable) can be up to 1200 m
(4000  feet).  This  allows  ample  distance  from  the  harsh  environment  where  the  sensing  head  is
mounted to a control room or pulpit where the computer is located.
For  reliable  performance  it  is  recommended  that  the  power  supply  be  no  more  than
60 m (200 feet) away!

Following  you  can  see  installation  examples  shown  with  two  representative  cable  types.  A  4‐wire
cable is used to wire the 24 VDC power supply and one output of the electronics housing. A coated
12‐wire cable is used to wire all inputs and outputs of the electronics housing.
Sometimes  in  cable  both  sets  of  twisted‐pair  wires  have  drain  wires  inside  their  insulation.  These
drain wires must be assembled and connected to the terminal labeled SHIELD (bare). Also connect the
earth ground to the SHIELD (bare) terminal. The following figure shows how to configure the drain
wires of both 4‐ and 12‐wire cables before connecting to the sensor and RS485/RS232 converter.
Attach to SHIELD
in electronics housing
To electronics housing
Attach to SHIELD
in electronics housing
To electronics housing
The complete wiring must have only one common earth ground point!

Cables  can  be  run  to  the  electronics  enclosure  through  conduit  or  fastened  using  the  a  compression
fitting. Once you run the cable into the enclosure, attach the color‐coded bare wires to the terminals.
Use  the  following  figure  (or  diagram  on  underside  of  lid)  as  a  wiring  guide.  Note  that  the  terminal
blocks in the electronics enclosure can be "popped" out for easy wire connections.
Marathon Series FA/FR
Twist braided shield and two drain wires from
the two twisted pairs together
12-wire cable
4-wire cable

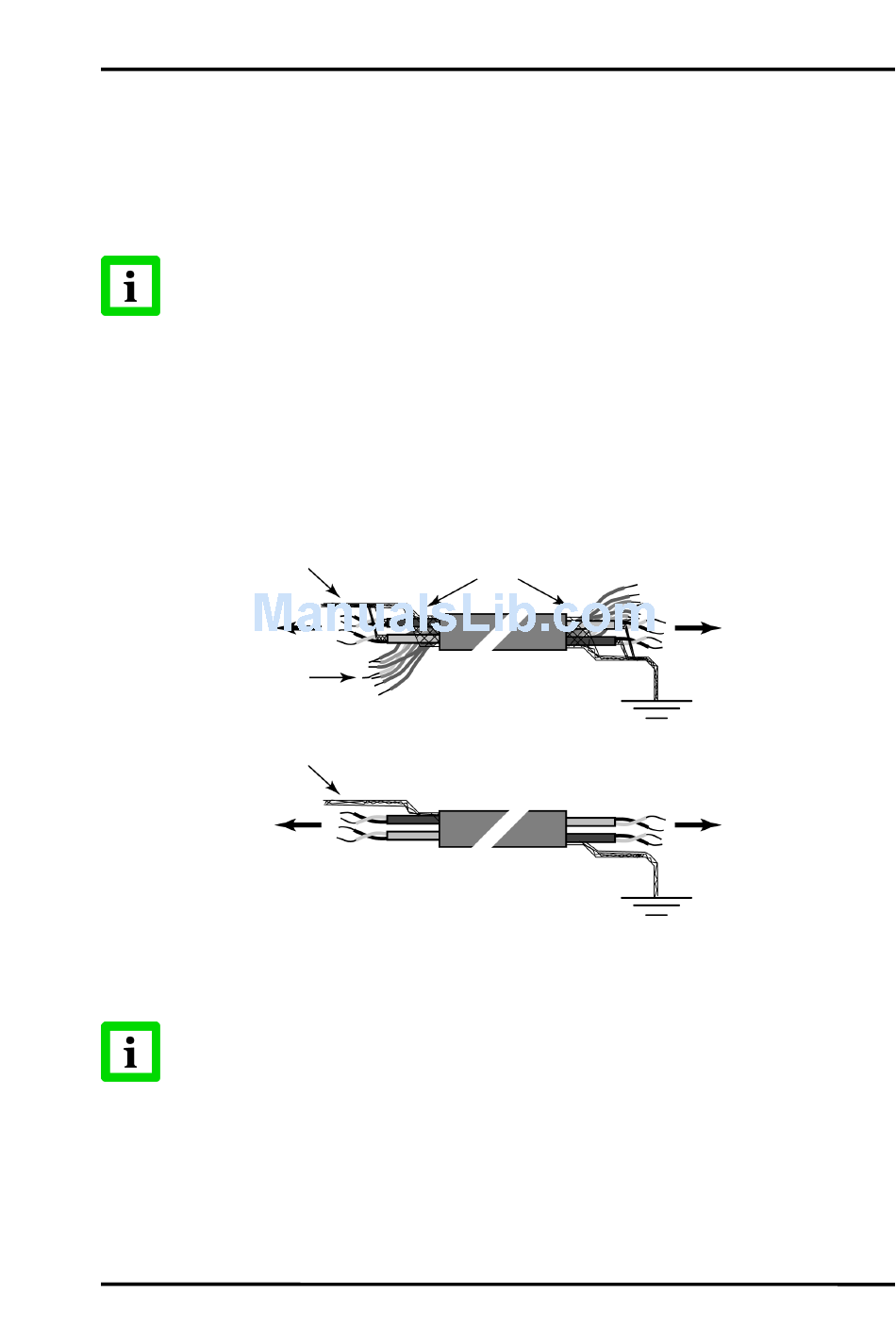

Figure 14: Configuring the Sensor Cable
Installation
to power supply,
to RS232/485 converter,
other inputs/outputs
Earth Ground
to power supply,
0/4 – 20 mA current output

Earth Ground
e.g.
e.g.
19
