Technical Data
3.5.1.2 Close Focus
Distance D to Object [mm]
D:S = 20:1 at focus point
Distance D to Object [mm]
D:S = 100:1 at focus point
Distance D to Object [mm]
D:S = 40:1 at focus point
10
[inch]
FA1A/FA2A CF1
[inch]
FA1B/FA1C CF1
[inch]
FA2B CF1

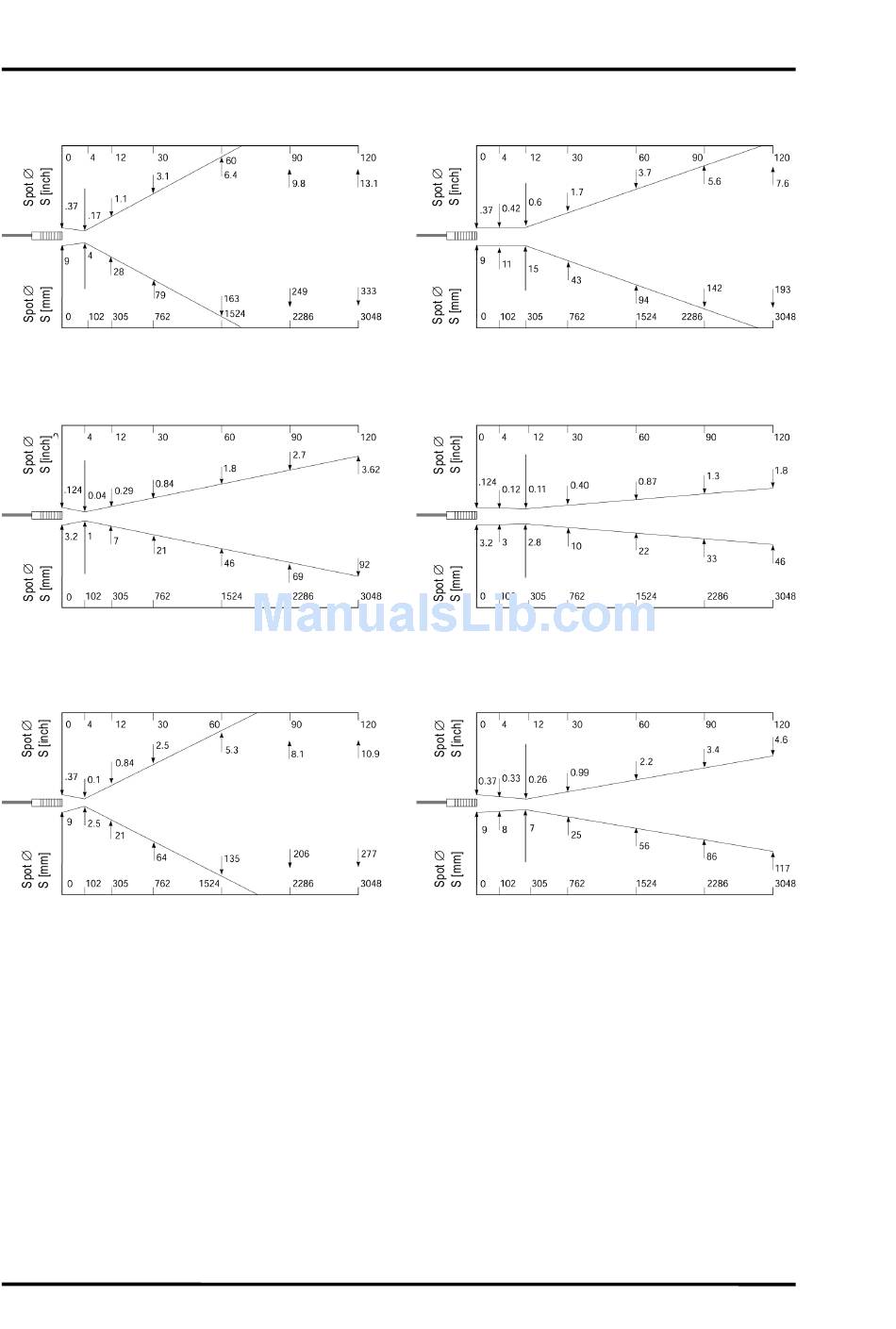

Figure 7: Close Focus Spot Size Charts for FA models
Distance D to Object [mm]
D:S = 20:1 at focus point
Distance D to Object [mm]
D:S = 100:1 at focus point
Distance D to Object [mm]
D:S = 40:1 at focus point
Marathon Series FA/FR
[inch]
FA1A/FA2A CF2
[inch]
FA1B/FA1C CF2
[inch]
FA2B CF2
