3.4 Dimensions
Mounting hole ∅ 5 mm (0.188)
Max. fastener head 8 mm (0.31)
Hole diameter: 21 mm (0.83)
Marathon Series FA/FR
Fiber Optic Cable
min. bend radius

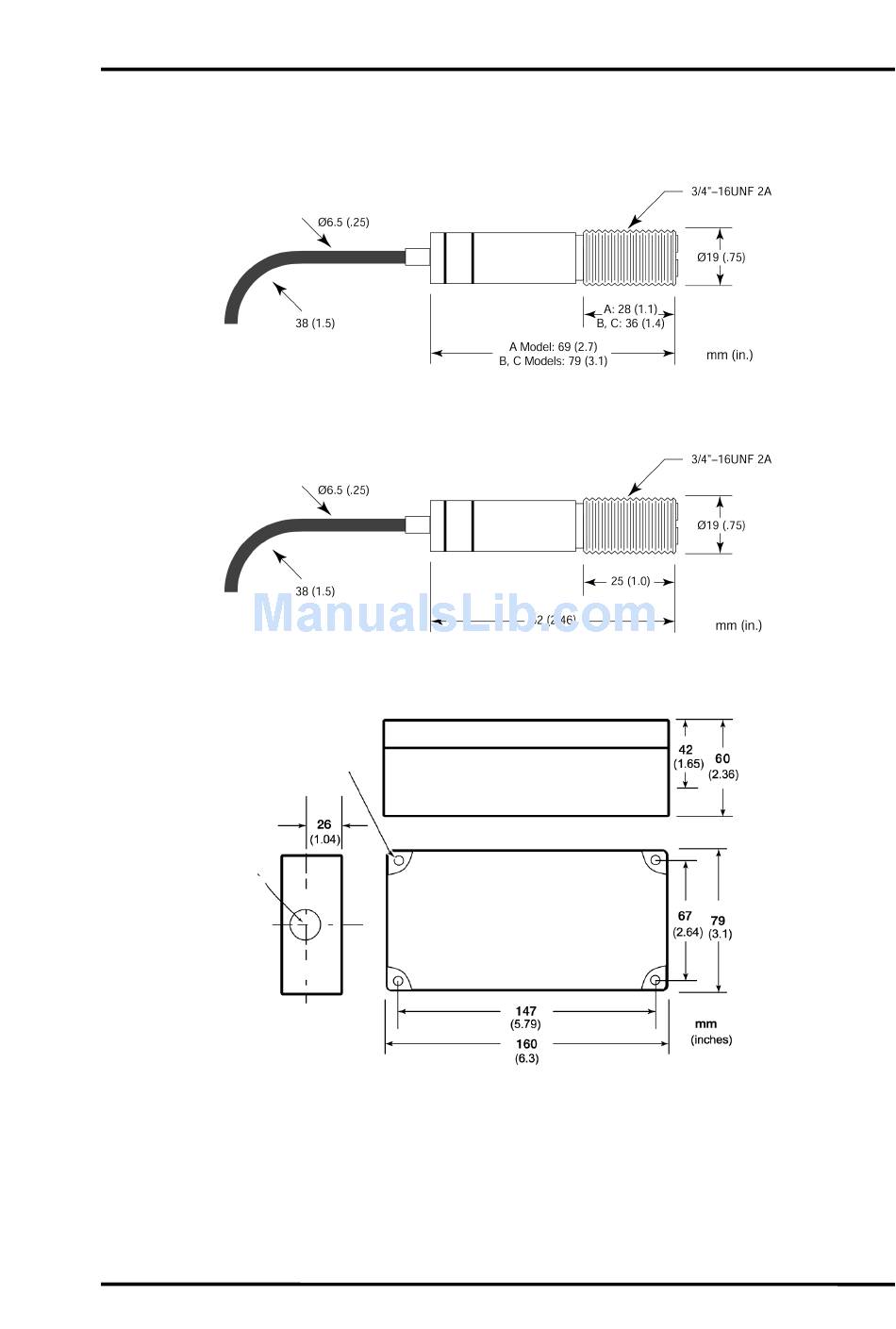

Figure 2: Dimensions of Optical Head(FA Models)
Fiber Optic Cable
min. bend radius
Figure 3: Dimensions of Optical Head (FR Models)
Figure 4: Dimensions of Electronics Housing
Technical Data
7
