Technical Data
Warm up Period
Weight
Optical Head
Electronics Housing
3.3 Electrical Specifications
Power Supply
Power Consumption
Output Isolation
Dielectric Withstand Voltage
Outputs
Analog
Digital RS485
Relay
Input
External Reset
6
15 minutes
100 g (3.5 oz)
710 g (9 oz)
24 VDC ±20%, 500 mA (max 100 mV peak to peak of ripple)
max. 12 W
500 V AC or DC provided by manufacturer supplied power
supply accessory
500 V
0 ‐ 20 mA, 4 ‐ 20 mA, 16 bit resolution
max current loop impedance: 500 Ω
networkable to 32 sensors
Baud rate: 300, 1200, 2400, 9600, 19200, 38400 (default)
Adjustable baud rate only available through 2‐way RS485.
Data format: 8 bit, no parity, 1 stop bit,
Software selectable 4‐wire, full‐duplex non‐multidrop, point‐to‐
point or 2‐wire half duplex multidrop
Contacts max. 48 V, 300 mA, response time < 2 ms, (software
programmable)
TTL input, trigger for resetting peak or valley hold
Sensor
Trigger
GND

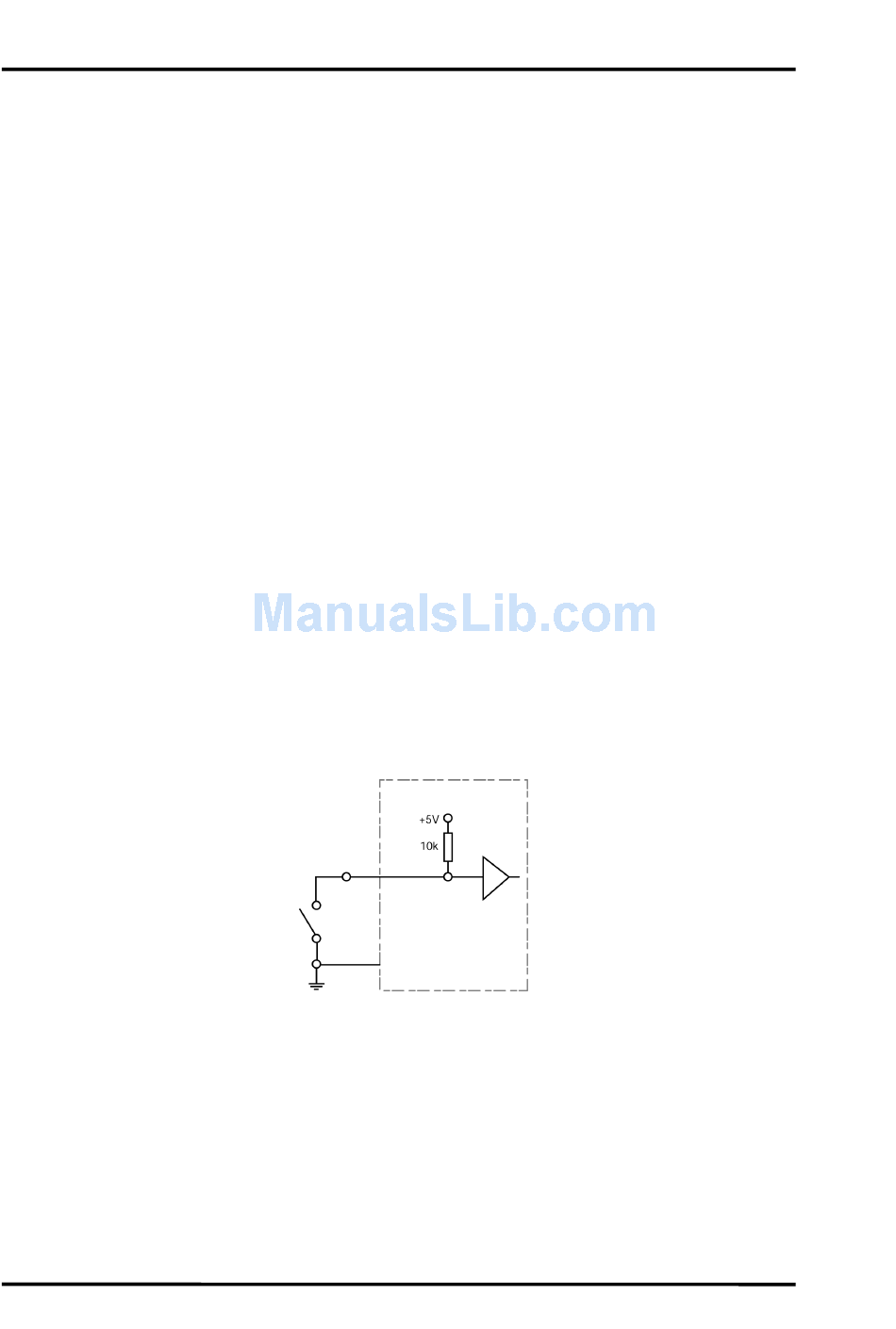

Figure 1: External Reset Wiring Diagram
Marathon Series FA/FR
