Product Overview

3.4 Control Shelf

The control shelf contains the LCP, MDCIC, and control card. The LCP provides access to the system parameters. The MDCIC
is connected to each of the drive modules via a ribbon cable and communicates to the control card. The control card
controls the operation of the drive modules.
1
2
3
4
5
1
Control shelf
2
LCP cradle
3
Control terminal blocks
4
Top-level drive system label
5
Relay terminal blocks

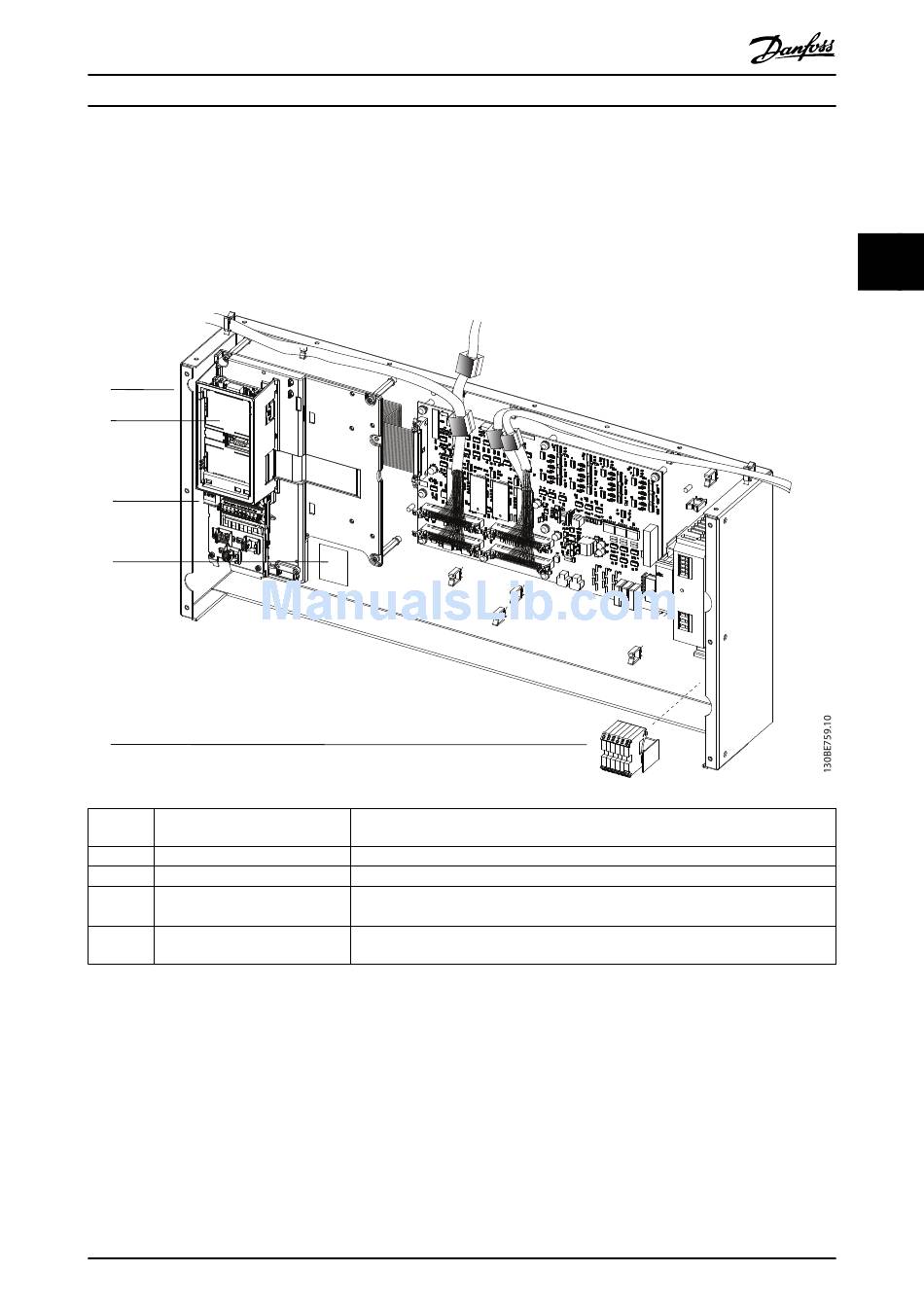

Illustration 3.5 Control Shelf
MG37L202
User Guide
Interfaces with, and controls, the various drive system components. Allows the
connection of an external control device.
Cradle where the LCP may optionally be installed.
Terminal blocks for connecting control wiring.
Label describing the drive system at the top-level. For details, refer to the VLT
Drive Modules Installation Guide.
Terminal blocks for connecting the relay cable from the relay connector on the top plate
of drive module 1.
Danfoss A/S © 08/2017 All rights reserved.
3
3
®
Parallel
13
