5.3.4 Potentiometer Reference

Voltage reference via a potentiometer
Reference source 1 = [1] Analog input 53 (default).
Terminal 53, Low voltage = 0 V.
Terminal 53, High voltage = 10 V.
Terminal 53, Low ref./feedback = 0 RPM.
Terminal 53, High ref./feedback = 1500 RPM.
Switch S201 = OFF (U).
5 5
Speed RPM
P 6-15

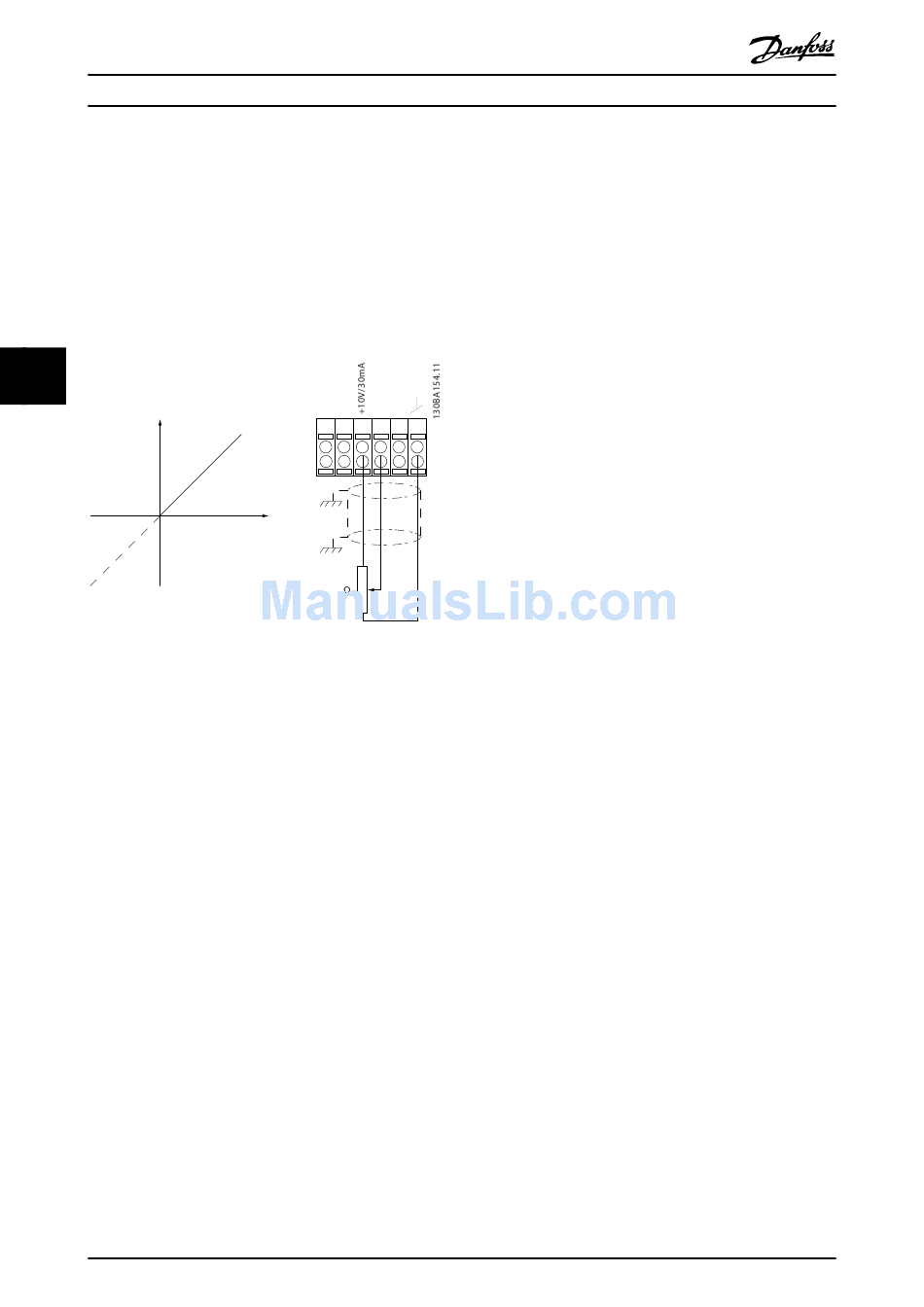

Illustration 5.8 Potentiometer Voltage Reference
30
®
VLT Parallel Drive Modules
39 42 50 53 54
Ref. voltage
P 6-11 10V
1 k
