Chapter 3 Communications
2. Communications
Computer Connections – RS-232

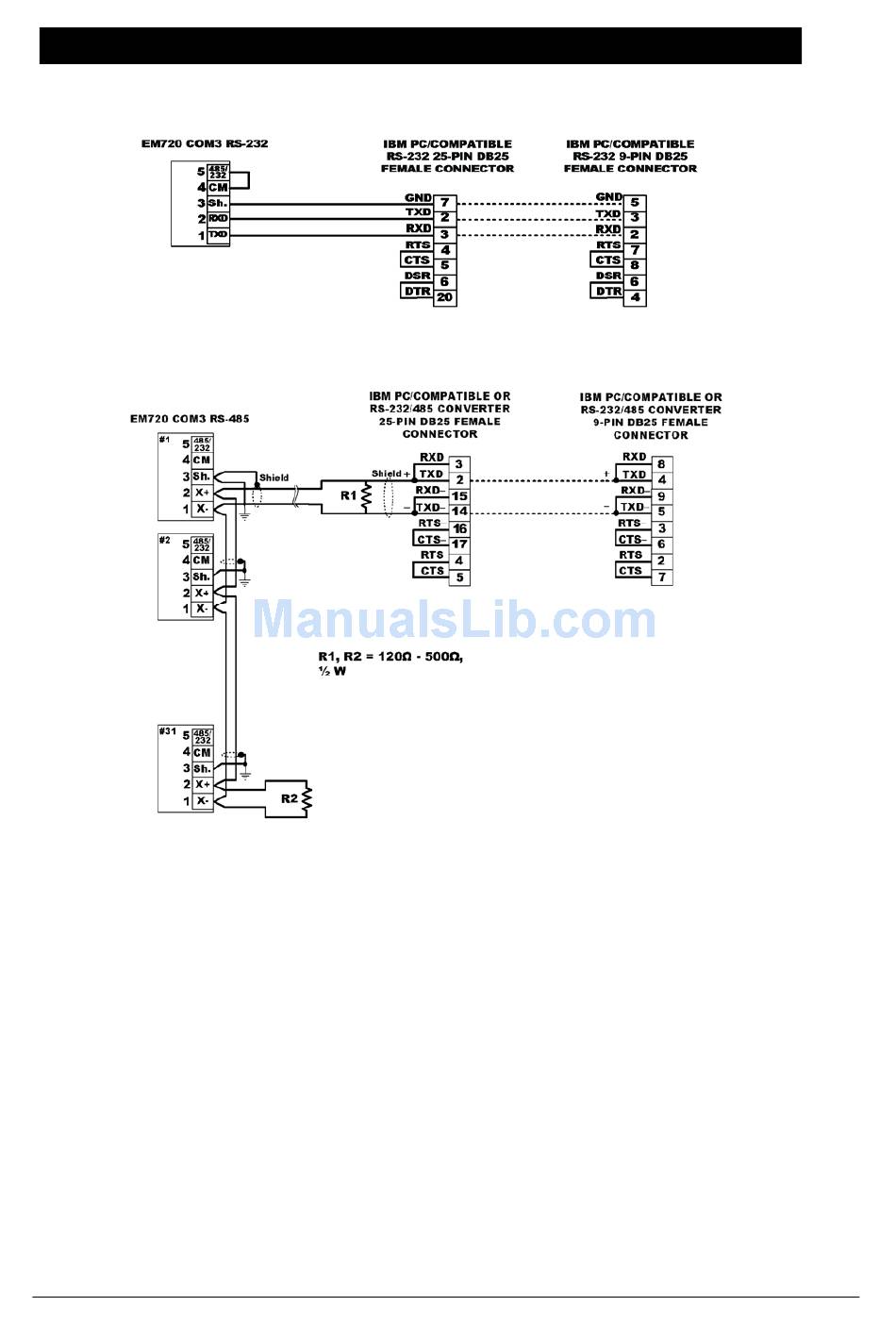

F i g u r e 2 4 : RS - 2 3 2 S i m p l e 3 - w i r e C on n e c t i o n , 2 5 - p i n o r 9 - p i n P C C O M P o r t
Computer Connections – RS-485
F i g u r e 2 5 : RS - 4 8 5 M u l t i d r o p C o n n e c t i o n , 2 5 - p i n o r 9 - p i n P C C O M P o r t
