Location Of Modules - Satec expertmeter EM720 Installation Manual

The 3 slots expand the
modules and Auxiliary DC Power Supply module.
The following functions are available in the following slots:
•
IRIG-B – any slot
•
COM2 (Dial up or Cellular modem port) - slot 3 only
•
COM3 - any slot
•
Ethernet – any slots
•
USB – slots 1 and 2
•
I/O (future) – any slot
•
AUX. POWER SUPPLY – any slot
Chapter 2 Installation

Location of Modules

EM720
with additional input/output ports (future module), communication

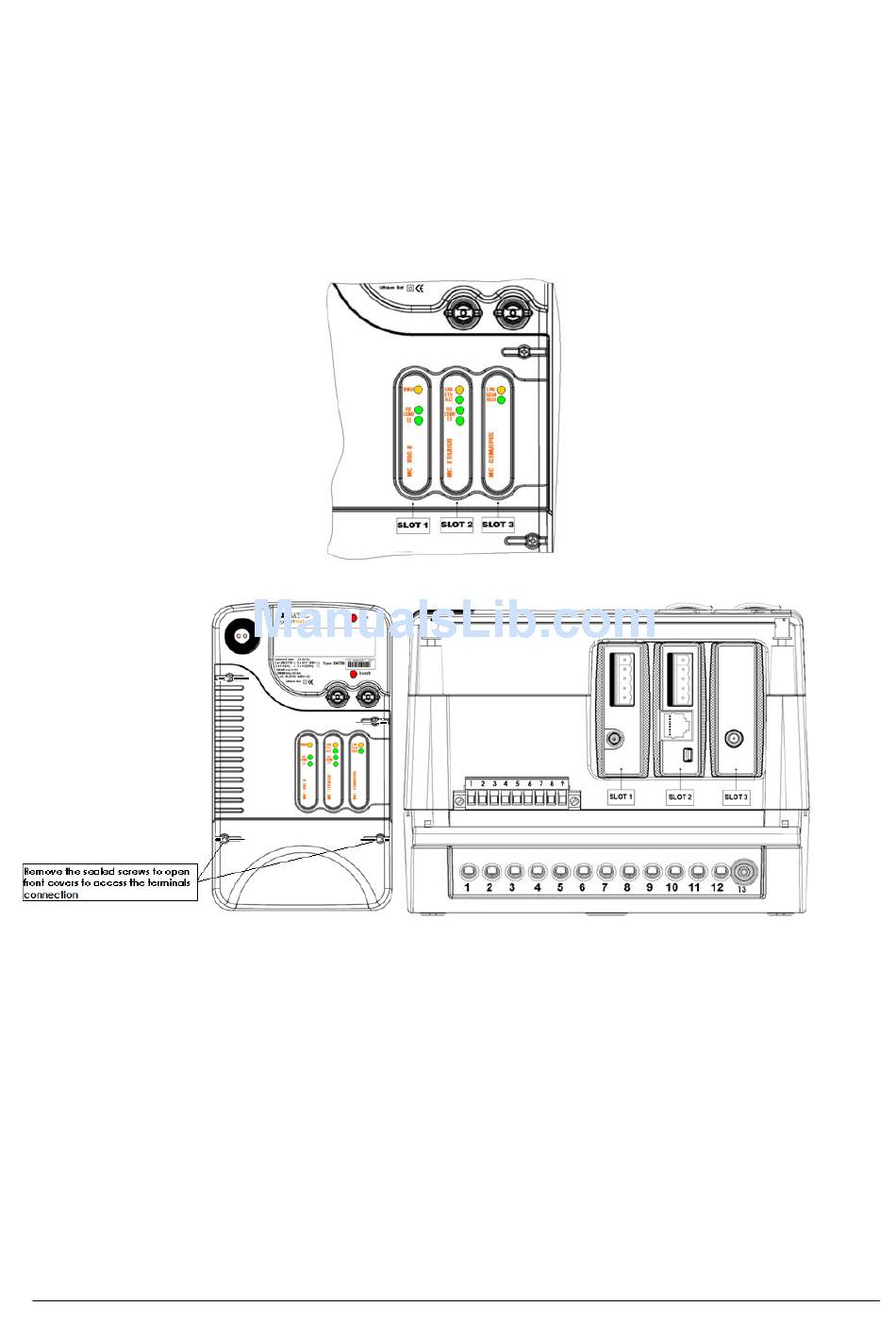

F i g u r e 2 2 : M o d u l e s F r on t p a n e l s i de
F i g u r e 2 3 : M o d u l e s c on n e c t o r s s i d e
