EVALUATION BOARD SOFTWARE

SOFTWARE INSTALLATION

The EVAL-AD7492SDZ evaluation kit includes software on a
CD. Click the setup.exe file from the CD to run the installation.
The default location for the software is C:\Program
Files\Analog Devices\AD7492.
Install the evaluation software before connecting the evaluation
board and the EVAL-SDP-CB1Z
PC to ensure that the evaluation system is correctly recognized
when connected to the PC.
There are two parts to the installation:
1. EVAL-AD7492SDZ evaluation board software install
2. EVAL-SDP-CB1Z SDP board drivers install
Figure 5 to Figure 9 show the steps to take to install the
AD7492SDZ evaluation software. Figure 10 to Figure 13 show
the steps to take to install the EVAL-SDP-CB1Z
through all of the installation steps allowing the software and
drivers to be placed in the appropriate locations. Until the software
and drivers have been installed, do not connect the
CB1Z board to the PC.

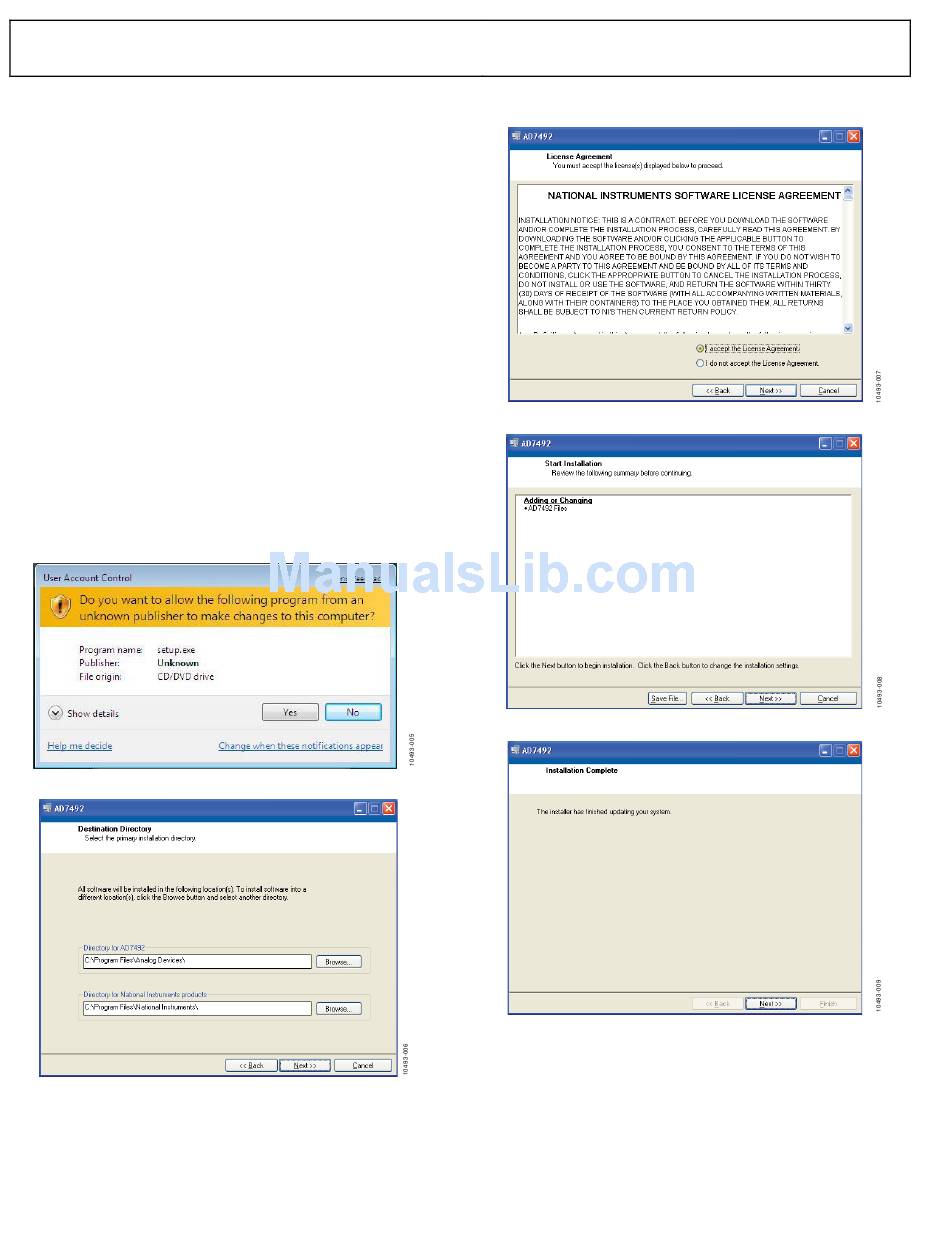

Figure 5. AD7492
Figure 6. AD7492 Install Window 2 (Choose Destination)
board to the USB port of the
EVAL-
drivers. Proceed
EVAL-SDP-
Install Window 1 (Yes)
Figure 7. Install Window 3 (I accept the License Agreement. Next >>)
Figure 8.
Figure 9.
Rev. 0 | Page 8 of 24
EVAL-AD7492SDZ User Guide
AD7492 Install Window 4 (Next >>)
Install Window 5 (Next >>)
AD7492
