EVAL-AD7492SDZ User Guide
EVAL-AD7492SDZ QUICK START GUIDE
RECOMMENDED QUICK START GUIDE
To install the software, do the following:
1.
Install the
AD7492
software from the enclosed CD. When
installing the software, ensure that the
board is disconnected from the USB port of the PC. Restart
the PC after installation.
2.
Connect the
EVAL-SDP-CB1Z
AD7492SDZ
board, as shown in Figure 2.
3.
Screw the two boards together with the enclosed nylon
screw-nut set because it ensures that the boards connect
firmly together.
EVAL-SDP-CB1Z
board to the
EVAL-

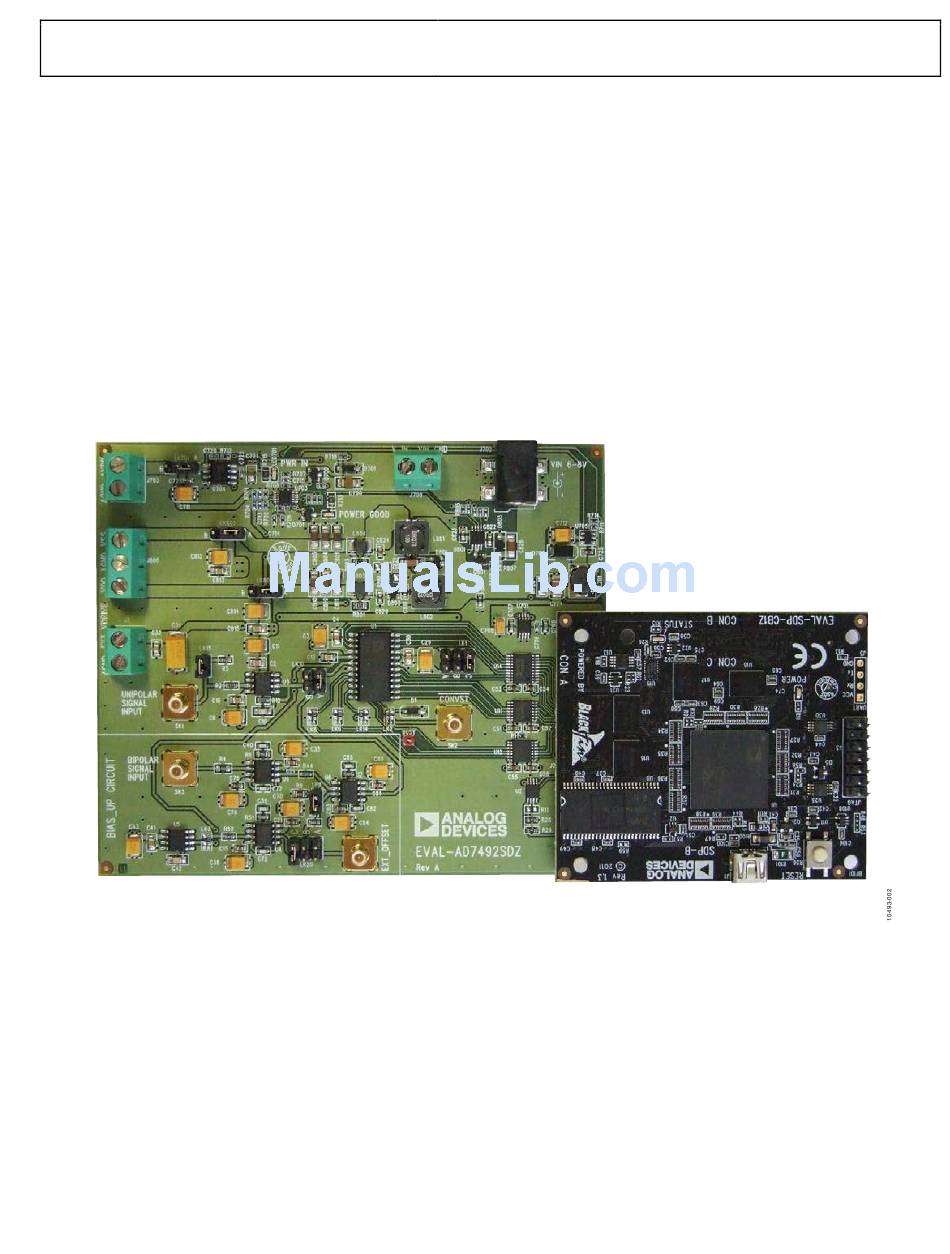

Figure 2. Hardware Configuration, Setting Up the
Rev. 0 | Page 3 of 24
4.
Connect the 9 V power supply adapter included in the kit
to the J2 connecter on the
5.
Connect the
EVAL-SDP-CB1Z
USB cable. For Windows® XP, users may need to search for
the
EVAL-SDP-CB1Z
system, choose to automatically search for the drivers for
the
EVAL-SDP-CB1Z
6.
Launch the
EVAL-AD7492SDZ
Devices subfolder in the All Programs menu.
9V POWER
SDP BOARD
EVAL-AD7492SDZ
UG-371
EVAL-AD7492SDZ
board.
board to the PC via the
drivers. If prompted by the operating
board.
software from the Analog
ADSPBF527
BLACKFINDSP
USB TO PC
