UG-371
EVAL-AD7492SDZ User Guide

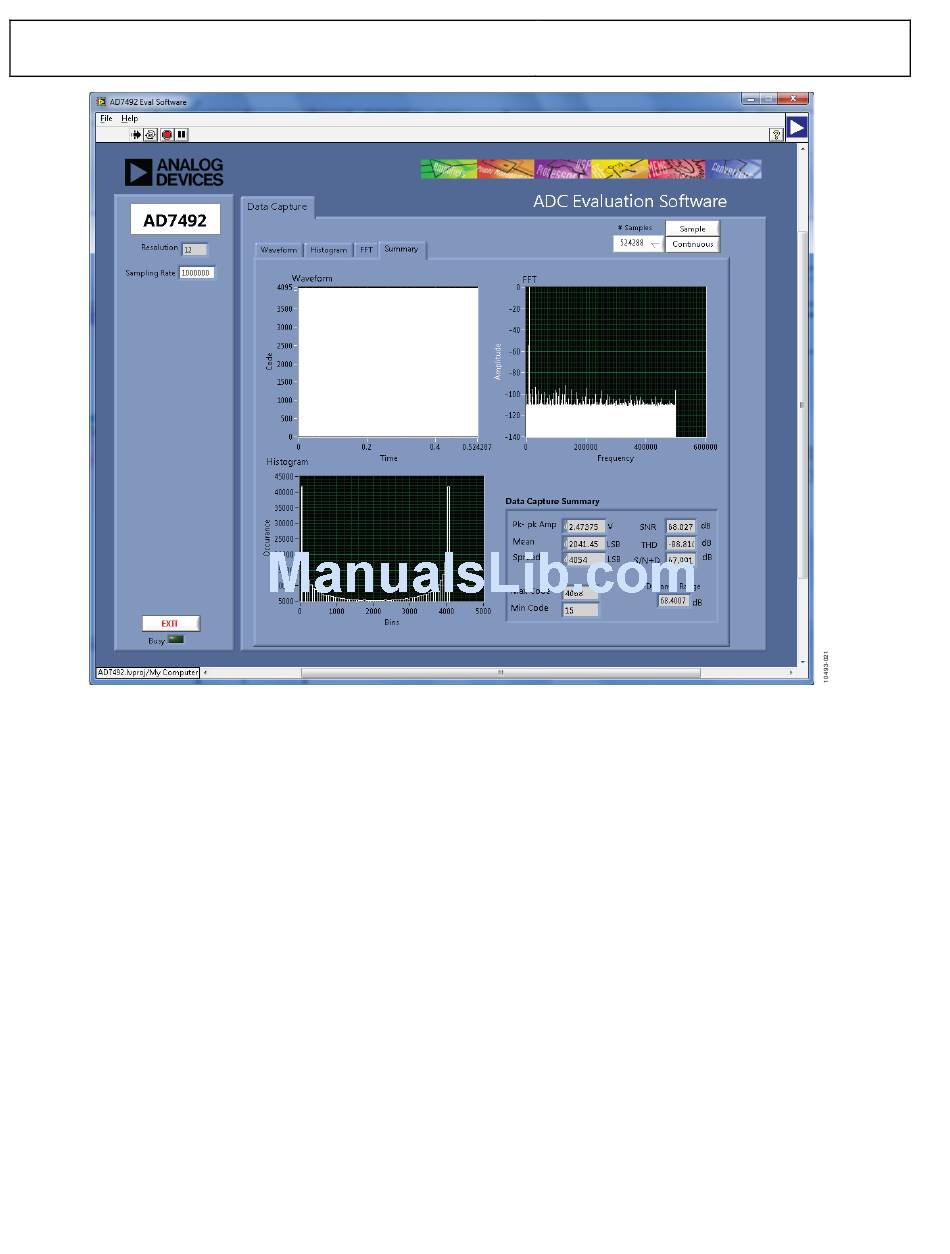

Figure 20. Data Capture/Summary Tab
DATA CAPTURE/SUMMARY TAB
Figure 20 shows the Data Capture/Summary tab. The Data
Capture/Summary tab captures all the display information and
provides them in one panel with a synopsis of the information
including key performance parameters, such as SNR and THD.
Rev. 0 | Page 14 of 24
