Instructions for Operating
Y-axis
Angle
Fig. 22:
9.3
optoNCDT 1402
teach in laser on
state
optoNCDT
LASERSTRAHLUNG
NICHT IN DEN STRAHL BLICKEN
LASER KLASSE 2
nach DIN EN 60825-1: 2007
P 1 mW; = 670 nm
Angle

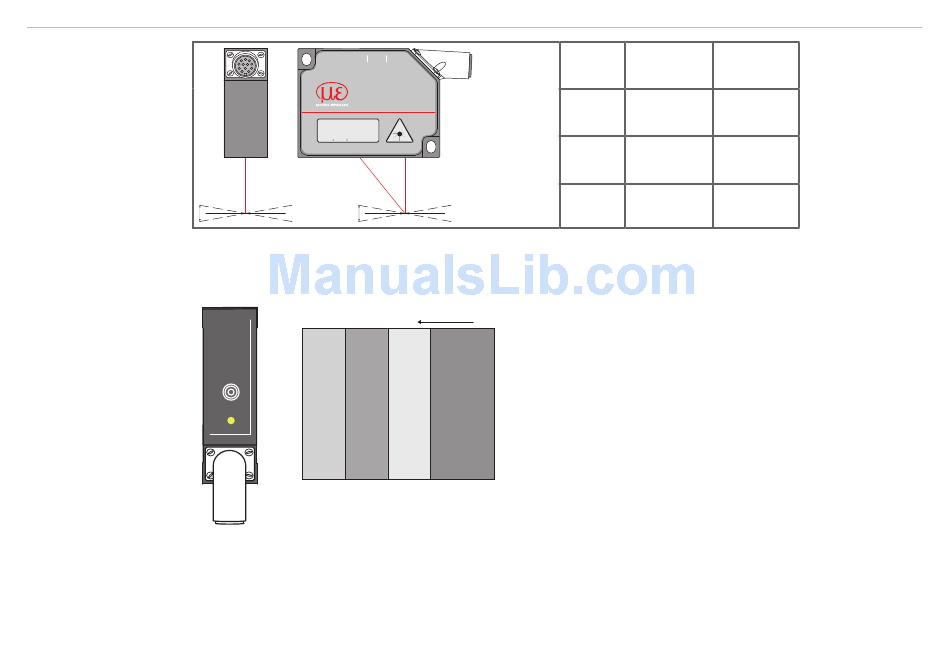

Measurement errors through tilting with diffuse reflection

Optimizing the Measuring Accuracy

Color strips
select
sate
laser on
Grinding or rolling marks
Angle
±5 °
±15 °
X-axis
tilting < triangulation angle
±30 °
In case of rolled or polished metals that are
Direction of motion
moved past the sensor the sensor plane must
be arranged in the direction of the rolling or
grinding marks. The same arrangement must be
used for color strips (Fig. 23).
Fig. 23:
or striped surfaces
X-axis % Y-axis %
typ. 0.12 typ. 0.12
typ. 0.2 typ. 0.2
typ. 0.5 typ. 0.5
Sensor arrangement in case of ground
Page 71
