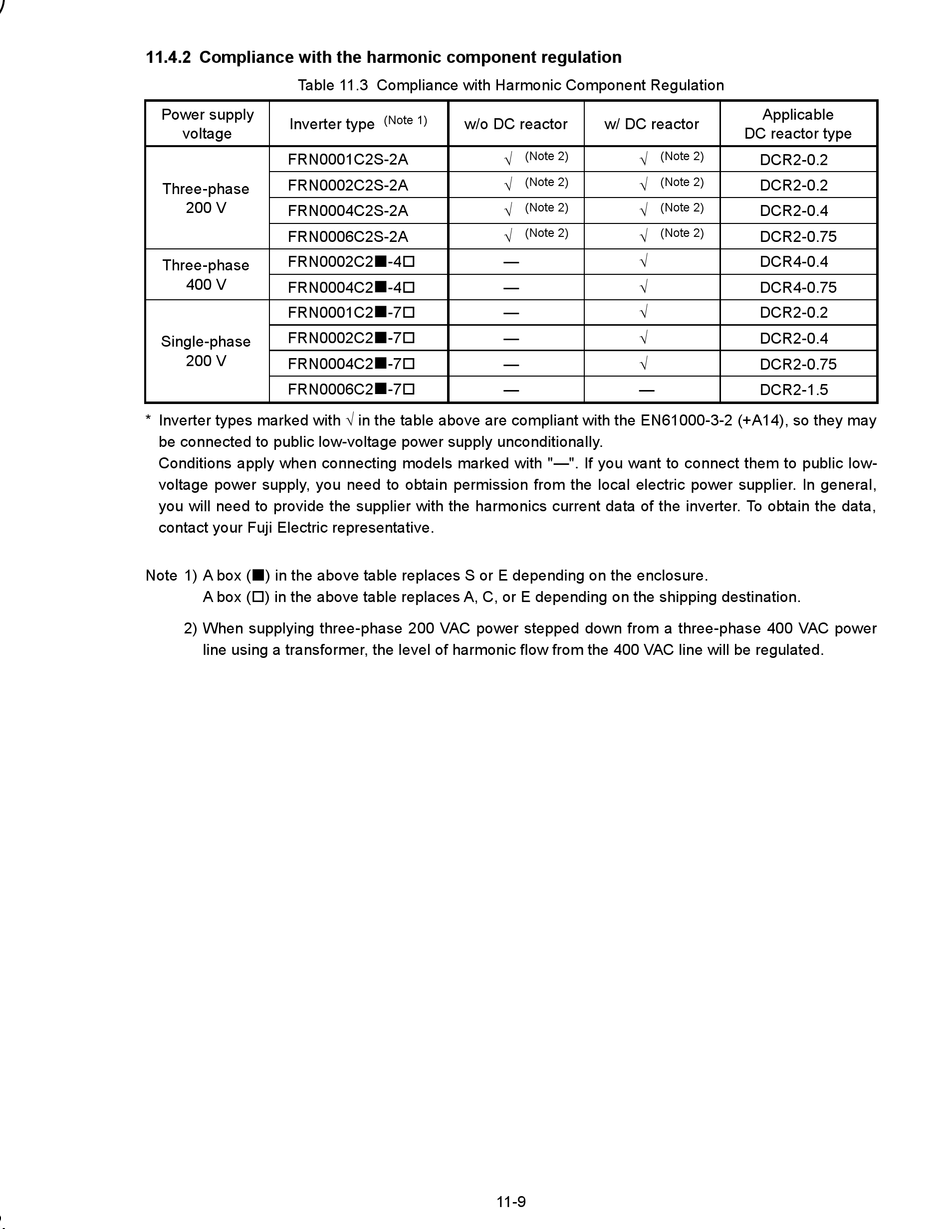

11.4.2 Compliance with the harmonic component regulation

Table 11.3 Compliance with Harmonic Component Regulation
Power supply
Inverter type
voltage
FRN0001C2S-2A
FRN0002C2S-2A
Three-phase
200 V
FRN0004C2S-2A
FRN0006C2S-2A
FRN0002C2
Three-phase
400 V
FRN0004C2
FRN0001C2
FRN0002C2
Single-phase
200 V
FRN0004C2
FRN0006C2
* Inverter types marked with  in the table above are compliant with the EN61000-3-2 (+A14), so they may
be connected to public low-voltage power supply unconditionally.
Conditions apply when connecting models marked with "—". If you want to connect them to public low-
voltage power supply, you need to obtain permission from the local electric power supplier. In general,
you will need to provide the supplier with the harmonics current data of the inverter. To obtain the data,
contact your Fuji Electric representative.

Note 1) A box ( ) in the above table replaces S or E depending on the enclosure.
A box () in the above table replaces A, C, or E depending on the shipping destination.
2) When supplying three-phase 200 VAC power stepped down from a three-phase 400 VAC power
line using a transformer, the level of harmonic flow from the 400 VAC line will be regulated.
(Note 1)
w/o DC reactor
(Note 2)

(Note 2)

(Note 2)

(Note 2)


-4 —

-4 —

-7 —

-7 —

-7 —

-7 —
11-9
w/ DC reactor
DC reactor type
(Note 2)

(Note 2)

(Note 2)

(Note 2)






—
Applicable
DCR2-0.2
DCR2-0.2
DCR2-0.4
DCR2-0.75
DCR4-0.4
DCR4-0.75
DCR2-0.2
DCR2-0.4
DCR2-0.75
DCR2-1.5
