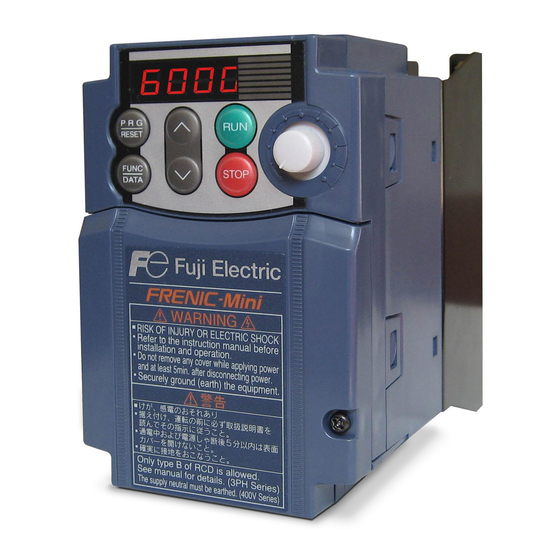

Fuji Electric Frenic Mini Series Brochure
  1. Manuals
  2. Brands
  3. Fuji Electric Manuals
  4. Inverter
  5. frenic mini series
  6. Brochure

Fuji Electric Frenic Mini Series Brochure

Frenic mini series
Hide thumbs Also See for Frenic Mini Series:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual , User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Frenic Mini Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fuji Electric Frenic Mini Series

Summary of Contents for Fuji Electric Frenic Mini Series

  • Page 2 Series Concepts Ideal functions to meet various needs Ideal functions to meet various needs New, compact design New, compact design Simple operation Simple operation Flexible through optionals Flexible through optionals A broad range of model variations A broad range of model variations Global products Global products Actual size...
  • Page 3 Optimum performance for traversing conveyors High starting torque, at 150% or more Trip-free operation Equipped with Fuji s original simplified torque-vector control The remarkably improved current limiting function (stall system and the automatic torque boost function, the inverter prevention) allows trip-free operation even for an impact load. provides consistent powerful operation (when automatic torque Load torque boost is ON, slip compensation control is ON, and when...
  • Page 4 The ideal functions to serve a multiplicity of needs for small-capacity inverters Compatible with a wide range of The output frequency can be set to a frequency settings maximum of 400Hz. The optimum frequency setting method can be selected to The inverter can be used for equipment that requires a high match your machine or equipment.
  • Page 5 Simple operation and wiring Frequency setting potentiometer is All types of data can be displayed on standard equipment. the keypad. The frequency can be adjusted easily by hand. The output frequency, set frequency, load shaft speed, output current, output voltage, alarm history, input power etc. can be The control circuit terminal block cover displayed.
  • Page 6 Flexible through optionals Function code copy function Remote operation is possible. The optional remote keypad panel includes a built-in copy Remote operation can be done easily using the optional function, so function codes can be set easily in duplicate units. RS-485 communications card, remote keypad and remote operation extension cable.
  • Page 7 The contents of this catalog are provided to help you select the Variation Caution product model that is best for you. Before actual use, be sure to read the User's Manual thoroughly to assure correct operation. In addition to the three-phase 230V, single-phase 230V and single-phase 115V, three-phase 460V has been newly introduced, broadening the model selection range.

  • Page 8: Standard Specifications

    Standard Specifications Standard specifications Three-phase series Item Specifications Input power source Three-phase 230V Three-phase 460V FRNF12 FRNF25 FRNF50 FRN001 FRN002 FRN003 FRN005 FRNF50 FRN001 FRN002 FRN003 FRN005 Type ( C1S- U C1S-2U C1S-2U C1S-2U C1S-2U C1S-2U C1S-2U C1S-2U C1S-4U C1S-4U C1S-4U C1S-4U C1S-4U...
  • Page 9 Semi-standard Specifications EMC filter built-in type Three-phase series Item Specifications Input power source Three-phase 230V Three-phase 460V FRNF12 FRNF25 FRNF50 FRN001 FRN002 FRN003 FRN005 FRNF50 FRN001 FRN002 FRN003 FRN005 Type ( C1E- U C1E-2U C1E-2U C1E-2U C1E-2U C1E-2U C1E-2U C1E-2U C1E-4U C1E-4U C1E-4U...
  • Page 10 Semi-standard Specifications Braking resistor built-in type Item Specifications Input power source Three-phase 230V Three-phase 460V FRN002 FRN003 FRN005 FRN002 FRN003 FRN005 Type ( C1S- U21 C1S-2U21 C1S-2U21 C1S-2U21 C1S-4U21 C1S-4U21 C1S-4U21 Applicable motor rating *1) Rated capacity *2) Rated voltage *3) Three-phase, 200V/50Hz, 200, 220, 230V/60Hz Three-phase, 380, 400, 415V/50Hz, 380, 400, 440, 460V/60Hz 11.0...

  • Page 11: Common Specifications

    Common Specifications Common specifications Related Item Explanation Remarks function code Maximum frequency 25 to 400Hz For operation at 120Hz or more, test the inverter in advance by combining it with the motor. Base frequency 25 to 400Hz For operation at 120Hz or more, test the inverter in advance by combining it with the motor.
  • Page 12 Common Specifications Common specifications Related Item Explanation Remarks function code PID control PID control is possible using analog input signals. Select the control mode with J01. Inverse operation can be set using digital input signal (IVS) or the function code J01. Process commands Select the kind of remote process command with J02, E60 to E62.

  • Page 13: External Dimensions

    External Dimensions External Dimensions Without EMC filter type Fig. 1 Fig. 2 Unit:inch (mm) Unit:inch (mm) 3.15(80) 4.33(110) 0.26(6.5) 2.64(67) 0.26(6.5) 0.26(6.5) 3.82(97) 0.26(6.5) 0.08(2) 0.08(2) 0.24(6) 0.28(7) 4-0.2x0.24(Long hole) 4-0.2x0.28(Long hole) (4-5x6) (4-5x7) Rating plate Rating plate Dimensions [inch(mm)] Dimensions [inch(mm)] Power supply Power supply...

  • Page 14: Frn002C1E-2U

    External Dimensions EMC filter built-in type Fig. 1 Fig. 2 Unit:inch (mm) Unit:inch (mm) 3.15(80) 4.33(110) 0.26(6.5) 0.08(2) 0.26(6.5) 2.64(67) 0.26(6.5) 3.82(97) 0.26(6.5) 0.08(2) 0.24(6) 0.28(7) 4-0.20x0.28(Long hole) 4-0.20x0.24(Long hole) (4-5x7) (4-5x6) Rating plate Rating plate 0.41(10.5) 2.36(60) 0.39(10) Power supply Dimensions [inch(mm)] Dimensions [inch(mm)] Power supply...

  • Page 15: Frn002C1J-2U

    IP40 enclosure type Fig. Unit:inch (mm) 0.10(2.5) 2x d 3x c Leading wire part A Leading wire part B External dimensions [inch(mm)] Leading wire part dimensions [inch(mm)] Power supply Type voltage Leading wire part fig. FRNF12C1J-2U FRNF25C1J-2U (38) 3.26 2.64 4.33 0.76 0.87...

  • Page 16: Keypad Operations

    Keypad Operations Keypad switches and functions LED monitor Run key When the motor is running or stopped: Used to start the operation. While the motor is stopped: The monitor displays the speed monitor (such as output frequency before slip compensation, after slip compensation, This key is invalid if the function code is set to set frequency, motor speed, load shaft speed), output voltage,...

  • Page 17: Terminal Functions

    Terminal Functions Terminal Functions Related Symbol Terminal name Functions Remarks function code L1/R, L2/S, L3/T Power input Connect a three-phase power supply. Three-phase 230V, 460V series L1/L, , L2/N Connect a single-phase power supply. ( indicates the empty terminal.) Single-phase 230V, 115V series U, V, W Inverter output Connect a three-phase induction motor.

  • Page 18: Main Circuit Terminals

    Terminal Functions Terminal Functions Related Symbol Terminal name Functions Remarks function code • Output frequency (Before slip compensation) • Output current Voltage output: 0 to 10V Analog monitor F30,F31 • Output frequency (After slip compensation) • Output voltage Max. current: 2mA •...

  • Page 19: Basic Wiring Diagram

    Wiring Diagram Basic wiring diagram The following diagram is for reference only. For detailed wiring diagrams, refer to the Instruction Manual. Keypad operation Run/Stop operation and frequency setting on the keypad [Wiring method] MC (Note 2) 1. Connect the inverter main power circuit only. [Operation method] 1.

  • Page 20: Function Settings

    Function Settings Function Settings Fundamental Functions: F codes Func. Name Data setting range Min. Unit Factory setting code Data Protection 0 : Disable data protection 1 : Enable data protection Frequency Command 1 0 : Keypad operation ( key) 1 : Analog voltage input (terminal 12) (0 to +10V DC) 2 : Analog current input (terminal C1) (+4 to +20mA DC) 3 : Analog voltage input (terminals 12) and analog current input (terminal C1) 4 : Potentiometer on the keypad...
  • Page 21 Function Settings Extension Terminal Functions: E codes Func. Name Data setting range Min. Unit Factory setting code Terminal Command Assignment to: [X1] Selects from the following items by code. [X2] [X3] 0 : (1000) Multistep freq. selection (0 to 1 step) [SS1] 1 : (1001) Multistep freq.
  • Page 22 Function Settings Function Settings Extension Terminal Functions: E codes Func. Name Data setting range Min. Unit Factory setting code Built-in Potentiometer Selects from the following functions by code. (Function selection) 0 : No function selection 2 : Aux. freq. setting 2 1 : Aux.
  • Page 23 Function Settings High Performance Functions: H Codes Func. Name Data setting range Min. Unit Factory setting code Data Initializing 0 : Manual set value 1 : Return to factory set value (Data reset) 2 : Motor parameter initializing (Motor 1) Retry (No.

  • Page 24: Protective Functions

    Protective Functions Protective Functions Alarm output Related Function Description monitor (30A,B,C) Note) function code • Stops the inverter output to protect the inverter from an overcurrent resulting from overload. Overcurrent During acceleration • Stops the inverter output to protect the inverter from an overcurrent due to a short-circuit in the output circuit. Protection During deceleration •...

  • Page 25: Option Guide

    Option Guide Option Guide Name Function Surge absorber Suppresses surges or noise invading from an external source, preventing malfunction from magnetic contactors, control relays and timers, etc. Arrester Suppresses induced lightning surges from power source, thus protecting all equipment connected to the power source. Absorbs surges or noise invading from an external source, preventing malfunction of electronic Surge killer equipment used in the switchboard.
  • Page 26 Options Options Name(Type) Specifications and dimensions [Unit : inch (mm)] Braking resistor Fig.A Fig.B Fig.C Type Dimensions [inch (mm)] Mass Fig. [Standard type] [lbs(kg)] 230V 460V 2.52 12.20 11.61 2.64 2.87 DB0.75-2 DB0.75-4 (64) (310) (295) (67) (1.3) 2.99 13.58 13.07 3.70 4.41...

  • Page 27: Single-Phase 230V

    Options Options Name Dimension [Unit : inch (mm)] DC REACTOR 4-G Mounting hole Applicable inverter type Dimensions Reactor Terminal Mass Three-phase Single-phase Single-phase screw type [lbs(kg)] 230V 230V 115V FRNF12C1 -2U** FRNF12C1 -7U DCR2-0.2 0.2(5) 1.76(0.8) FRNF25C1 -2U** 2.83 3.54 0.31 FRNF50C1 -2U** FRNF25C1 -7U DCR2-0.4...
  • Page 28 Options Remote operation extension RS-485 communications card cable (CB- S) (OPC-C1-RS) This straight cable is used to connect the RS- This is an exclusive option that enables the FRENIC-Mini 485 communications card and the remote series to use RS-485 communication. keypad, and available in three lengths, i.e.
  • Page 29 Options NEMA1 kit (NEMA1- C1- ) MODEL A MODEL B MODEL C NEMA1 kit, when fitted to the FRENIC-Mini Applicable Power supply voltage Option type MODEL series, protects the inverter body with the Inverter type structure that conforms to the NEMA1 FRNF12C1S-2U** NEMA1-0.2C1-2 standard (approved as UL TYPE1).
  • Page 30 MEMO Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: info@ctiautomation.net...
  • Page 31 MEMO Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: info@ctiautomation.net...
  • Page 32 NOTES oil-lubricated gearbox or speed changer/reducer, disabling motor operation. Application to standard motors continuous motor operation at low speed may • Reducing noise cause poor lubrication. • Driving a 460V standard motor Use of filter and shielded wires are typical measures •...
