LED monitor
shows: Contents
(item No.)
Max. temperature of
6_11
heat sink
Terminal I/O signal
status (displayed with
6_12
the ON/OFF of LED
segments)
Signal input terminal
status (in hexadecimal
6_13
format)
Terminal output signal
status (in hexadecimal
6_14
format)
No. of consecutive
6_15
occurrences
Overlapping alarm 1
6_16
Overlapping alarm 2
6_17
Terminal I/O signal
status under commu-
nication control
6_18
(displayed with the
ON/OFF of LED seg-
ments)
Terminal input signal
status under commu-
6_19 nication control
(in hexadecimal for-
mat)
Terminal output signal
status under commu-
6_20 nication control
(in hexadecimal for-
mat)
Error sub code
6_21
Running status 2
6_22
Running status 3
6_24
When the same alarm occurs repeatedly in succession, the alarm information for the first
occurrence is retained and the information for the subsequent occurrences is discarded.
Only the number of consecutive occurrences will be updated.

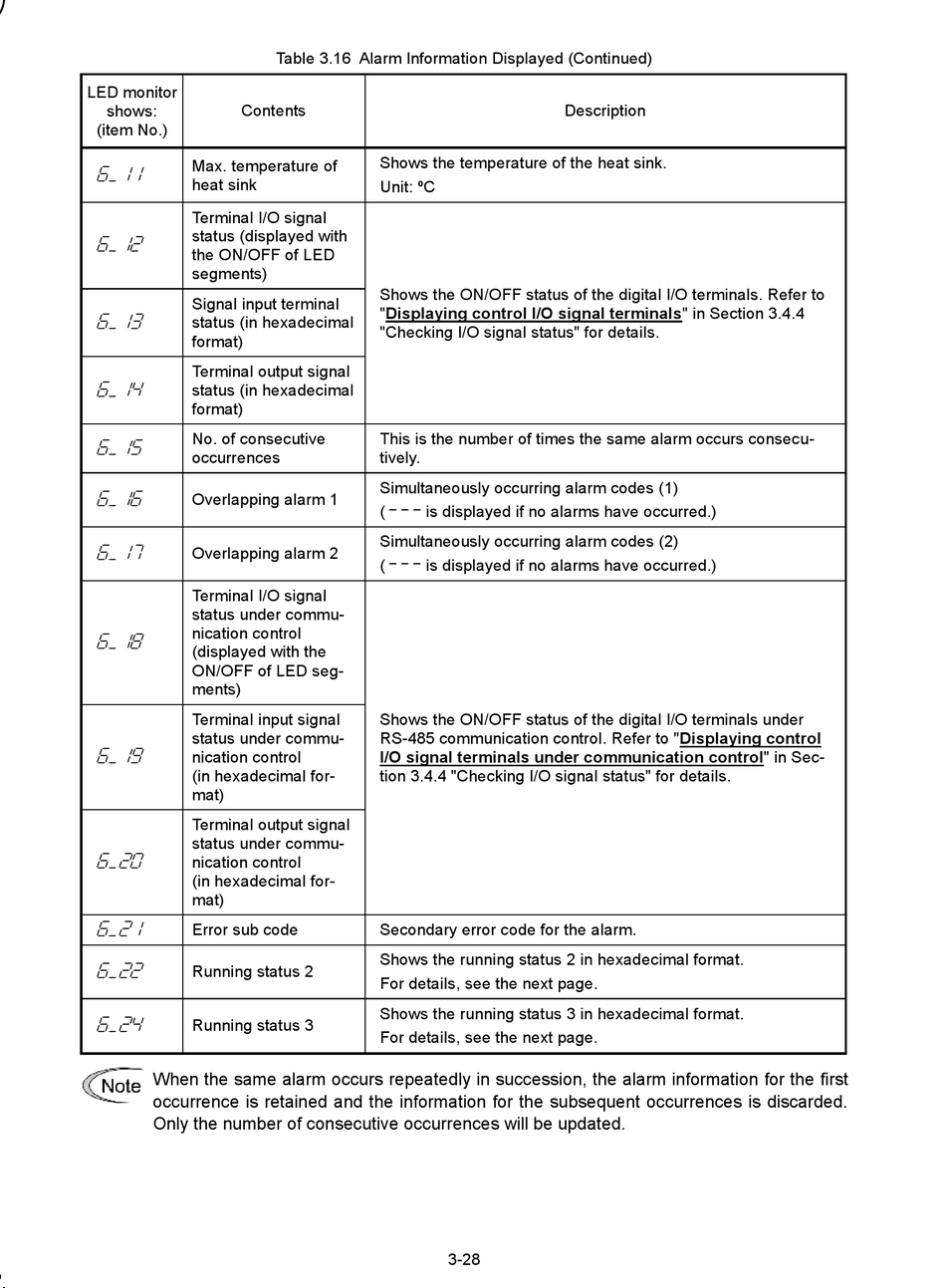

Table 3.16 Alarm Information Displayed (Continued)
Shows the temperature of the heat sink.
Unit: ºC
Shows the ON/OFF status of the digital I/O terminals. Refer to
"Displaying control I/O signal terminals" in Section 3.4.4
"Checking I/O signal status" for details.
This is the number of times the same alarm occurs consecu-
tively.
Simultaneously occurring alarm codes (1)
---
( is displayed if no alarms have occurred.)
Simultaneously occurring alarm codes (2)
( --- is displayed if no alarms have occurred.)
Shows the ON/OFF status of the digital I/O terminals under
RS-485 communication control. Refer to "Displaying control
I/O signal terminals under communication control" in Sec-
tion 3.4.4 "Checking I/O signal status" for details.
Secondary error code for the alarm.
Shows the running status 2 in hexadecimal format.
For details, see the next page.
Shows the running status 3 in hexadecimal format.
For details, see the next page.
Description
3-28
