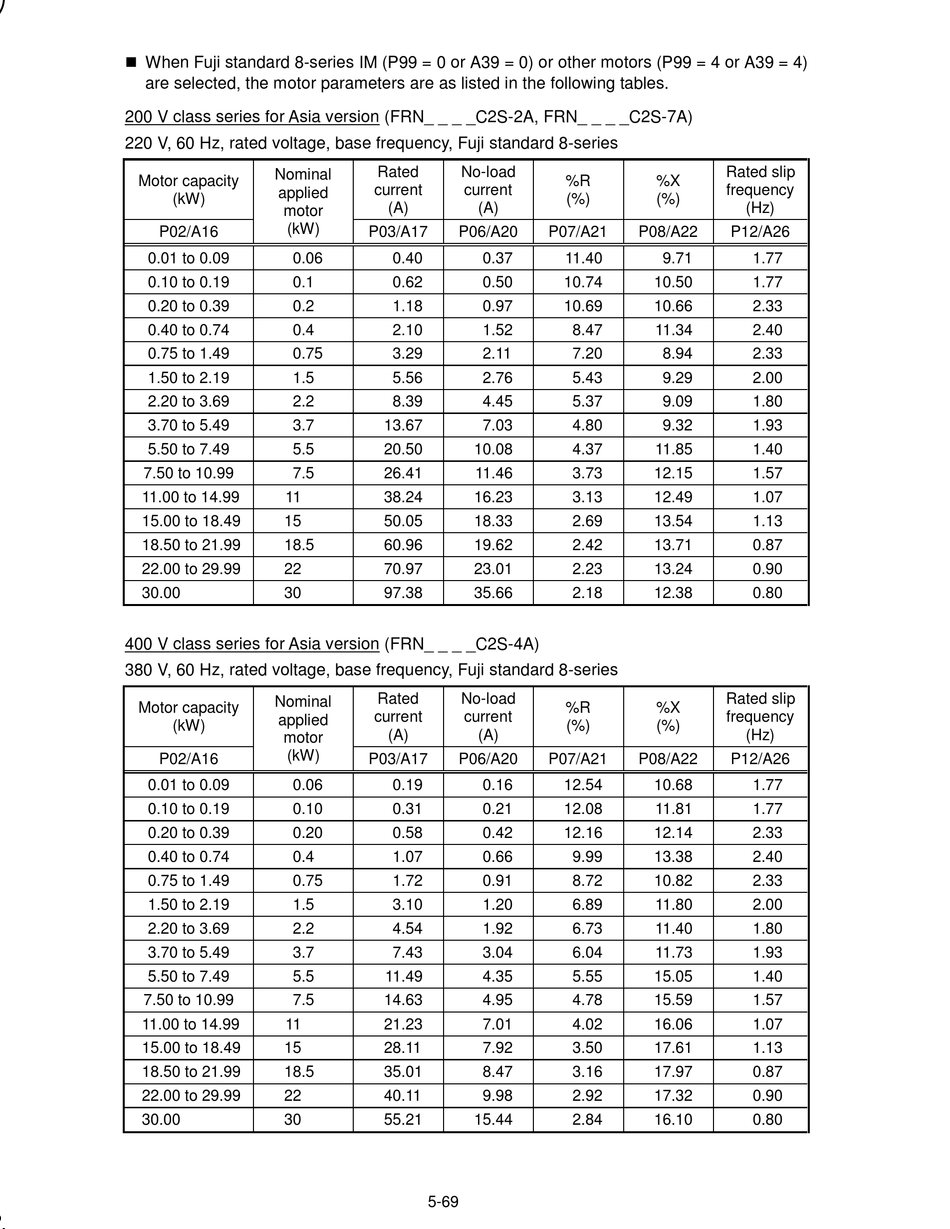

 When Fuji standard 8-series IM (P99 = 0 or A39 = 0) or other motors (P99 = 4 or A39 = 4)
are selected, the motor parameters are as listed in the following tables.
200 V class series for Asia version (FRN_ _ _ _C2S-2A, FRN_ _ _ _C2S-7A)
220 V, 60 Hz, rated voltage, base frequency, Fuji standard 8-series
Nominal
Motor capacity
applied
(kW)
P02/A16
0.01 to 0.09
0.10 to 0.19
0.20 to 0.39
0.40 to 0.74
0.75 to 1.49
1.50 to 2.19
2.20 to 3.69
3.70 to 5.49
5.50 to 7.49
7.50 to 10.99
11.00 to 14.99
15.00 to 18.49
18.50 to 21.99
22.00 to 29.99
30.00
400 V class series for Asia version (FRN_ _ _ _C2S-4A)
380 V, 60 Hz, rated voltage, base frequency, Fuji standard 8-series
Nominal
Motor capacity
applied
(kW)
P02/A16
0.01 to 0.09
0.10 to 0.19
0.20 to 0.39
0.40 to 0.74
0.75 to 1.49
1.50 to 2.19
2.20 to 3.69
3.70 to 5.49
5.50 to 7.49
7.50 to 10.99
11.00 to 14.99
15.00 to 18.49
18.50 to 21.99
22.00 to 29.99
30.00
Rated
current
(A)
motor
(kW)
P03/A17
0.06 0.40
0.1 0.62
0.2 1.18
0.4 2.10
0.75 3.29
1.5 5.56
2.2 8.39
3.7 13.67
5.5 20.50
7.5 26.41
11 38.24
15 50.05
18.5 60.96
22 70.97
30 97.38
Rated
current
(A)
motor
(kW)
P03/A17
0.06 0.19
0.10 0.31
0.20 0.58
0.4 1.07
0.75 1.72
1.5 3.10
2.2 4.54
3.7 7.43
5.5 11.49
7.5 14.63
11 21.23
15 28.11
18.5 35.01
22 40.11
30 55.21
5-69
No-load
%R
current
(%)
(A)
P06/A20 P07/A21
0.37 11.40
0.50 10.74
0.97 10.69
1.52 8.47
2.11 7.20
2.76 5.43
4.45 5.37
7.03 4.80
10.08 4.37
11.46 3.73
16.23 3.13
18.33 2.69
19.62 2.42
23.01 2.23
35.66 2.18
No-load
%R
current
(%)
(A)
P06/A20 P07/A21
0.16 12.54
0.21 12.08
0.42 12.16
0.66 9.99
0.91 8.72
1.20 6.89
1.92 6.73
3.04 6.04
4.35 5.55
4.95 4.78
7.01 4.02
7.92 3.50
8.47 3.16
9.98 2.92
15.44 2.84
Rated slip
%X
frequency
(%)
(Hz)
P08/A22 P12/A26
9.71 1.77
10.50 1.77
10.66 2.33
11.34 2.40
8.94 2.33
9.29 2.00
9.09 1.80
9.32 1.93
11.85 1.40
12.15 1.57
12.49 1.07
13.54 1.13
13.71 0.87
13.24 0.90
12.38 0.80
Rated slip
%X
frequency
(%)
(Hz)
P08/A22 P12/A26
10.68 1.77
11.81 1.77
12.14 2.33
13.38 2.40
10.82 2.33
11.80 2.00
11.40 1.80
11.73 1.93
15.05 1.40
15.59 1.57
16.06 1.07
17.61 1.13
17.97 0.87
17.32 0.90
16.10 0.80
