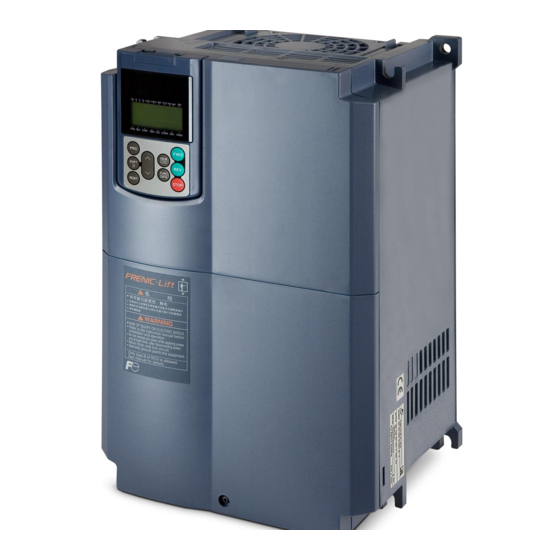

Fuji Electric FRENIC-Lift series Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Designed for Elevating Machinery
Thank you for purchasing our FRENIC-Lift series of inverters.
• This product is designed to drive a three-phase induction motor and synchronous motor. Read through this
instruction manual and be familiar with the handling procedure for correct use.
• Improper handling might result in incorrect operation, a short life, or even a failure of this product as well as
the motor.
• Deliver this manual to the end user of this product. Keep this manual in a safe place until this product is
discarded.
• For how to use an option card, refer to the installation and instruction manuals for that option card.
Fuji Electric Co., Ltd.

Instruction Manual

INR-SI47-1038g-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRENIC-Lift series and is the answer not in the manual?

Questions and answers

Rasco
January 27, 2025

يوجد صفير في المحرك منذ بداية التشغيل

0
1 comments:
Mr. Anderson
May 14, 2025

A whistling noise in the Fuji Electric series motor from the start of operation can be caused by using a general-purpose motor with an inverter, as the motor noise level is higher than when using a commercial power supply. Increasing the carrier frequency of the inverter can help reduce the noise.

This answer is automatically generated

0

Related Manuals for Fuji Electric FRENIC-Lift series

Summary of Contents for Fuji Electric FRENIC-Lift series

  • Page 1: Instruction Manual

    Instruction Manual Designed for Elevating Machinery Thank you for purchasing our FRENIC-Lift series of inverters. • This product is designed to drive a three-phase induction motor and synchronous motor. Read through this instruction manual and be familiar with the handling procedure for correct use.
  • Page 2 Copyright © 2005-2011 Fuji Electric Systems Co., Ltd. All rights reserved. No part of this publication may be reproduced or copied without prior written permission from Fuji Electric Co., Ltd. All products and company names mentioned in this manual are trademarks or registered trademarks of their respective holders.

  • Page 3: Preface

    Preface Thank you for purchasing our FRENIC-Lift series of inverters. FRENIC-Lift is an inverter designed to drive a three-phase induction motor (hereafter called an induction motor) and a three-phase permanent magnet synchronous motor (hereafter called a synchronous motor) for exclusively controlling elevating machinery.
  • Page 4 Installation • Install the inverter on a nonflammable material such as metal. Otherwise fire could occur. • Do not place flammable matter nearby. Doing so could cause fire. • Using an optional DC reactor makes human body easily touch any live parts of inverters. In this case, take countermeasures such as installing the inverter in a place that easily protects human body from electric shock.
  • Page 5 • Ensure that the number of input phases and the rated voltage of the product match the number of phases and the voltage of the AC power supply to which the product is to be connected. Otherwise fire or an accident could occur. •...

  • Page 6: General Precautions

    • Do not turn the main circuit power (circuit breaker) ON or OFF in order to start or stop inverter operation. Doing so could cause failure. • Do not touch the heat sink because they become very hot. Doing so could cause burns. •...

  • Page 7: Precautions For Use

    Precautions for use Driving a 400V When driving a 400V general-purpose motor with an inverter using ex- general-purpose tremely long wires, damage to the insulation of the motor may occur. Apply motor the inverter after consulting the motor maker. When the inverter is used to run a general-purpose motor, the temperature Torque characte- of the motor becomes higher than when it is operated using a commercial ristics and tem-...
  • Page 8 Install a recommended molded case circuit breaker (MCCB) or resi- Installing an dual-current-operated protective device (RCD)/earth leakage circuit MCCB or breaker (ELCB) (with overcurrent protection) in the primary circuit of the RCD/ELCB inverter to protect the wiring. Ensure that the circuit breaker capacity is equivalent to or lower than the recommended capacity.
  • Page 9 Select an inverter according to the applicable motor ratings listed in the standard specifications table for the inverter. Driving gener- When high starting torque is required or quick acceleration or deceleration al-purpose motor Selecting is required, select an inverter with a capacity one size greater than the inverter standard.

  • Page 10: How This Manual Is Organized

    This chapter lists specifications including output ratings, control system, external dimensions and protective functions. Chapter 9 LIST OF PERIPHERAL EQUIPMENT AND OPTIONS This chapter describes main peripheral equipment and options which can be connected to the FRENIC-Lift series of inverters. Icons The following icons are used throughout this manual.

  • Page 11: Table Of Contents

    Table of Contents Preface ..............i Chapter 6 TROUBLESHOOTING ........6-1 Safety precautions ............. i 6.1 Before Proceeding with Troubleshooting ....6-1 Precautions for use ............v 6.2 If No Alarm Code Appears on the LED Monitor ..6-2 How this manual is organized ..........viii 6.2.1 Motor is running abnormally ......

  • Page 12: Chapter 1 Before Using The Inverter

    1st week of January. The 1st week of January is indicated as '01'. Production year: Last digit of year If you suspect the product is not working properly or if you have any questions about your product, contact your Fuji Electric representative.

  • Page 13: External View And Terminal Blocks

    1.2 External View and Terminal Blocks (1) Outside and terminal block views Front cover Screw Wiring guide Sub nameplate Main nameplate Dummy cover Control circuit terminal block Warning plate Main circuit terminal block Front cover Cooling fans (a) FRN2.2LM1S-7 . FRN4.0LM1S-4 Terminal block cover Cooling fans Dummy cover...
  • Page 14 (2) Warning plates Figure 1.3 Warning Plates (3) Terminal block location Main circuit Control circuit Control circuit terminal block terminal block terminal block Main circuit terminal block (a) FRN2.2LM1S-7 , FRN4.0LM1S-4 (b) FRN15LM1S-4 Control circuit terminal block Main circuit terminal block (c) FRN30LM1S-4 Figure 1.4 Main and Control Circuit Terminal Block Location Note: A box ( ) in the above figure replaces C, E, A or J depending on the shipping destination.

  • Page 15: Transportation

    1.3 Transportation • When carrying an inverter, always support its bottom at the front and rear sides with both hands. Do not hold covers or individual parts only. You may drop the inverter or break it. 1.4 Storage Environment 1.4.1 Temporary storage Store the inverter in an environment that satisfies the requirements listed in Table 1.1.

  • Page 16: Operating Environment

    Chapter 2 MOUNTING AND WIRING OF THE INVERTER 2.1 Operating Environment Install the inverter in an environment that satisfies the requirements listed in Table 2.1. Table 2.1 Environmental Requirements Table 2.2 Output Current Derating Factor in Relation to Altitude Item Specifications Output current Altitude...
  • Page 17 When employing external cooling At the shipment time, the inverter is set up for mount inside your equipment or enclosure so that cooling is done all internally. To improve cooling efficiently, you can take the heat sink out of the equipment or the enclosure (as shown on the right) so that cooling is done both internally and externally (this is called "external cooling").
  • Page 18 1) Remove all of the base fixing screws from the top and bottom of the inverter. Also remove the case fixing screws from the top. (The case fixing screws are not necessary in external cooling. Store them for future use. On the bottom are no case fixing screws.) 2) Secure the top mounting base to the center of the inverter with the base fixing screws, using case fixing screw holes.
  • Page 19 (3) Mounting direction Horizontal layout is recommended when two or more inverters are to be installed in an equipment or enclosure. As long as the ambient temperature is 40°C or lower, inverters may be mounted side-by-side without any gap between them. If it is necessary to mount the inverters vertically, install a partition plate or the like between the inverters so that any heat radiating from an inverter will not affect the one/s above.

  • Page 20: Wiring

    2.3 Wiring Follow the procedure below. (In the following description, the inverter has already been installed.) 2.3.1 Removing and mounting the terminal block (TB) cover and the front cover (1) For inverter with a capacity of 4.0 kW and Single Phase 2.2kW. 1) First loosen the front cover fixing screw, slide the cover downward holding its both sides, tilt it toward you, and then pull it upward, as shown below.
  • Page 21 Mounting the covers Put the front cover to the inverter case so that its bottom engages with the hinges provided on both sides of the case. Push the front cover against the case of the inverter and slide it upward until the latch at its top engages with the case.
  • Page 22 (3) For inverters with a capacity of 30 kW or above Removing and mounting the cover To remove the front cover, loosen the four fastening screws, hold it with both hands, and slide it upward. (Refer to Figure 2.7.) Put the front cover back in reverse order of .

  • Page 23: Removing And Retracting The Cable Guide Plate

    2.3.2 Removing and retracting the cable guide plate To secure the protective structure IP20, FRENIC-Lift builds in the cable guide plate for external wiring connections. To use it follow the steps listed below. Removing the cable guide plate Before to proceed, remove the terminal block cover as shown below left. Remove the screw fastening the cable guide plate, and pull out the plate.

  • Page 24: Terminal Arrangement And Screw Specifications

    2.3.3 Terminal arrangement and screw specifications The figures below show the arrangement of the main and control circuit terminals which differs according to inverter type. The two terminals prepared for grounding, which are indicated by the symbol G in Figures A to C, make no distinction between the power supply side (primary circuit) and the motor side (secondary circuit).
  • Page 25 Terminal board illustrated in except Figure A. Take an attention for this structure to connect wires to main output (secondary) terminals. Figure A Figure B Charging Light Charging Light Figure C Figure D Charging Light Charging Light Figure E Charging Light Figure F Charging Light L1/L...
  • Page 26 The control circuit terminals (common to all models) 1) For inverters with CAN port (FRN _ _ _ LM1S-2C, -2E, -2A and -2J) (FRN _ _ _ LM1S-4C, -4E, -4A and -4J) 2) For inverters without CAN port (FRN _ _ _ LM1S-2EA, -2AA and -2JA) (FRN _ _ _ LM1S-4EA, -4AA and -4JA) Screw size: M3 Screw size: M2...

  • Page 27: Recommended Wire Sizes

    2.3.4 Recommended wire sizes Table 2.9 lists the recommended wire sizes. The recommended wire sizes for the main circuits are examples of using HIV single wire (for 75°C) at an ambient temperature of 50°C. Table 2.9 Recommended Wire Sizes ) * 1 Recommended wire size (mm Appli- Main circuit...

  • Page 28: Wiring Precautions

    2.3.5 Wiring precautions Follow the rules below when performing wiring for the inverter. (1) Make sure that the source voltage is within the rated voltage range specified on the nameplate. (2) Be sure to connect the three-phase power wires to the main circuit power input terminals L1/R, L2/S and L3/T of the inverter.
  • Page 29 Follow the procedure below for wiring and configuration of the inverter. Figure 2.11 illustrates the wiring procedure with peripheral equipment. Wiring procedure Grounding terminals ( G) Inverter output terminals (U, V, W, and DC reactor connection terminals (P1 and P(+)) * DC link bus terminals (P(+) and N(-)) * Main circuit power input terminals (L1/R, L2/S and L3/T or L1/L, L2/N) Auxiliary power input terminals for the control circuit (R0 and T0) *...
  • Page 30 Grounding terminals ( G) Be sure to ground either of the two grounding terminals for safety and noise reduction. Install FRENIC-Lift in compliance with the local regulations, Described below for an example, a procedure shows an installation of the inverter in compliance with regulations in Japan. E.g.
  • Page 31 These are provided for the DC link bus powered system. Connect these terminals with terminals P(+) and N (-) of an optional regenerative converter or the equivalent. Consult your Fuji Electric representative if these terminals are to be used. Main circuit power input terminals, L1/R, L2/S, and L3/T (three-phase input) or L1/L, L2/N...
  • Page 32 Braking resistor connection terminals, P(+) and DB 1) Connect terminals P and DB of an external braking resistor to terminals P(+) and DB on the main circuit terminal block. (For the braking resistor built-in type, refer to the next page.) 2) When using an external braking resistor, arrange the inverter and braking resistor to keep the wiring length to 5 m or less and twist the two wires or route them together in parallel.

  • Page 33: Wiring For Control Circuit Terminals

    2.3.7 Wiring for control circuit terminals In general, sheaths and covers of the control signal cables and wires are not specifically designed to withstand a high electric field (i.e., reinforced insulation is not applied). Therefore, if a control signal cable or wire comes into direct contact with a live conductor of the main circuit, the insulation of the sheath or the cover might break down, which would expose the signal wire to a high voltage of the main circuit.
  • Page 34 Table 2.13 Symbols, Names and Functions of the Control Circuit Terminals Symbol Name Functions [12] Voltage (1) The reference speed (frequency) follows the input voltage level on terminal [12]. input - 0 to ±10 VDC/0 to ±100 (%) - Definition of 100%: Maximum speed (F03) (2) The reference torque bias follows the input voltage level on terminal [12].
  • Page 35 Table 2.13 Continued Symbol Name Functions [11] Analog Two common terminals for analog input and output signal terminals [12], [C1], and [V2]. (Two common These terminal are electrically isolated from terminals [CM]s and [CMY]. terminals) - Since low level analog signals are handled, these signals are especially susceptible to the external noise effects.
  • Page 36 Table 2.13 Continued Symbol Name Functions [X1] Digital (1) The various signals such as coast-to-stop, alarm from external equipment, and input 1 multistep speed commands can be assigned to terminals [X1] to [X8], [FWD], [REV], and [EN] by setting function codes E01 to E08, E98, and E99. For details, refer to [X2] Digital Chapter 5, Section 5.2 "Overview of Function Codes."...
  • Page 37 Table 2.13 Continued Symbol Name Functions Turning on or off [X1] to [X8], [FWD], [REV], or [EN] using a relay contact Figure 2.19 shows two examples of a circuit that turns on or off control signal input [X1] to [X8], [FWD], [REV], or [EN] using a relay contact.
  • Page 38 Table 2.13 Continued Symbol Name Functions [Y1] Transistor (1) Various signals such as inverter running, speed/freq. arrival and overload early output 1 warning can be assigned to the terminal [Y1] by setting function code E20 to E23. Refer to Chapter 5, Section 5.2 "Overview of Function Codes" for details. (2) Switches the logic value (1/0) for ON/OFF of the terminals between [Y1] to [Y4] and [CMY].
  • Page 39 Table 2.13 Continued Symbol Name Functions [PAO] A-phase These terminals output the inputs PA and PB from the pulse encoder head-to-head in pulse output a pair of open collector outputs [PBO] B-phase pulse output Figure 2.23 Output Circuits for the Pulse Encoder (a pair of PA/PB) Specifications Item Specifications...
  • Page 40 Table 2.13 Continued Symbol Name Functions RJ-45 Standard (1) Used to connect the inverter with PC or PLC using RS485 port. The inverter connector RJ-45 supplies the power to the keypad through the extension cable for keypad. for the connector (2) Remove the keypad from the standard RJ-45 connector, and connect the RS485 keypad communications cable to control the inverter through the PC or PLC...
  • Page 41 Table 2.13 Continued Symbol Name Functions [PO] Power Use this terminal to supply a power to the pulse encoder mounted outside the terminal for inverter. the pulse Switching the slide switch SW5 switches its output voltage between 15 VDC and 12 encoder VDC.

  • Page 42: Setting Up Slide Switches

    2.3.8 Setting up slide switches Before setting up any internal control switches, turn the power OFF. For the inverters with a capacity of 22 kW or below, wait at least 5 minutes; for the inverters with a capacity of 30 kW or above, wait at least 10 minutes.

  • Page 43: Cautions Relating To Harmonic Component, Noise, And Leakage Current

    Figure 2.27 shows location of the configuration slide switches. Switching example SINK SOURCE SINK SINK SOURCE SOURCE Control circuit terminal block Figure 2.27 Location of the Slide Switches 2.4 Cautions Relating to Harmonic Component, Noise, and Leakage Current (1) Harmonic component Input current to an inverter includes harmonic components, which may affect other loads and power factor correcting capacitors that are connected to the same power source as the inverter.
  • Page 44 (3) Leakage current Harmonic component current generated by insulated gate bipolar transistors (IGBTs) switching on/off inside the inverter becomes leakage current through stray capacitors of inverter input and output wires or a motor. If any of the problems listed below occur, take an appropriate measure against them. Table 2.15 Leakage Current Countermeasures Problem Measures...

  • Page 45: Chapter 3 Operation Using The Keypad

    Chapter 3 OPERATION USING THE KEYPAD The FRENIC-Lift has no standard keypad. Using the optional multi-function keypad allows you to start and stop the motor, monitor running status, and switch to the menu mode. You may also set the function code data, monitor I/O signal states, maintenance information, and alarm information.

  • Page 46: Chapter 4 Running The Motor

    U, V and W respectively and that the grounding wires are connected to the ground electrodes correctly. Note that FRENIC-Lift series is designed for three phase input and driving three phase motors. • Do not connect power supply wires to the inverter output terminals U, V, and W. Otherwise, the inverter may be broken if you turn the power ON.

  • Page 47: Preparation Before Running The Motor For A Test--Setting Function Code Data

    4.1.3 Preparation before running the motor for a test--Setting function code data Before starting running the motor, set function code data specified in Table 4.1 to the motor ratings and your system design values. For the motor, check the rated values printed on the nameplate of the motor. For your system design values, ask system designers about them.
  • Page 48 Tuning procedure What follows gives you a tuning procedure of the inverter for a motor using a multi-function keypad (option.) 1) Preparation Referring to the rating plate on the motor, set the following function codes to their nominal ratings: • F04: Rated Speed •...
  • Page 49 An undervoltage or an alarm has been occurred. If any of these conditions has occurred, either eliminate the abnormal or error factor(s) and perform tuning again, or contact your Fuji Electric representative. Tuning offset angle of the magnet pole Before to proceed to running a synchronous motor, be sure to tune offset angle of the magnet pole. For the tuning procedure, refer to the instruction manual of the option card.

  • Page 50: Test Run

    4.1.4 Test run If the user set the function codes wrongly or without completely understanding this Instruction Manual and the (INR-SI-47-1068 ), the motor may rotate with a torque or at a speed not permitted for FRENIC-Lift Reference Manual the machine. Accident or injury may result.

  • Page 51: Chapter 5 Function Codes

    Chapter 5 FUNCTION CODES 5.1 Function Code Tables Function codes enable the FRENIC-Lift inverters to be set up to match your system requirements. Each function code consists of a 3-letter string. The first letter is an alphabet that identifies its group and the following two letters are numerals that identify each individual code in the group.
  • Page 52 Using negative logic for programmable I/O terminals The negative logic signaling system can be used for the digital input and output terminals by setting the function code data specifying the properties for those terminals. Negative logic refers to the inverted ON/OFF (logical value 1 (true)/0 (false)) state of input or output signal.
  • Page 53 • The torque vector control is available from 4.0 to 22kW of 400V series. Please do not use it with other products. Otherwise injuries could occur. In the torque control, data of some function codes related to the control may be enabled or disabled. Marks to classify these situations in the torque control column of the function code table on the following pages as shown below.
  • Page 54 F codes: Fundamental Functions Change Data Default Torque Code Name Data setting range Increment Unit when copying setting Control running Data Protection 0000 : Disable data protection 0000 (Function code data can be edited) 0001 : Enable data prot ection Note: This setting is effective if H99 = 0000 (Password entry) 0001 to FFFF...
  • Page 55 E codes: Extension Terminal Functions Change Data Default Torque Code Name Data setting range Increment Unit when copying setting Control running Command Assignment to: Selecting function code data assigns the corresponding function to [X1] terminals [ X1] to [X8] as listed below. [X2] Setting t he value of 1000s in parentheses( ) shown below assigns [X3] a negative logic input to a terminal.
  • Page 56 (E code continued) Change Data Default Torque Code Name Data setting range Increment Unit when copying setting Control running Signal Assignment to: Selecting function code data assigns the corresponding function to (Transistor signal) terminals [ Y1] to [Y4], [Y5A/C] , and [30A/B/C] as listed below. [Y1] Setting t he value of 1000s in parentheses ( ) shown below assigns [Y2] a negative logic output to a terminal.
  • Page 57 (E code continued) Change Data Default Torque Code Name Data setting range Increment Unit when copying setting Control running LED Monit or 0: Speed monitor (Select by E48) 3: Output current 4: Output voltage 8: Calculated torque 9: Input power 18: Reference torque 19: Torque bias balance adjustment (Off set) (BTBB) 20: Torque bias gain adjustment (BTBG )
  • Page 58 C codes: Control Functions Change Data Default Torque Code Name Data setting range Increment Unit when copying setting Control running C01 Battery Operation (Torque limit level 0 to 100 for drive side) 999: Torque limit level is F44. (Torque limit time) 0.0: C01 is eff ective during bat tery opera tion. 0.
  • Page 59 H codes: High Performance Functions Change Data Default Torque Code Name Data setting range Increment Unit when copying setting Control running H03 Data Initialization 0: Disable initialization 1: Init ialize all function code data to t he factory defaults H04 Auto-resetting 0: Disable Times (Times) 1 to 10...
  • Page 60 y codes: Link Functions Change Data Default Torque Code Name Data setting range Increment Unit when copying setting Control running RS485 Communication (Station address) 1 to 255 (Communications error 0: Immediately trip with alarm processing) 1: Trip with alarm after running for t he period specified by timer y03 2: Retry during the period specified by timer y03.
  • Page 61 L codes: Lift Functions Change Data Default Torque Code Name Data setting range Increment Unit when copying setting Control running Pulse Encoder (Selection) A/B phase ABS signal 0: 12/15 V None - Complementary - Open collector 5 V Line driver 1: 12/15 V - Complementary - Open collector...
  • Page 62 (L code continued) Change Data Default Torque Code Name Data setting range Increment Unit when copying setting Control running (P const ant at high speed) 0. 01 to 200.00 0.01 40.00 (I const ant at high speed) 0. 001 to 1.000 0.001 0.100 (P constant at low speed) 0.
  • Page 63 (L code continued) Change Data Default Torque Code Name Data setting range Increment Unit when copying setting Control running Brake Control (Mode) 1: Brake control by time 2: Brake control by output current (Operation level) 0 to 200 (ON delay time) 0. 00 to 10.00 0.01 0.00 (OFF delay time) 0.

  • Page 64: Chapter 6 Troubleshooting

    (1) First, check that the inverter is correctly wired, referring to Chapter 2, Section 2.3.6 "Wiring for main circuit terminals and grounding terminals." (2) Check whether an alarm code is displayed on the LED monitor. If any problems persist after the above recovery procedure, contact your Fuji Electric representative.

  • Page 65: If No Alarm Code Appears On The Led Monitor

    6.2 If No Alarm Code Appears on the LED Monitor 6.2.1 Motor is running abnormally [ 1 ] The motor does not rotate. Possible Causes What to Check and Suggested Measures (1) No power supplied to the Check the input voltage, output voltage and interphase voltage unbalance. inverter.
  • Page 66 Possible Causes What to Check and Suggested Measures (9) Overload Measure the output current. Lighten the load or change the inverter for an upper size. Check that a mechanical brake is in effect. Release the mechanical brake. (10) Torque generated by the Check the data of function codes F04, F05, and P01 to P12.
  • Page 67 Possible Causes What to Check and Suggested Measures (10) Miss-setting of pulse Check the magnet pole angle detection data of L02 (Pulse Encoder count of the encoder (Resolution)). Set up L02 for correct data. [ 3 ] The motor runs in the opposite direction to the command. Possible Causes What to Check and Suggested Measures (1) Wiring has been...
  • Page 68 Possible Causes What to Check and Suggested Measures (5) The machinery having low Check data of function codes auto speed regulator (ASR). stiffness in a load causes Decrease L36 (ASR (P constant at high speed)) and L38 (ASR (P hunting, or the output constant at low speed)).

  • Page 69: Problems With Inverter Settings

    Possible Causes What to Check and Suggested Measures (6) The V2/PTC switch was Check whether control terminal [V2] is not set to the PTC thermistor input turned to PTC (when [V2] mode. Confirm SW4. (Refer to Chapter 2 Section 2.3.8 "Setting up slide was being used).

  • Page 70: If An Alarm Code Appears On The Led Monitor

    6.3 If an Alarm Code Appears on the LED Monitor Quick reference table of alarm codes Alarm Alarm Name Refer to Name Refer to code code 6-12 Memory error 6-12 Overcurrent Keypad communications error 6-12 CPU error 6-13 Option communications error 6-13 Overvoltage Option error...
  • Page 71 Possible Causes What to Check and Suggested Measures (4) The acceleration/ Check that the motor generates enough torque required during deceleration time was too acceleration/deceleration. That torque is calculated from the moment of inertia for the load and the acceleration/deceleration time. short.
  • Page 72 Possible Causes What to Check and Suggested Measures (2) The power supply voltage Measure the input voltage. did not reach the range of Increase the voltage to within that of the specifications. the inverter’s specifications. (3) Peripheral equipment for To locate the peripheral equipment malfunctioned or incorrect connection, the power circuit measure the input voltage.
  • Page 73 Possible Causes What to Check and Suggested Measures (3) Cumulative running time Check the cumulative running time of the cooling fan. of the cooling fan Replace the cooling fan. exceeded the standard period for replacement, or Visually check whether the cooling fan rotates abnormally. the cooling fan Replace the cooling fan.
  • Page 74 Possible Causes What to Check and Suggested Measures (3) Load was too heavy. Measure the output current. Lower the temperature around the motor. Increase F26 (Motor Sound (Carrier frequency)). (4) The set operation level Check the thermistor specifications and recalculate the detection voltage. (H27) of the PTC Reconsider the data of function code H27 (PTC Thermistor Input (Level)).
  • Page 75 This problem was caused by a failure of the printed circuit board (PCB) (on which the CPU is mounted). Contact your Fuji Electric representative. [ 12 ] Keypad communications error Problem A communications error occurred between the keypad and the inverter.
  • Page 76 [ 13 ] CPU error Problem A CPU error (e.g. erratic CPU operation) occurred. Possible Causes What to Check and Suggested Measures (1) A high intensity noise was Check if appropriate noise control measures have been implemented (e.g., given to the inverter. correct grounding and routing of control and main circuit wires).
  • Page 77 [ 16 ] Run operation error Problem You incorrectly operated the inverter. Possible Causes What to Check and Suggested Measures (1) Wrong setup of multistep Check whether all function codes of L11 to L18 (Multistep Speed Command speed commands Combination) are configured with different data each other. Reconfigure the commands.
  • Page 78 [ 18 ] RS485 communications error Problem A communications error occurred during RS485 communications. Possible Causes What to Check and Suggested Measures (1) Conditions for Compare the settings of the y codes (y01 to y10) with those of the host communications differ equipment.
  • Page 79 Possible Causes What to Check and Suggested Measures (1) The option card is broken. You need to replace the option card. Consult your Fuji Electric representative. [ 20 ] EN terminal circuit failure Problem The detection circuit for EN terminal signal is broken.
  • Page 80 [ 23 ] Over speed error The motor runs in excess-speed (where Motor speed ≥ (F03 × 1.2)) Problem Possible Causes What to Check and Suggested Measures (1) Wrong configuration Check relationship between set data for P01 (Motor (number of poles)) and L02 (Pulse Encoder (Resolution)).
  • Page 81 [ 24 ] Out of control speed Problem An out of control error (PG failure) occurs between the speed command and the speed feedback. Possible Causes What to Check and Suggested Measures (1) Wrong configuration Check data of function code L90, L91, and L92. If the speed fluctuation is within the allowable range, then set data of L90 (PG Error Detection (Mode)) up to 0.
  • Page 82 [ 25 ] Over torque current Problem Reference torque current became excessive. Possible Causes What to Check and Suggested Measures (1) The inverter output wiring Wiring from the inverter output terminal (U, V, and W) to the motor is has been disconnected. confirmed with the tester.

  • Page 83: If An Abnormal Pattern Appears On The Led Monitor While No Alarm Code Is Displayed

    6.4 If an Abnormal Pattern Appears on the LED Monitor while No Alarm Code is Displayed [ 1 ] – – – – (center bar) appears Problem A center bar (– – – –) has appeared on the LCD monitor. Possible Causes What to Check and Suggested Measures (1) Connection to the keypad...

  • Page 84: Chapter 7 Maintenance And Inspection

    Chapter 7 MAINTENANCE AND INSPECTION Perform daily and periodic inspection to avoid trouble and keep reliable operation for a long time. Take care of the following items during work. • Before starting inspection, turn the power OFF. For the inverters with a capacity of 22 kW or below, wait at least 5 minutes;...
  • Page 85 Table 7.1 Continued Check part Check item How to inspect Evaluation criteria 1) Abnormal noise and excessive 1) Visual or hearing 1), 2), 3), 4), 5) Structure such vibration inspection as frame and No abnormalities cover 2) Loose screws (tightened parts) 2) Retighten.

  • Page 86: List Of Periodical Replacement Parts

    Each part of the product has its own service life that will vary according to the environmental and operating conditions. It is recommended that the following parts be replaced as specified below. When the replacement is necessary, contact your Fuji Electric representative. Table 7.2 Replacement Parts...
  • Page 87 -2 Measuring the capacitance of the DC link bus capacitor (during power-off time under ordinary operating condition) In general, the discharging condition of the DC link bus capacitor during a power-off time under the ordinary operating condition at the end user’s installation is different from that under which the initial measurement is conducted at the time of factory shipment.

  • Page 88: Measurement Of Electrical Amounts In Main Circuit

    (2) Early warning of lifetime alarm For the components listed in Table 7.3, you can get an early warning of lifetime alarm at one of the transistor output terminals ([Y1] to [Y4]) and the relay contact terminals ([Y5A] - [Y5C], and [30A/B/C]) as soon as any of the conditions listed under the "Judgment level"...

  • Page 89: Insulation Test

    A dielectric strength test will cause breakage of the inverter similarly to the Megger test if the test procedure is wrong. When the dielectric strength test is necessary, contact your Fuji Electric representative. Megger test of main circuit Use a 500 VDC Megger and shut off the main power supply without fail during measurement.

  • Page 90: Inquiries About Product And Guarantee

    7.6 Inquiries about Product and Guarantee When making an inquiry Upon breakage of the product, uncertainties, failure or inquiries, report the following information to your Fuji Electric representative. Inverter type (Refer to Chapter 1, Section 1.1.) SER No. (serial number of equipment) (Refer to Chapter 1, Section 1.1.) Date of purchase Inquiries (for example, point and extent of breakage, uncertainties, failure phenomena, and other circumstances)

  • Page 91: Chapter 8 Specifications

    Chapter 8 SPECIFICATIONS 8.1 Standard Models 8.1.1 Three-phase 200 V class series Item Specifications Type FRN___LM1S-2_ 18.5 Nominal applied motor [kW] 18.5 Rated capacity [kVA] 10.2 Rated voltage Three-phase 200V-240V,50/60Hz Rated current 27.0 37.0 49.0 63.0 74.0 90.0 Overload capacity [A] 54.0 74.0 98.0...
  • Page 92 8.1.2 Three-phase 400 V class series Item Specifications Type FRN___LM1S-4_ 18.5 Nominal applied motor [kW] 18.5 Rated capacity [kVA] 10.2 Three-phase Rated voltage Three-phase 380V-480V, 50/60Hz 380V-460V，50/60Hz Rated current 13.5 18.5 24.5 32.0 39.0 45.0 60.0 Overload capacity [A] 18.0 27.0 37.0 49.0...
  • Page 93 8.1.3 Single-phase 200 V class series Item Specifications Type FRN___LM1S-7 Nominal applied motor [kW] Rated capacity [kVA] Rated voltage Three -phase 200V-220V, 50/60Hz Rated current Overload capacity [A] (Permissible energizing time) (3s) Rated frequency [Hz] 50, 60Hz Main power supply Single -phase, 200 to 240V, 50/60Hz Phases,Voltage,Frequency Auxiliary control power input...

  • Page 94: Common Specifications

    8.2 Common Specifications Item Description Remarks Vector control with PG (for an asynchronous motor) Control system Vector control with PG (for a synchronous motor) Torque vector control (Open loop control for an asynchronous motor) 120 Hz (3600 r/min for 4-pole motor) in the equivalent frequency Max.

  • Page 95: Terminal Specifications

    8.3 Terminal Specifications 8.3.1 Terminal functions For details about the main and control circuit terminals, refer to Chapter 2, Sections 2.3.6 and 2.3.7 (Table 2.12), respectively. 8.3.2 Basic wiring diagram (Note 8) Power supply Please refer to 8.1.1 or 8.1.2, 8.1.3 Aux.power input for control circuits Please refer to...
  • Page 96 (Note 1) When connecting a DC reactor (DCR), first remove the short bar between terminals P1 and P(+). (Note 2) To protect wiring, insert a molded case circuit breaker (MCCB) or an earth leakage circuit breaker (ELCB) (with overcurrent protection) of the type recommended for the inverter between the commercial power supply and the inverter. Do not use a circuit breaker with a capacity exceeding the recommended capacity.

  • Page 97: External Dimensions

    8.4 External Dimensions 8.4.1 Standard models Unit: mm FRN2.2LM1S-7 FRN4.0LM1S-4...
  • Page 98 Power Dimensions (mm) supply Type φA φB voltage FRN5.5LM1S-2 FRN7.5LM1S-2 196 63.5 46.5 46.5 118.5 96.5 136.7 Three- FRN11LM1S-2 phase FRN15LM1S-2 200 V FRN18.5LM1S-2 130 166.2 FRN22LM1S-2 FRN5.5LM1S-4 FRN7.5LM1S-4 196 63.5 46.5 46.5 118.5 96.5 136.7 Three- FRN11LM1S-4 phase FRN15LM1S-4 400 V FRN18.5LM1S-4 130 166.2...
  • Page 99 Unit: mm Power Dimensions (mm) supply Type φA W4 W5 voltage FRN30LM1S-4 320 240 304 310.2 Three- 550 530 phase FRN37LM1S-4 355 275 339 345.2 400 V FRN45LM1S-4 615 595 Note: A box ( ) in the above table replaces C (China), E (EU), A (Asia) or J (Japan) depending on the shipping destination.

  • Page 100: Protection Features

    8.5 Protection Features Alarm monitor Name Description output displays [30A/B/C] Overcurrent The inverter is stopped for protection against overcurrent During protection caused by an overload. acceleration Short circuit The inverter is stopped for protection against overcurrent protection caused by a short circuit in the output circuit. During deceleration Grounding...

  • Page 101: Options

    Alarm monitor Name Description output displays [30A/B/C] Motor Electronic The inverter is stopped upon an electronic thermal function setting protection thermal to protect the motor. The standard motor and the inverter motor are protected in the range of all the frequencies. The operation level and thermal time constant can be set.
  • Page 102 Alarm monitor Name Description output displays [30A/B/C] Broken wiring The inverter detects a broken wiring connection in the pulse encoder and stops itself. in the PG This feature takes effect for some models of the PG interface card. CAN bus An abnormal communication with the main body of the inverter is detected when communication the CAN bus is used, and the inverter is stopped.

  • Page 103: Chapter 9 List Of Peripheral Equipment And Options

    Chapter 9 LIST OF PERIPHERAL EQUIPMENT AND OPTIONS The table below lists the main peripheral equipment and options that are connected to the FRENIC-Lift. Use them in accordance with your system requirements. Name of peripheral Function and application equipment Molded case MCCBs are designed to protect the power circuits between the power control board and circuit breaker inverter’s main terminals (L1/R, L2/S and L3/T) from overload or short-circuit which in turn...
  • Page 104 Name of option Function and application Insert an MC in the power source side of the inverter in order to: Magnetic 1) Forcibly cut off the inverter from the power source (generally, commercial/factory power contactor (MC) lines) with the protection function built into the inverter, or with the terminal signal line. 2) Stop the inverter operation in an emergency when the inverter cannot interpret the stop command due to internal/external circuit failures.
  • Page 105 FRENIC5000G11 (11 kW) series. Attachment for This adapter allows you to mount your FRENIC-Lift series of inverters on the panel in such a external cooling way that the heat sink assembly may be exposed to the outside. Using this adapter greatly...
  • Page 106 In no event will Fuji Electric Co., Ltd. be liable for any direct or indirect damages resulting from the application of the information in this manual.
  • Page 107 Fuji Electric Co., Ltd. Gate City Ohsaki, East Tower, 11-2, Osaki 1-chome, Shinagawa-ku, Tokyo 141-0032, Japan URL http://www.fujielectric.com/ 06-08 (B05/H06) XXCM...
