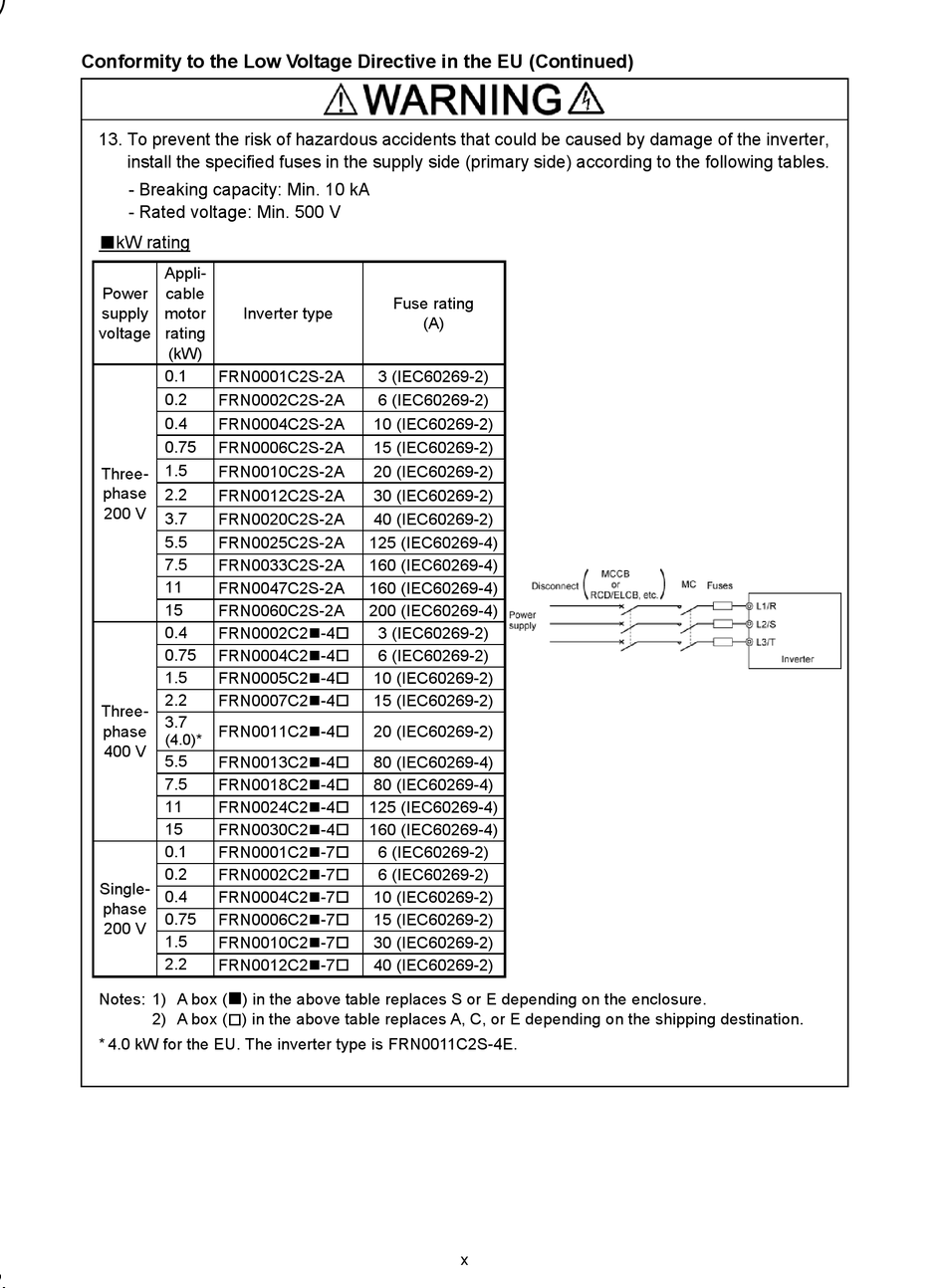

Conformity to the Low Voltage Directive in the EU (Continued)
13. To prevent the risk of hazardous accidents that could be caused by damage of the inverter,
install the specified fuses in the supply side (primary side) according to the following tables.
- Breaking capacity: Min. 10 kA
- Rated voltage: Min. 500 V
■kW rating
Appli-
Power cable
supply motor
voltage rating
(kW)
0.1
FRN0001C2S-2A
0.2
FRN0002C2S-2A
0.4 FRN0004C2S-2A
0.75
FRN0006C2S-2A
1.5
FRN0010C2S-2A
Three-
phase
2.2
FRN0012C2S-2A
200 V
3.7 FRN0020C2S-2A
5.5
FRN0025C2S-2A
7.5
FRN0033C2S-2A
11
FRN0047C2S-2A
15
FRN0060C2S-2A
0.4
FRN0002C2-4
0.75
FRN0004C2-4
1.5
FRN0005C2-4
2.2
FRN0007C2-4
Three-
3.7
phase FRN0011C2-4
(4.0)*
400 V
5.5 FRN0013C2-4
7.5 FRN0018C2-4
11 FRN0024C2-4
15
FRN0030C2-4
0.1
FRN0001C2-7
0.2
FRN0002C2-7
Single-
0.4
FRN0004C2-7
phase
0.75
FRN0006C2-7
200 V
1.5
FRN0010C2-7
2.2
FRN0012C2-7

Notes: 1) A box ( ) in the above table replaces S or E depending on the enclosure.
2) A box (  ) in the above table replaces A, C, or E depending on the shipping destination.
* 4.0 kW for the EU. The inverter type is FRN0011C2S-4E.
Fuse rating
Inverter type
3 (IEC60269-2)
6 (IEC60269-2)
10 (IEC60269-2)
15 (IEC60269-2)
20 (IEC60269-2)
30 (IEC60269-2)
40 (IEC60269-2)
125 (IEC60269-4)
160 (IEC60269-4)
160 (IEC60269-4)
200 (IEC60269-4)
3 (IEC60269-2)
6 (IEC60269-2)
10 (IEC60269-2)
15 (IEC60269-2)
20 (IEC60269-2)
80 (IEC60269-4)
80 (IEC60269-4)
125 (IEC60269-4)
160 (IEC60269-4)
6 (IEC60269-2)
6 (IEC60269-2)
10 (IEC60269-2)
15 (IEC60269-2)
30 (IEC60269-2)
40 (IEC60269-2)
