Input Board

1.3 Input Board
The input board contains an eight-channel ADC, SPDIF receiver, and USB connection. Buttons for MUTE,
RESET, and selection between 48-kHz and 96-kHz sample rate.
Physical structure for the input-USB board is illustrated in
10 Overview
USB Connector
USB Connect or
RESET Button (Board)
RESET but t on ( boar d )
ANALOG INPUT - Ch 1 and 2 ANALO G I NPUT - Ch 1 and 2
MUTE / UNMUTE
M UTE /UNM UTE
ANALOG INPUT - Ch 3 and 4
ANALO G I NPUT -Ch 3 and 4
ANALOG Sample Rate
ANALO G Sam pl e Rat e
ANALOG INPUT - Ch 5 and 6 ANALO G I NPUT -Ch 5 and 6
ANALOG INPUT - Ch 7 and 8 ANALO G I NPUT -Ch 7 and 8
Input Indicator
I nput i ndi cat or
DIGITAL INPUT - Optical
DI GI TAL I NPUT -O pt i cal
Digital Input Select
Di gi t ali nput sel ect
DIGITAL INPUT - Coaxial DI GI TAL I NPUT -Coaxi al

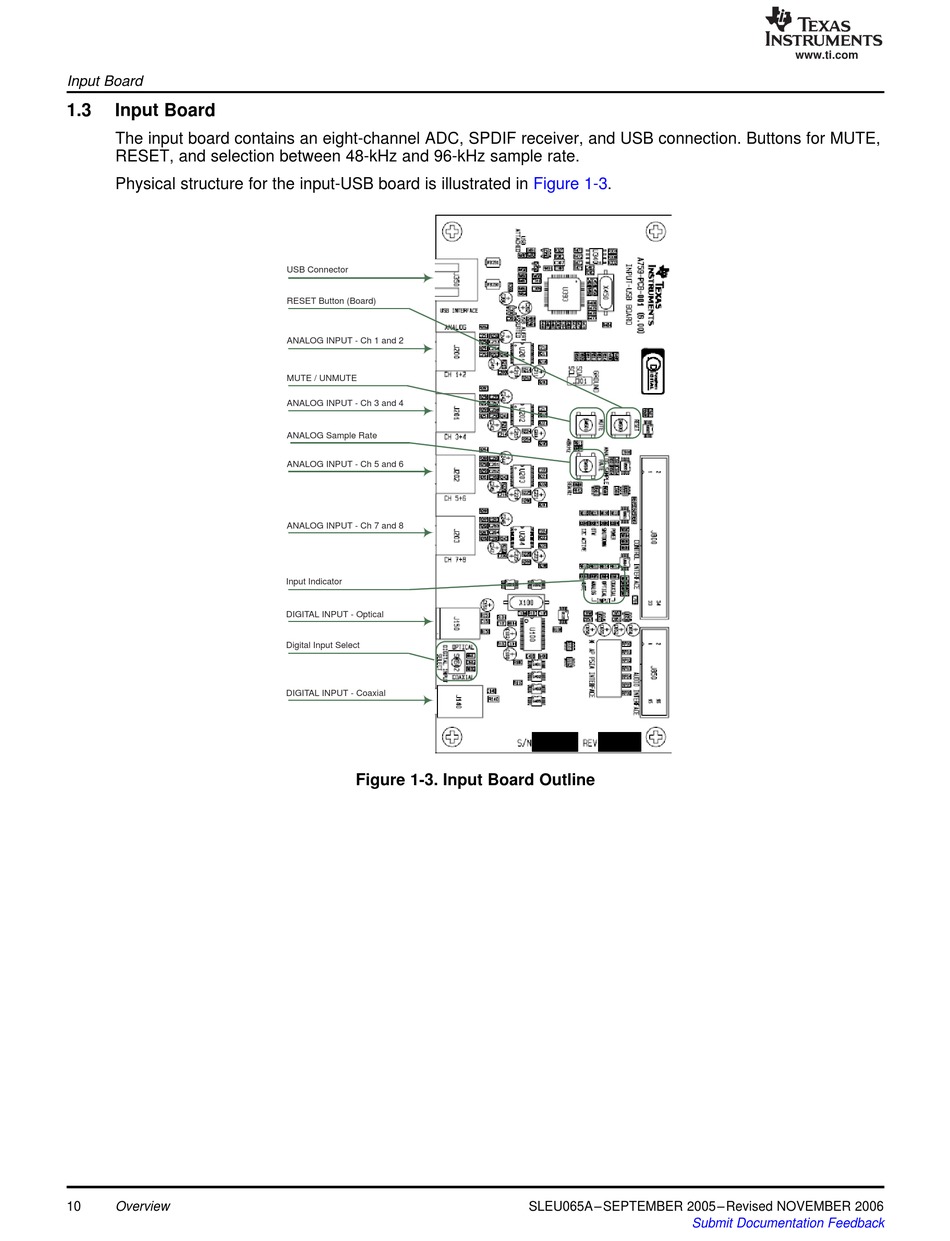

Figure 1-3. Input Board Outline
Figure 1-3.
