This user's guide describes the operation of the TAS5733L evaluation module (EVM). The EVM is
connected to the PurePath™ Console Motherboard (PPCMB) and is configured using PurePath Console 3
(PPC3) software. Visit the
The main contents of this document are:
Details for properly connecting a TAS5733L evaluation module (EVM) and the details of the EVM
Start-up procedure using PurePath Console 3 (PPC3) software with the correct plugin for the EVM
Quick-start guide for the common modes in which the TAS5733LEVM is used
Throughout this document, the abbreviation EVM and the term evaluation module are synonymous with
the TAS5733LEVM evaluation module, unless otherwise noted.
space
space
......................................................................................................................
1
Overview
....................................................................................................................
2
EVM Setup
3
Using the TAS5733LEVM with PurePath Console 3
4
Board Layout, Bill of Materials, and Schematic
1

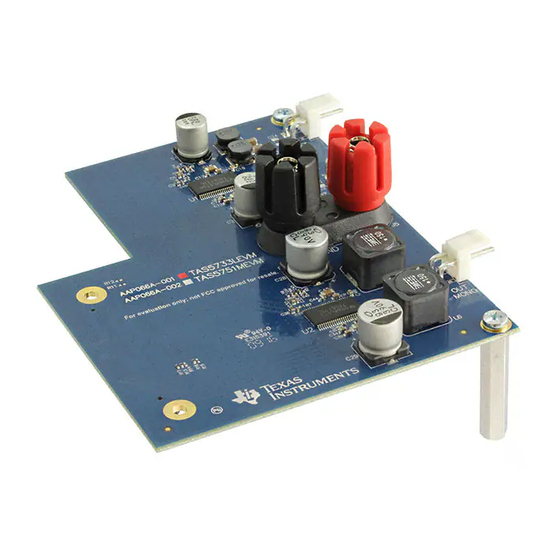

TAS5733L Evaluation Board
2
Evaluation Module and PurePath Console Motherboard Connection
3
TAS5733L Application in PurePath Console 3
4
TAS5733L Application Home Window
5
TAS5733LEVM Audio Processing Windows
6
Equalizer Window
7
Multiband AGL – Three-Band Crossover
8
Full-Band AGL
9
TAS5733LEVM
10
TAS5733L Layout
11
Bottom Layer Thermal Flow
12
TAS5733LEVM Optional Features
13
TAS5733LEVM Top Composite
14
TAS5733LEVM Top Layer
15
TAS5733LEVM Ground Layer
16
TAS5733LEVM Power Layer
17
TAS5733LEVM Bottom Layer
18
TAS5733LEVM Bottom Composite
19
TAS5733LEVM Stereo Device
20
TAS5733LEVM Mono Device
21
TAS5733LEVM PPCMB and Power Supply Connection
PurePath is a trademark of Texas Instruments.
SLOU439 – March 2016
Submit Documentation Feedback
e2e Audio Amplifiers
...............................................................................................
....................................................................................
............................................................................................................
.................................................................................
..............................................................................................................
.............................................................................................................
..........................................................................................................
..............................................................................................
.......................................................................................
..........................................................................................
................................................................................................
............................................................................................
.............................................................................................
............................................................................................
......................................................................................
...........................................................................................
.............................................................................................
Copyright © 2016, Texas Instruments Incorporated
TAS5733L Evaluation Module
forum for questions and other support issues.
Contents
....................................................................
........................................................................
List of Figures
................................................
...........................................................................
.............................................................................
.............................................................
User's Guide
SLOU439 – March 2016
TAS5733L Evaluation Module
2
3
4
14
2
3
4
5
7
8
9
11
14
14
15
15
16
16
17
17
18
18
21
22
23
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TAS5733L and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TAS5733L

  • Page 1 SLOU439 – March 2016 TAS5733L Evaluation Module This user’s guide describes the operation of the TAS5733L evaluation module (EVM). The EVM is connected to the PurePath™ Console Motherboard (PPCMB) and is configured using PurePath Console 3 (PPC3) software. Visit the e2e Audio Amplifiers forum for questions and other support issues.
  • Page 2 TAS5733LEVM Bill of Materials Overview The TAS5733L evaluation module showcases the latest TI digital input Class-D open-loop amplifiers. The TAS5733L is an I²S input Class-D amplifier with audio processing features. The EVM is configured in Two-Device 2.1 mode with one stereo device using bridge tied load for left and right channels and one mono device configured for mono applications, such as higher power full-range speakers or subwoofers.
  • Page 3 Power supply (8 V to 16.5 V) • Audio Source (Analog, USB, Optical) • Micro type-B USB cable • PurePath Console 3.xx GUI running on a PC SLOU439 – March 2016 TAS5733L Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 4 Using the TAS5733LEVM with PurePath Console 3 TAS5733L Application Connection The TAS5733L application is available in PPC3 after correct installation and approval. Sign into PPC3 to gain access to the TAS5733L application installer. After installing, the TAS5733L application is available.
  • Page 5 TAS5733L Application Features The Home window is displayed when the TAS5733L application is initialized. Several evaluation and integration options are available. TI recommends using the application walkthrough by clicking on the question mark icon available next to the page name in all pages. The application walkthrough feature provides guidance through various sections in the selected page and displays comments explaining the sections of the page.
  • Page 6 The option to save the changes made during the audio tuning using the snapshot feature of PPC3 is also available. TAS5733L Evaluation Module SLOU439 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 7 Audio I/O shortcut This section shows the audio source and sampling frequency that is used to generate the I²S input for the TAS5733L amplifiers. The user is redirected to the main Audio I/O window after clicking this button. Audio Player The Audio Player is used to play audio tracks available in the PC and perform various tuning operations.
  • Page 8 “Ganged” box. Phase, Group Delay, Impulse Response, and pole/zero charts are available as well for the analysis of the equalizer response. TAS5733L Evaluation Module SLOU439 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 9 Using the TAS5733LEVM with PurePath Console 3 www.ti.com Multiband AGL and Full-Band AGL The TAS5733L features three multiband AGLs, as well as a full-band AGL. The multiband AGL is used as a three-band crossover, having an independent custom configuration for low, high, and mid frequency bands.
  • Page 10 Release Rate: When the threshold is raised, this parameter reflects the release rate of the compressed signal. TAS5733L Evaluation Module SLOU439 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 11 EVM is 0x56, the mono device I²C address is 0x54. Direct I2C has two main tabs, I/O and Log, present in the top right corner of the window. SLOU439 – March 2016 TAS5733L Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 12 The End System Integration window has three main options for the customer (1) Dump Current State into a Header file, (2) In-System Debugging, and (3) In-System Tuning. TAS5733L Evaluation Module SLOU439 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 13 SCL, SDA, and GND test points of PPCMB. Limited features of the TAS5733L application are available in this mode. Disconnect from System Debug Mode by clicking on the Disconnect button on the lower left corner of the window.
  • Page 14 PVDD pin connection. The design has wide open areas at the top and bottom part of the amplifier to increase the thermal dissipation of the amplifier. Figure 10. TAS5733L Layout TAS5733L Evaluation Module SLOU439 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 15 Join the audio amplifier discussion forum e2e.ti.com for additional design assistance. SLOU439 – March 2016 TAS5733L Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 16 Board Layout, Bill of Materials, and Schematic www.ti.com TAS5733LEVM Board Layout Figure 13 through Figure 18 show the PCB layouts. Figure 13. TAS5733LEVM Top Composite Figure 14. TAS5733LEVM Top Layer TAS5733L Evaluation Module SLOU439 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 17 Board Layout, Bill of Materials, and Schematic www.ti.com Figure 15. TAS5733LEVM Ground Layer Figure 16. TAS5733LEVM Power Layer SLOU439 – March 2016 TAS5733L Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 18 Board Layout, Bill of Materials, and Schematic www.ti.com Figure 17. TAS5733LEVM Bottom Layer Figure 18. TAS5733LEVM Bottom Composite TAS5733L Evaluation Module SLOU439 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 19 24LC512-I/ST Microchip EEPROM, 512KBIT, 400KHZ, 8TSSOP TSSOP-8 C24, C27, C51 0.33uF GRM319R71H334KA01D Murata CAP, CERM, 0.33 µF, 50 V, +/- 10%, X7R, 1206 1206 SLOU439 – March 2016 TAS5733L Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 20 Vishay-Dale RES, 47 k, 5%, 0.063 W, 0402 0402 R18, R19, R20, R21, CRCW060318R0JNEA Vishay-Dale RES, 18, 5%, 0.1 W, 0603 0603 R22, R23 TAS5733L Evaluation Module SLOU439 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 21 PowerPAD TAS5733LDCAR 2200pF Number: AAP066 Designed for:Public Release Texas Instruments and/or its licensors do not warra nt the accuracy or completeness of this specificati on or any information contained SVN Rev: Version control disabled Project Title: TAS5751M-33LEVM therein. Texas Instruments and/or its licensors do not...
  • Page 22 PowerPAD TAS5733LDCAR 2200pF Number: AAP066 Designed for:Public Release Texas Instruments and/or its licensors do not warra nt the accuracy or completeness of this specificati on or any information contained SVN Rev: Version control disabled Project Title: TAS5751M-33LEVM therein. Texas Instruments and/or its licensors do not...
  • Page 23 330pF OUTCD SNUBBER OPTION Number: AAP066 Designed for:Public Release Texas Instruments and/or its licensors do not warra nt the accuracy or completeness of this specificati on or any information contained SVN Rev: Version control disabled Project Title: TAS5751M-33LEVM therein. Texas Instruments and/or its licensors do not...
