This user's guide contains support documentation for the TAS2552 evaluation module (EVM). Also
included are the performance specifications, operating instructions, schematics, printed-circuit board
(PCB) layouts and the bill of materials (BOM) for the TAS2552 EVM.
...................................................................................................................
1
Introduction
1.1
Description
1.2
EVM Specifications
1.3
GUI Installation
.....................................................................................................................
2
Operation
2.1
Quick-Start List for Stand-Alone Operation
.....................................................................................................................
3
Reference
3.1
TAS2552EVM Schematic
3.2
TAS2552EVM PCB Layers
3.3
TAS2552 EVM Bill of Materials
1
Power Connections
2
TAS2552EVM Default Jumper Settings
3
TAS2552EVM Analog Input Connections
Windows is a registered trademark of Microsoft Corporation.
SLAU496A – February 2014 – Revised July 2015
Submit Documentation Feedback
...........................................................................................................
.................................................................................................
......................................................................................................
.........................................................................................
......................................................................................
..................................................................................
List of Figures
..........................................................................................................
..................................................................................
................................................................................
Copyright © 2014–2015, Texas Instruments Incorporated
SLAU496A – February 2014 – Revised July 2015
Contents
.....................................................................
User's Guide
TAS2552 EVM
12
13
TAS2552 EVM
2
2
2
2
3
3
9
9
3
4
5
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TAS2552 EVM
Summary of Contents for Texas Instruments TAS2552 EVM
- Page 1 TAS2552 EVM This user’s guide contains support documentation for the TAS2552 evaluation module (EVM). Also included are the performance specifications, operating instructions, schematics, printed-circuit board (PCB) layouts and the bill of materials (BOM) for the TAS2552 EVM. Contents ........................Introduction ......................
-
Page 2: Table Of Contents

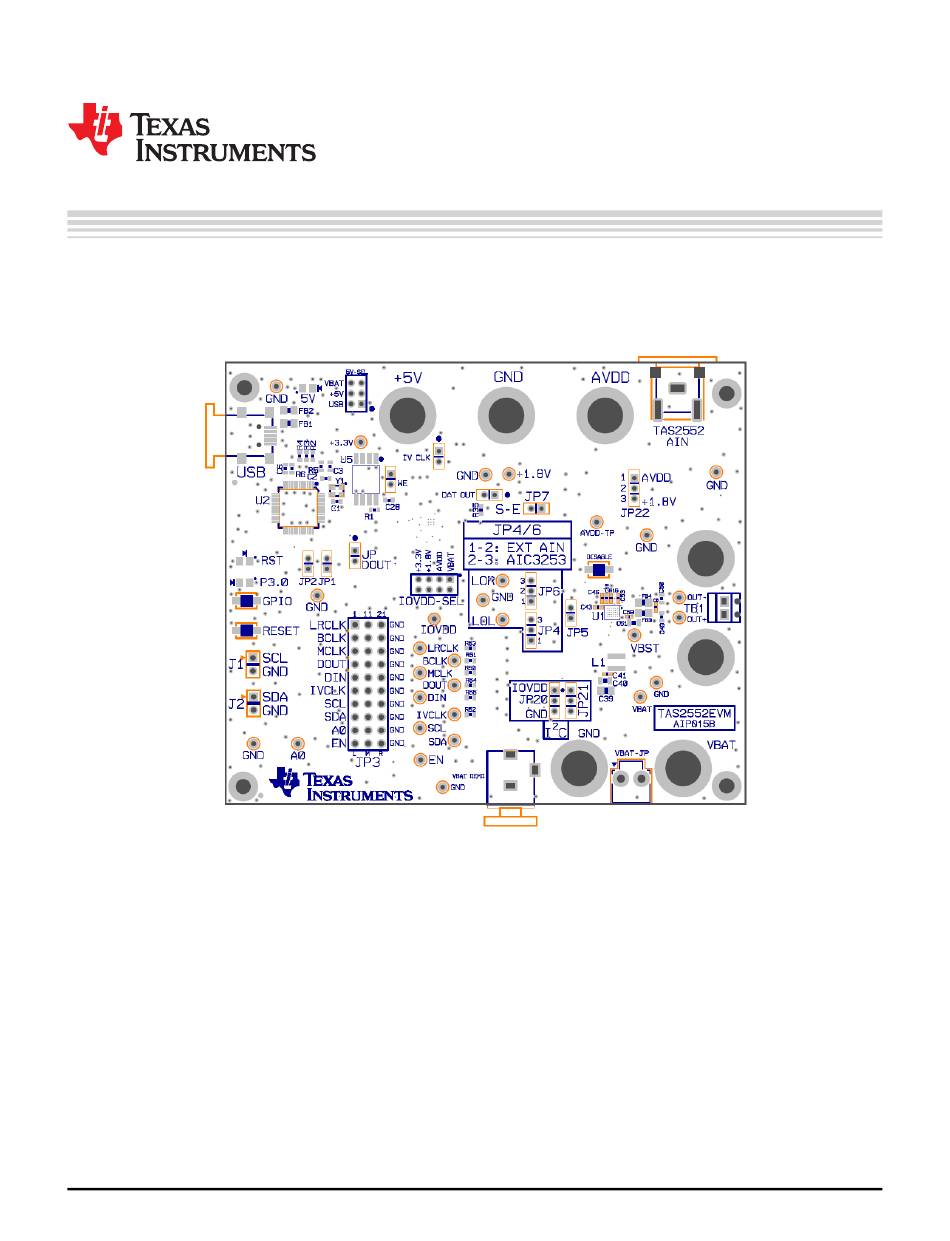

..................Bill of Materials for TAS2552EMV Introduction This section provides an overview of the Texas Instruments (TI) TAS2552 Class-D mono speaker amplifier evaluation module (EVM). It includes a brief description of the module and a list of EVM specifications. Description The TAS2552 is a high efficiency Class-D audio power amplifier with advanced battery current measurement and an integrated boost converter. - Page 3 1). Connect the USB cable to the EVM. This will supply power to required blocks of the EVM. Figure 1. Power Connections SLAU496A – February 2014 – Revised July 2015 TAS2552 EVM Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated...
- Page 4 C pull-up resistors for SDA and SCL JP22 +1.8V Supplies +1.8 V to AVDD from on-board LDO Figure 2. TAS2552EVM Default Jumper Settings TAS2552 EVM SLAU496A – February 2014 – Revised July 2015 Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated...
- Page 5 (highlighted in red in Figure 3. Connect an 8-Ω load to the OUT– and OUT+ terminals. Figure 3. TAS2552EVM Analog Input Connections SLAU496A – February 2014 – Revised July 2015 TAS2552 EVM Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated...
-
Page 6: Disable Pushbutton
EVM properly, try unplugging the USB cable and plug it into the EVM again. Note: This EVM uses the TAS255x GUII as illustrated in Figure Figure 5. CodecControl GUI TAS2552 EVM SLAU496A – February 2014 – Revised July 2015 Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated... -
Page 7: Tas2552 Gui Gain And Input Settings
Class-D will start switching. Set the Volume Control to 0 dB. Refer to the datasheet SLAS898 for more details on gain settings. Figure 6. TAS2552 GUI Gain and Input Settings SLAU496A – February 2014 – Revised July 2015 TAS2552 EVM Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated... -
Page 8: Jumper Settings For Digital Input Mode
GND for each pair. The same I2S script can also be used for direct digital. Note: The sample rate for this script is 44.1 kHz. The format is I2S. TAS2552 EVM SLAU496A – February 2014 – Revised July 2015 Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated... -
Page 9: Tas2552 Evm Power And Usb Controller Schematic
JANUARY 28, 2014 SHEET DESIGN LEAD DOMINIK HARTL FILENAME AIP015B_Schematic.sbk DRAWN BY Figure 7. TAS2552 EVM Power and USB Controller Schematic SLAU496A – February 2014 – Revised July 2015 TAS2552 EVM Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated... -
Page 10: Tas2552 Evm Schematic (2 Of 3)
JANUARY 28, 2014 SHEET TLV320AIC3253YZK DESIGN LEAD DOMINIK HARTL FILENAME AIP015B_Schematic.sbk DRAWN BY Figure 8. TAS2552 EVM Schematic (2 of 3) TAS2552 EVM SLAU496A – February 2014 – Revised July 2015 Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated... -
Page 11: Tas2552 Evm Schematic (3 Of 3)
DATE JANUARY 28, 2014 SHEET DESIGN LEAD DOMINIK HARTL FILENAME AIP015B_Schematic.sbk DRAWN BY Figure 9. TAS2552 EVM Schematic (3 of 3) SLAU496A – February 2014 – Revised July 2015 TAS2552 EVM Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated... -
Page 12: Tas2552 Evm Top X-Ray View
TAS2552EVM PCB Layers Figure 10 Figure 11 illustrate the PCB layouts for this EVM. Figure 10. TAS2552 EVM Top X-Ray View Figure 11. TAS2552 EVM Bottom X-Ray View TAS2552 EVM SLAU496A – February 2014 – Revised July 2015 Submit Documentation Feedback... -
Page 13: Bill Of Materials For Tas2552Emv
Reference www.ti.com TAS2552 EVM Bill of Materials Table 4 contains the BOM for this EVM. Table 4. Bill of Materials for TAS2552EMV Item MFG Part NUM Ref Designators Description TAS2552YFF TEXAS INSTRUMENTS DIG IN 3.5W CLASS-D AUDIO AMP ADAPTIVE BOOST SPKR SENSE WCSP30-YFF... - Page 14 JP1, JP2, JP4(1-2), JP5, JP6(1-2), JP20(1-2), JP21(1-2), JP22(2-3), 5V- SHUNT BLACK AU FLASH 2mmLS OPEN TOP ROHS SEL (Shunt VBAT), IOVDD-SEL(+3.3V) TOTAL TAS2552 EVM SLAU496A – February 2014 – Revised July 2015 Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated...
- Page 15 These assemblies must comply with workmanship standards IPC-A-610 Class 2. Ref designators marked with an asterisk ('**') cannot be substituted. All other components can be substituted with equivalent MFG's components. SLAU496A – February 2014 – Revised July 2015 TAS2552 EVM Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated...
- Page 16 Added 'be sure... JP5 is not installed' to Analog input bullet in the Jumpering Notes section. NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Revision History SLAU496A – February 2014 – Revised July 2015 Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated...
