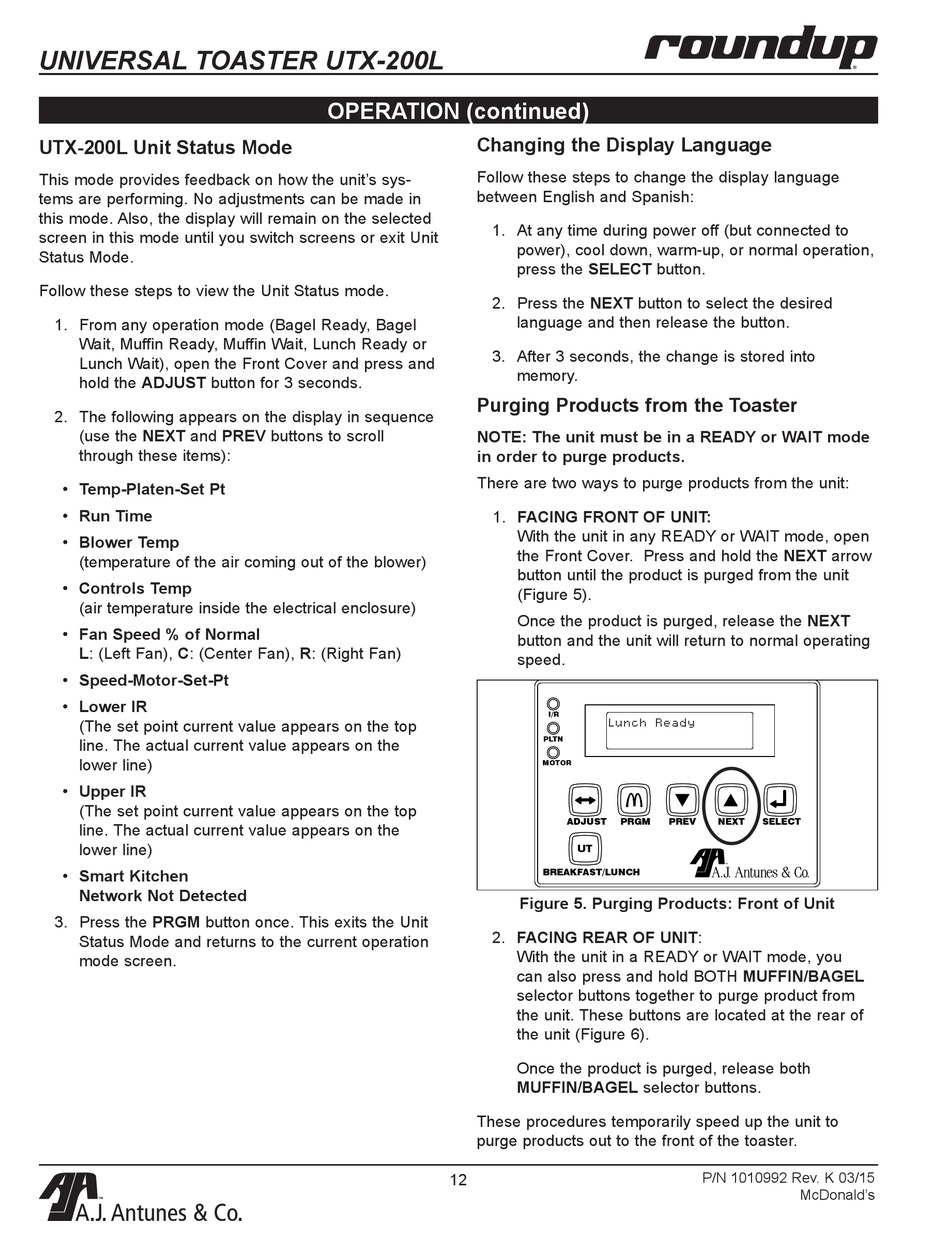

UNIVERSAL TOASTER UTX-200L

UTX-200L Unit Status Mode

This mode provides feedback on how the unit's sys-
tems are performing. No adjustments can be made in
this mode. Also, the display will remain on the selected
screen in this mode until you switch screens or exit Unit
Status Mode.
Follow these steps to view the Unit Status mode.
1. From any operation mode (Bagel Ready, Bagel
Wait, Muffin Ready, Muffin Wait, Lunch Ready or
Lunch Wait), open the Front Cover and press and
hold the ADJUST button for 3 seconds.
2. The following appears on the display in sequence
(use the NEXT and PREV buttons to scroll
through these items):
• Temp-Platen-Set Pt
• Run Time
• Blower Temp
(temperature of the air coming out of the blower)
• Controls Temp
(air temperature inside the electrical enclosure)
• Fan Speed % of Normal
L: (Left Fan), C: (Center Fan), R: (Right Fan)
• Speed-Motor-Set-Pt
• Lower IR
(The set point current value appears on the top
line. The actual current value appears on the
lower line)
• Upper IR
(The set point current value appears on the top
line. The actual current value appears on the
lower line)
• Smart Kitchen
Network Not Detected
3. Press the PRGM button once. This exits the Unit
Status Mode and returns to the current operation
mode screen.
OPERATION (continued)

Changing the Display Language

Follow these steps to change the display language
between English and Spanish:
1. At any time during power off (but connected to
2. Press the NEXT button to select the desired
3. After 3 seconds, the change is stored into

Purging Products from the Toaster

NOTE: The unit must be in a READY or WAIT mode
in order to purge products.
There are two ways to purge products from the unit:
1. FACING FRONT OF UNIT:
2. FACING REAR OF UNIT:
These procedures temporarily speed up the unit to
purge products out to the front of the toaster.
12
power), cool down, warm-up, or normal operation,
press the SELECT button.
language and then release the button.
memory.
With the unit in any READY or WAIT mode, open
the Front Cover. Press and hold the NEXT arrow
button until the product is purged from the unit
(Figure 5).
Once the product is purged, release the NEXT
button and the unit will return to normal operating
speed.
I/R
Lunch Ready
PLTN
MOTOR
ADJUST
PRGM PREV
UT
BREAKFAST/LUNCH
Figure 5. Purging Products: Front of Unit
With the unit in a READY or WAIT mode, you
can also press and hold BOTH MUFFIN/BAGEL
selector buttons together to purge product from
the unit. These buttons are located at the rear of
the unit (Figure 6).
Once the product is purged, release both
MUFFIN/BAGEL selector buttons.
NEXT SELECT
P/N 1010992 Rev. K 03/15
