Roundup UTX-200L Manual

Manufacturing Number 9210805 & 9210806
Place this manual in the Toaster section
of your Equipment Manual.
Manufactured exclusively for
McDONALD'S ®
BY
A.J. ANTUNES & CO.
180 KEHOE BLVD.
CAROL STREAM, ILLINOIS 60188, U.S.A.
PHONE: 1-630-784-1000
TOLL FREE: 1-877-392-7854
FAX: 1-630-784-1650
www.ajantunes.com
C US
Owner Information .....................................................2
General ......................................................................2
Warranty Information .................................................2
Service/Technical Assistance ....................................2
Specifications .............................................................3
Electrical Specifications & Plug Configuration ..........3
Pass Through Time ...................................................3
Dimensions ................................................................3
Important Safety Information ....................................4
Installation ...................................................................5
Operation .....................................................................7
Operating Instructions ...............................................7
Switching Between Muffin and Bagel Mode ..............7
Breakfast to Lunch Change-over...............................8
Product Labels and Toasting Product .......................9
Bun Thickness Compression Control Knob Settings 10
The Antunes Food Service Equipment Division of A.J. Antunes & Co. provides the following limited warranty to the original purchaser of all McDonald's Equipment.
All components are warranted against defects in the material and workmanship for a period of two (2) years from date of original installation.
If any part becomes defective during the period of this Warranty, Antunes Food Service will pay labor costs to an Authorized Service Agent to replace the part plus
travel expenses.
WARRANTY EXCLUSIONS
• The cost of Installation.
• Equipment that has been damaged due to shipment. Purchaser should
make damage claim directly upon carrier.
• Alteration, misuse, abuse.
• Improper storage or handling.
• Improper maintenance.
• Failure to follow proper Installation instructions, including electrical
connection.
Antunes Food Service reserves the right to make changes in design or add improvements on any products. The right is always reserved to modify Equipment
because of factors beyond our control and government regulation. Changes to Equipment do not constitute a warranty charge.
This warranty is exclusive and is in lieu of all other warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular
purpose, each of which is expressly disclaimed. The remedies described above are exclusive, and in no event shall A.J. Antunes & Co. or any of its Divisions be
liable for special consequential or incidental damages for the breach or delay in the performance of this warranty.
This manual is for the exclusive use of licensees and employees of McDonald's Systems, Inc..
P/N 1010992 Rev. K 03/15
McDonald's
UNIVERSAL TOASTER
MODEL UTX-200L

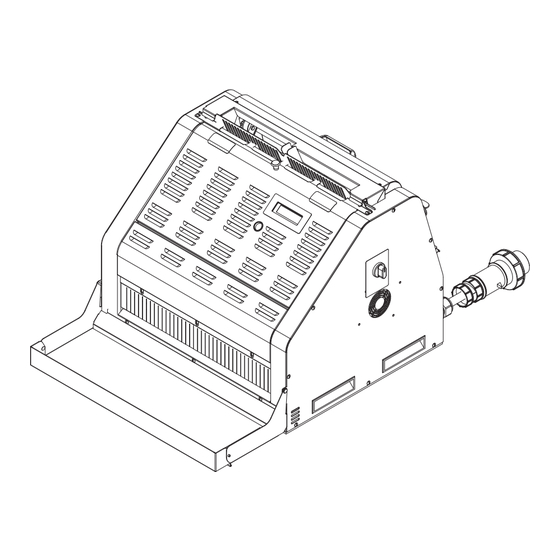

UNIVERSAL TOASTER UTX-200L
A.J. Antunes & Co.
UTX-200 & CTX-200
Scan with mobile device or enter URL
for product and service information.
http://tiny.cc/ajaUTX-CTX
CM

TABLE OF CONTENTS

Adjusting Toasting Quality .......................................10
Viewing the Program Mode Settings .......................11
Universal Toaster Settings .......................................11
UTX-200L Unit Status Mode ...................................12
Changing the Display Language .............................12
Purging Products from the Toaster ..........................12
Shutting down the UTX-200L ..................................13
Reset to Factory Defaults ........................................13
Adjusting the Upper and Lower I.R. ........................14
Maintenance ..............................................................15
DAILY: Cleaning the Accessories, Release Sheet, and
Vertical Conveyor Belt .............................................15
WEEKLY & SEMI ANNUALLY: Clean Cooling Fans 16
Troubleshooting .......................................................17
Replacement Parts ...................................................19
LIMITED WARRANTY
• Improper or unauthorized repairs.
• Scheduled Maintenance procedures as outlined in your MRC Card.
• This Warranty does not cover Consumable items. NOTE: The Conveyor Belt
wraps are consumable items that can be easily adjusted or replaced accord-
ing to the Maintenance Section of this product's Owner's Manual.
• Water pressure problems or contamination problems such as foreign material
in water lines or inside solenoid valves due to an incoming water source.
• Freight, foreign, excise, municipal or other sales or use taxes.
• Consequential damages such as loss of profit, loss of time, the cost of repair-
ing or replacing other property which is damaged, or any other incidental
damage of any kind.
© McDonald's Corporation All Rights Reserved
1
