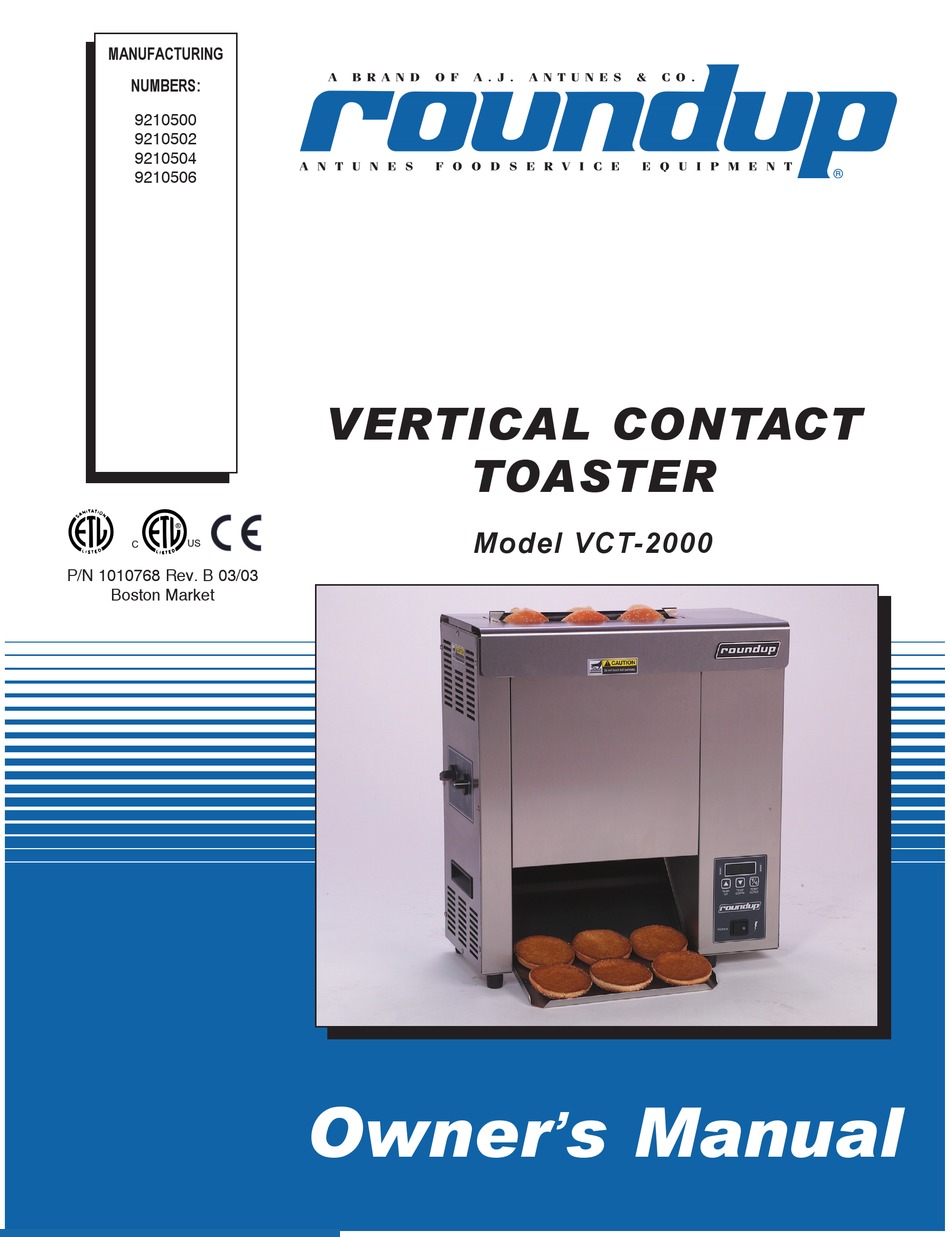

  • Page 1 MANUFACTURING NUMBERS: 9210500 9210502 9210504 9210506 VERTICAL CONTACT TOASTER Model VCT-2000 � �� � P/N 1010768 Rev. B 03/03 Boston Market Owner s Manual ’...

  • Page 2: Table Of Contents

    OWNER INFORMATION Warranty Information General Please read the full text of the Limited Warranty in this The Vertical Contact Toaster Model VCT-2000 is manual. designed for contact toasting of buns. The toaster design allows the operator to place buns on both If the unit arrives damaged, contact the carrier imme- sides of the heated platen at the same time.

  • Page 3: Important Safety Information

    Authorized If you experience any problems with the installation Service Agency. or operation of your unit, contact your local Roundup Authorized Service Agency. Name: Fill in the information below and have it handy when calling your Authorized Service Agency for assistance.

  • Page 4: Important Safety Information

    VERTICAL CONTACT TOASTER IMPORTANT SAFETY INFORMATION In addition to the warnings and cautions which appear • Turn the unit off, disconnect the power source, throughout this manual, use the following guidelines for and allow unit to cool down before performing any safe operation of the unit.

  • Page 5: Electrical Specifications At Listed Voltages

    VERTICAL CONTACT TOASTER SPECIFICATIONS Electrical Specifications at Listed Voltages Electrical Cord & Plug Configurations Model and Voltage Watts Amps Hertz Letter Description Configuration anufacturing Code* Number Commercial Cord VCT-2000CF 1760 14.6 Harmonized Cord 9210500 (H)C CEE 7/7, 16 Amp., VCT-2000HC 220-240 1785- 8.1-8.8...

  • Page 6: Installation And Setup

    • Owner’s Manual 3. Remove all shipping tape and protective cover- ings from the unit and parts. NOTE: If any parts are missing or damaged, con- tact Roundup Technical Service IMMEDIATELY at 1-877-392-7854 (North America only) or 630-784- 1000. Assembling the Unit NOTE: The factory has pre-installed a Release Sheet over the Platen (Figure 1).

  • Page 7: Operation

    �������������������� � �������������������� � ������������������ � �������������������� ������������������ � �������������������� � Bun Landing Area Rocker Switch Temperature Controls & Temperature Display Figure 2. VCT-2000 Toaster ��������� ��������� � � � � � � � � � � ������������������� ������������������� �...

  • Page 8: Operation (Continued)

    VERTICAL CONTACT TOASTER OPERATION (continued) TEMPERATURE CONTROL PANEL “Heat On” LED will blink on/off during warm-up and when either NOTE: Setpoint Temperature refers to the desired platen or auxiliary heaters are calling for heat. temperature setting. SP - P Pressing the TEMP UP key will display the current plat- en heater temperature providing the platen temperature is over 440°F (227°C).

  • Page 9: Operation (Continued)

    If the platen heater temperature exceeds 620°F (327°C) the display will flash “HI” (Figure 7). After the toaster has cooled down, the unit must be turned off, then back on to restart. If this condition repeats, contact your Roundup Authorized Service POWER POWER Agency.

  • Page 10: Maintenance

    VERTICAL CONTACT TOASTER MAINTENANCE WARNING Turn the unit off, disconnect the power source and allow the unit to cool down before performing any service or maintenance on the unit. CAUTION To prevent damage to the unit, do not use abra- sive cleaners on the release sheet or belt wrap.

  • Page 11: Replacing Release Sheet

    VERTICAL CONTACT TOASTER Heat Shield Clips Heat Shield Release Sheet Platen Conveyor Interlock Switch Conveyor Cover Figure 12. Installing Release Sheet...

  • Page 12: Replacing Belt Wraps

    VERTICAL CONTACT TOASTER Replacing Belt Wraps Interlock Switch Conveyor NOTE: When properly maintained, the belt wraps Cover Assy. should last about 3-6 months depending upon usage. 1. Turn the Rocker Switch (power On/Off) to OFF, unplug the power cord, and allow the unit to cool down before proceeding.

  • Page 13: Measuring And Adjusting The Conveyor Belt Chains13

    VERTICAL CONTACT TOASTER Measuring and Adjusting the Conveyor Rotation Belt Chains Upper Support Rod NOTE: This is a periodic adjustment and not cov- ered under the warranty. Large Link Over time, the Conveyor Belt Chain links will wear and P/N 0800121 the Conveyor Belt Chain will stretch, eventually caus- Small Link ing buns to stick.

  • Page 14: Troubleshooting

    VERTICAL CONTACT TOASTER TROUBLESHOOTING WARNING To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip- ment should be performed by qualified service personnel. The unit should be unplugged when servicing, except when electrical tests are required. Use extreme care during electrical circuit tests. Live circuits will be exposed.
  • Page 15 VERTICAL CONTACT TOASTER TROUBLESHOOTING (continued) Problem Possible Cause Corrective Action Buns are sticking (con- Conveyor Belt not turning, Verify that the Motor Drive Chain is attached. tinued). Conveyor Drive Chain not turning. Contact your maintenance person or Authorized Service Agency. Buns are not toasting Compression settings incorrect Reset to your normal settings.

  • Page 16: Replacement Parts

    VERTICAL CONTACT TOASTER REPLACEMENT PARTS 82/82A...
  • Page 17 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) Parts Identification Interlock Switch - 97 Drive Chain - 18 Transformer - 27 Idler Sprocket - 19 Drive Sprocket - 17 Drive Sprocket - 17 Platen Relay - 26 Temperature Control Board - 11 Drive Motor Assy.
  • Page 18 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) ��� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� ��...
  • Page 19 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) 30, 94 31, 95...
  • Page 20 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) Item Part No. Description Qty. Item Part No. Description Qty. 0011266 Conveyor Belt, consists of below 2 4000170 Fan Blade, Motor 0800204 1/2” Pitch Link, Small 040K251 Strain Relief (Domestic)(Incl. #63)1 0800121 3/4” Pitch Link, Large 0400315 Strain Relief (International) 2150117...

  • Page 21: Wiring Diagram

    VERTICAL CONTACT TOASTER WIRING DIAGRAM...

  • Page 22: Limited Warranty

    2. Roundup reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations. Changes to update equipment do not constitute a warranty charge.
