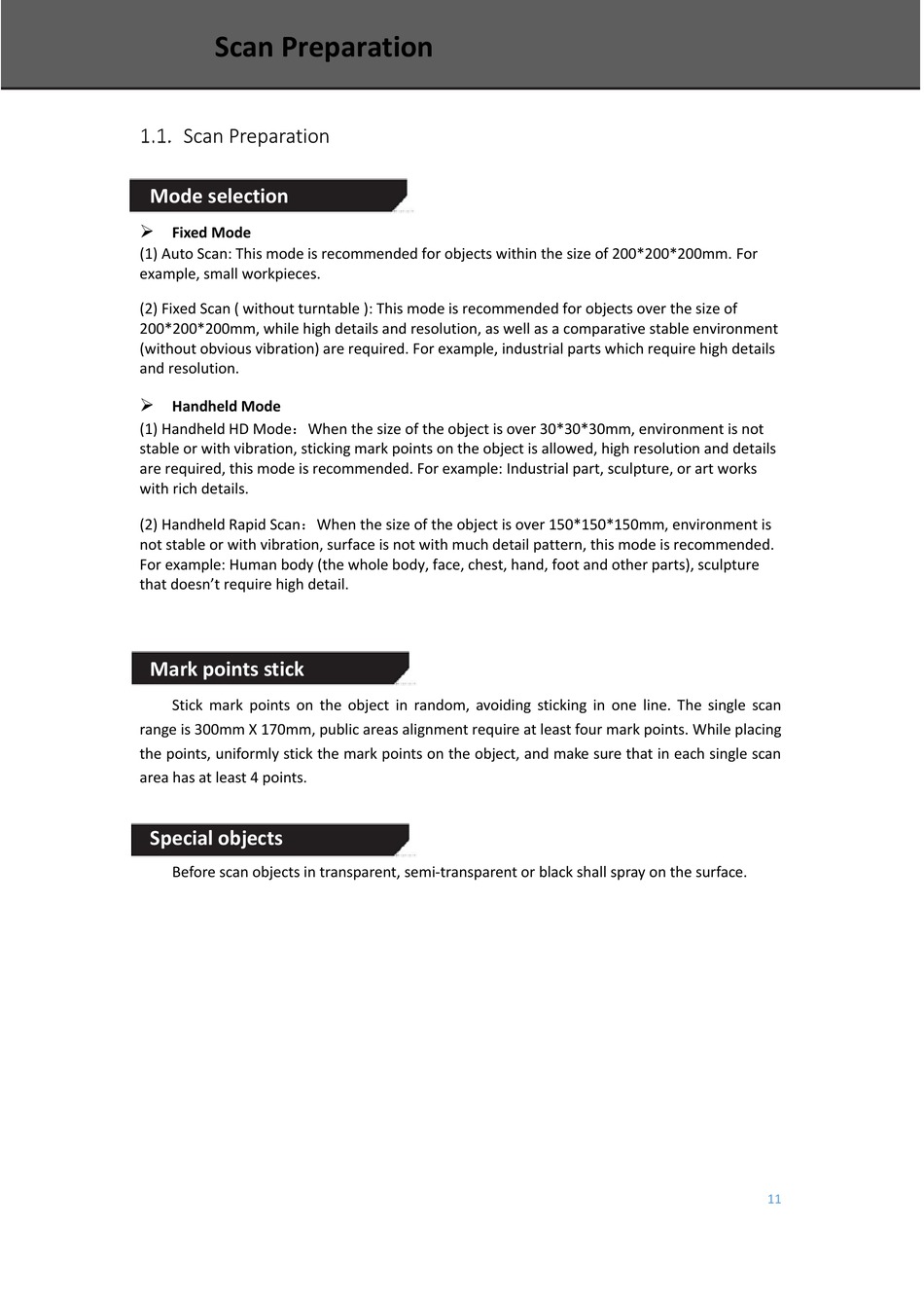

Scan Preparation

Mode selection

Fixed Mode
(1) Auto Scan: This mode is recommended for objects within the size of 200*200*200mm. For
example, small workpieces.
(2) Fixed Scan ( without turntable ): This mode is recommended for objects over the size of
200*200*200mm, while high details and resolution, as well as a comparative stable environment
(without obvious vibration) are required. For example, industrial parts which require high details
and resolution.

Handheld Mode
(1) Handheld HD Mode：When the size of the object is over 30*30*30mm, environment is not
stable or with vibration, sticking mark points on the object is allowed, high resolution and details
are required, this mode is recommended. For example: Industrial part, sculpture, or art works
with rich details.
(2) Handheld Rapid Scan：When the size of the object is over 150*150*150mm, environment is
not stable or with vibration, surface is not with much detail pattern, this mode is recommended.
For example: Human body (the whole body, face, chest, hand, foot and other parts), sculpture
that doesn't require high detail.
Mark points stick
Stick mark points on the object in random, avoiding sticking in one line. The single scan
range is 300mm X 170mm, public areas alignment require at least four mark points. While placing
the points, uniformly stick the mark points on the object, and make sure that in each single scan
area has at least 4 points.
Special objects
Before scan objects in transparent, semi-transparent or black shall spray on the surface.
