Getting Started Chapter 3

3.13 Media Roll Holder Option

The printer may be configured with an optional media holder for media wound on rolls. The
holder is designed to hold media cores of 1.5" or larger and contains media guides intended
to help prevent unnecessary unwinding of media.

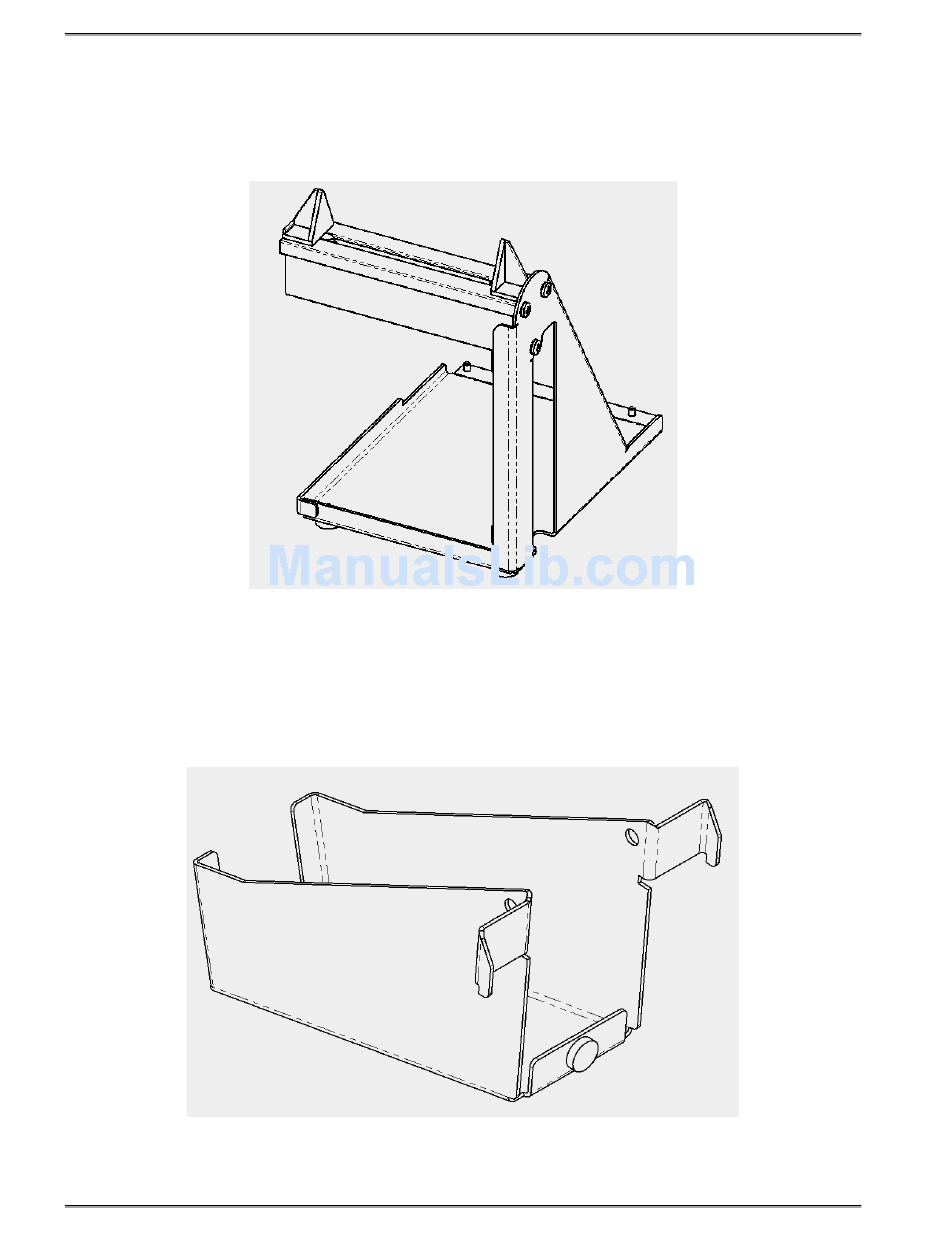

Figure 3-11 Rolled Media Holder

3.14 Ticket Catch Tray Option

The printer may be configured with an optional ticket catch tray that is used to catch the
printed tickets. The trays are available in a couple of standard sizes.

Figure 3-12 Ticket Catch Tray

3-12 485TC Operator's Manual - 880058-0100
