Microcom 485TC Quick Start Manual

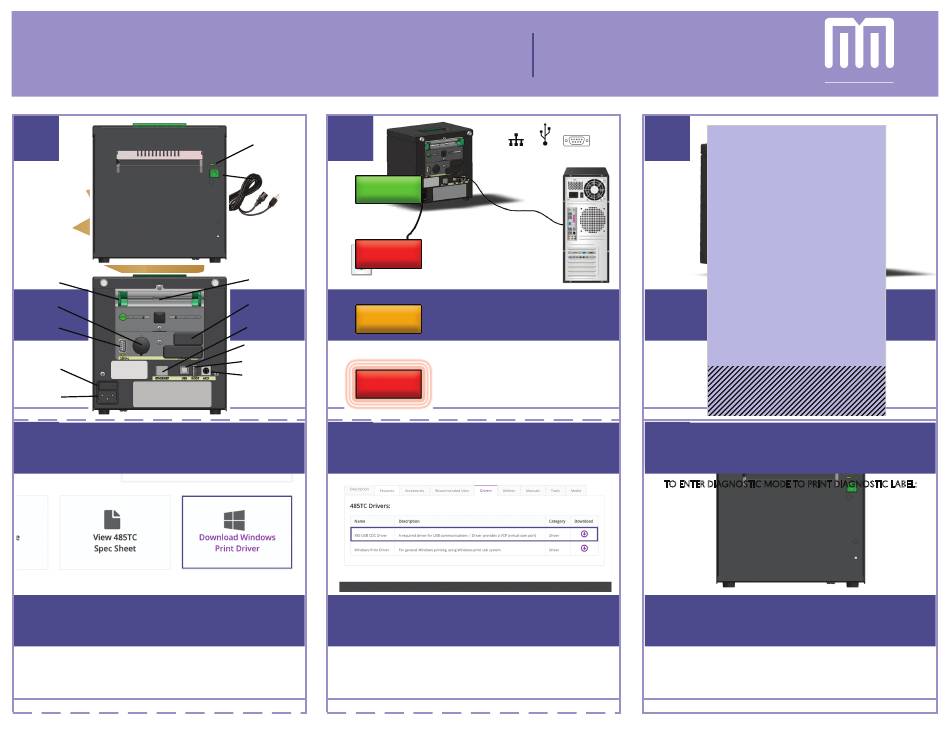

QUICK START GUIDE
1 1
I
UNBOX
J
K
-PACKAGE SHOULD CONTAIN PRINTER, A POWER CORD, AND
-ANY OPTIONAL ITEMS YOU MAY HAVE PURCHASED L
-STICKER ON BACK OF GUIDE WILL INDICATE MODEL TYPE
M
4

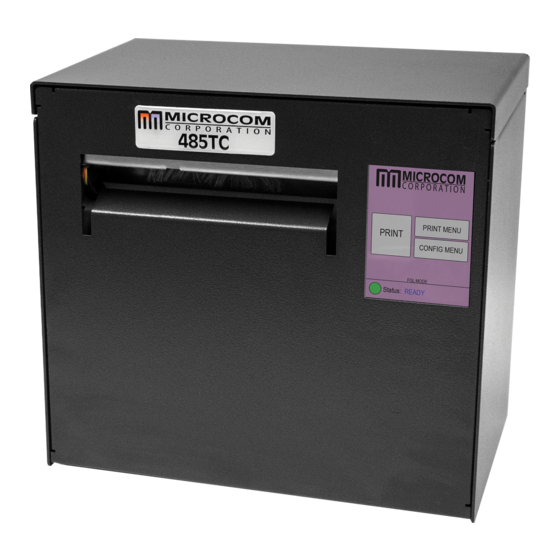

OVERVIEW
A
-FRONT
(A) STATUS LIGHT
(B) PRINT BUTTON
-BACK
(C)
EXTERNAL MEDIA ENTRY SLOT
(D)
CASH DRAWER PORT (OPTIONAL)
(E)
ETHERNET PORT
(F)
USB PORT
INSTALL (WIN)
(G) HOST USB PORT (FOR CODE UPDATES)
(H)
AUX PORT
(I)
ADJUSTABLE MEDIA GUIDES
(J)
RJ 12 SERIAL PORT (OPTIONAL)
-FOR WINDOWS USE:
(K)
RS-232 SERIAL PORT
-GO TO "microcomcorp.com/products/485tc"
(L)
POWER SWITCH
-SCROLL DOWN PRODUCT PAGE AND CLICK DOWNLOAD
-WINDOWS DRIVER" BUTTON
(M)
POWER CONNECTION
-UNZIP FILE AND FOLLOW README INSTRUCTIONS
© Copyright 2019 MICROCOM Corporation. All rights reserved. Microcom Corporation reserves the right to make improvements to their products at any time without prior notice. The information contained herein is subject to change without notice.
Reproduction, adaptation or translation without prior written permission is prohibited, except as allowed under the copyright laws. All company and product names are trademarks or registered trademarks of their respective owner.
2 2
A
B
C
CONNECT
D
E
F
-CONNECT POWER CABLE TO BACK OF PRINTER AND OUTLET
G
-CONNECT COMMUNICATION CABLE TO PRINTER PORT AND
H
-COMPUTER
-POWER ON THE PRINTER
4
STATUS LIGHTS
B
SOLID GREEN: -INDICATES POWER IS ON AND IN READY STATE
SOLID RED: -INDICATES AN ERROR HAS OCCURRED
SOLID RED: -THE PRINTER WILL REMAIN IN THIS STATE
SOLID RED : -UNTIL THE CONDITION IS REMOVED*
SOLID AMBER: -PRINTER IN BOOT LOADER MODE
FLASHING RED: -MEDIA NOT DETECTED
FLASHING RED: -CUTTER ERROR
INSTALL (FGL)
FLASHING RED: -UNSUCCESSFUL MEM. DOWNLOAD OPERATION
FLASHING RED: -POWER SPIKE
FLASHING RED: -LOW VOLTAGE ON AC LINE
-FOR FGL USE:
-GO TO "microcomcorp.com/products/485tc" FLASHING RED: -THE PRINTER WILL REMAIN IN THIS STATE
FLASHING RED: -UNTIL THE CONDITION IS REMOVED*
-SCROLL DOWN TO THE BOTTOM OF PAGE AND FIND THE
-DRIVERS TAB
*IF ERROR PERSISTS, CONTACT YOUR SUPPORT REPRESENTATIVE
-CLICK THE DOWNLOAD BUTTON FOR THE USB CDC DRIVER
MODEL 485TC
ETHERNET | USB | RS-232 SERIAL
SOLID GREEN
SOLID RED
SOLID AMBER
FLASHING RED
MICROCOM
C O R P O R A T I O N
3 3
MICROCOM CORP.
(740) 548-6262
LABEL DIAGNOSTICS
Model: ### XX
Code: ##.##.##
Serial #: X######
CPU Serial #: X######
LangMode: #
Head Size (dots): ####
Head DPI (dots): ###
Life Pwr On (hrs): ##
Life Prntd Lbls: ###
Service Prntd Lbls: ###
Service Power On (hrs): ##
Life Prntd Inch: ###.##
Service Prntd Inch: ###.##
Serial ParamL ######, X, #, #
USB: XXXXXXX
USB MODE: XXX
LOAD
ETH: XXXXXXXX
ETH DHCP: XX
ETH IP: XXXX
ETH SUBNET: XXXX
ETH GW: XXXX
ETH PORT: ####
-LOOSEN GREEN THUMBSCREW AND ADJUST
ETH MAC: ##:##:#X:#X:##:X#
-GUIDES TO FIT PREFERRED MEDIA
WIFI: XXX XXXXXXXXXX
-AFTER ADJUSTMENT, RETIGHTEN GREEN THUMBSCREW
-FEED MEDIA INTO MEDIA ENTRY SLOT (ONCE PRINTER DETECTS
-MEDIA, IT WILL AUTO FEED AND ALIGN PAPER)
5
DIAGNOSTICS
-TO ENTER DIAGNOSTIC MODE TO PRINT DIAGNOSTIC LABEL:
-INSERT MEDIA IN PRINTER
-TURN PRINTER OFF
-PRESS AND HOLD PRINT BUTTON
-WHILE HOLDING PRINT BUTTON IN, TURN PRINTER ON AND
-RELEASE PRINT BUTTON WHEN PRINTER PRINTS
-LABEL (10-12 SECONDS)
TEST
-TO PRINT TEST TICKET WITH FGL, PRESS PRINT BUTTON ONCE
-FOR ADDITIONAL ASSISTANCE CONTACT:
-TO PRINT TEST TICKET WITH WINDOWS DRIVER:
-SALES: SALES@MICROCOMCORP.COM
-GO TO "CONTROL PANEL" THEN "DEVICES AND PRINTERS"
-SUPPORT: SUPPORT@MICROCOMCORP.COM
-RIGHT CLICK THE 485TC AND SELECT PRINTER PROPERTIES
-SERVICE: SERVICE@MICROCOMCORP.COM
-CLICK "PRINT TEST PAGE"
GREEN MEDIA
