Chapter 3
3.7.1

Cash Drawer RJ12 Adapter Option

Some cash drawers may use a RJ12 connector instead of the DB15 connector. The RJ12
adapter (060437-1000) is available as an optional component for these applications.
3.8 AUX Option
The AUX port option or auxiliary port on the printer is for custom application support.
485TC Operator's Manual - 880058-0100
RJ12 Wire Color
1 WHITE
2 BLACK
3 RED
4 GREEN
5 YELLOW
6 BLUE
Table 3-2 RJ12 Adapter Pin-out

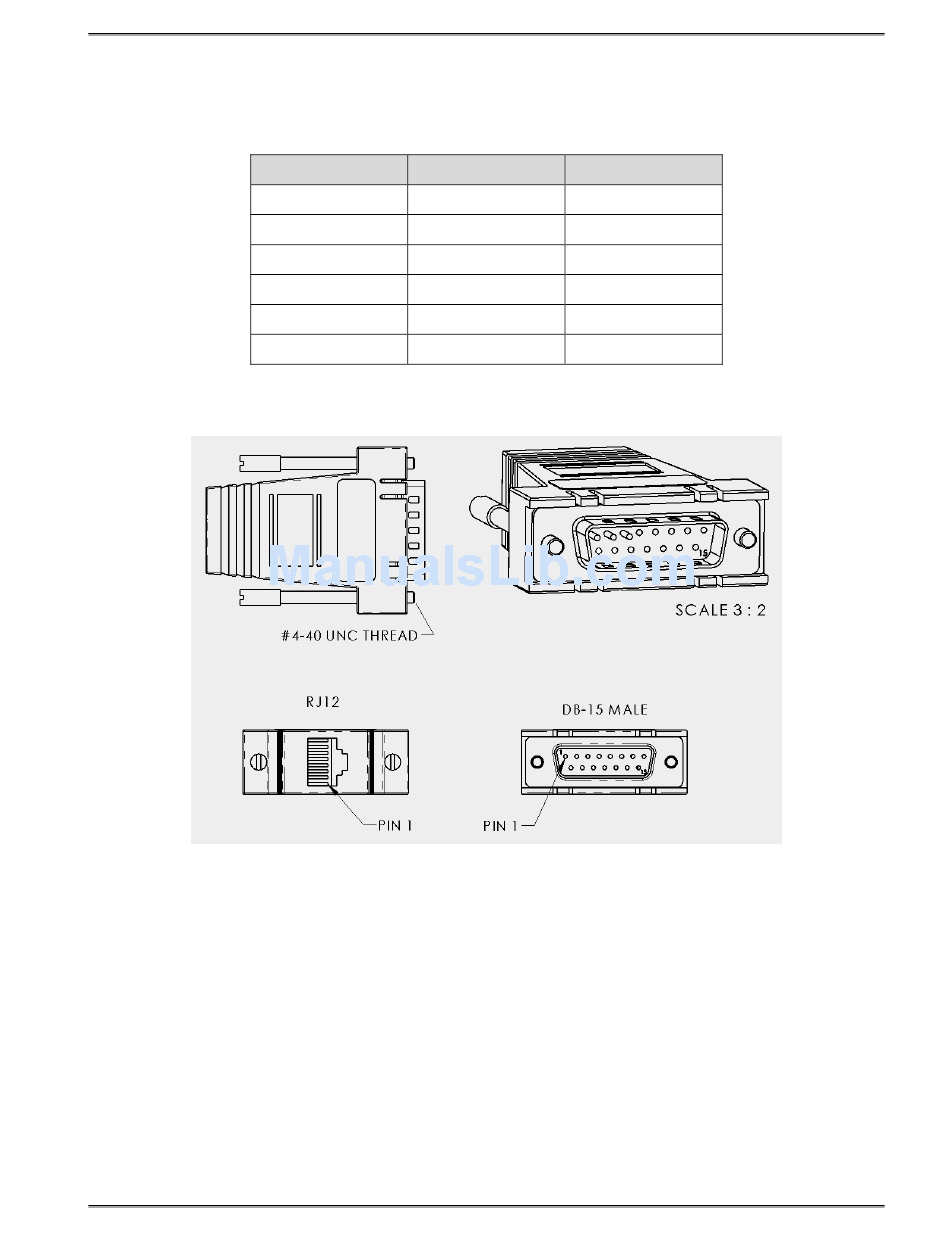

Figure 3-5 Cash Drawer RJ12 Adapter
Getting Started
DB-15
X
1
X
2
3
X
3-5
