Chapter 3

3.11.3

Diagnostic Mode

The Diagnostic Mode temporarily powers up the printer using factory default parameters.

Also, the printer's current user configuration parameters and statistical information are

printed out on a Status Label. This provides useful information to help diagnose and

troubleshoot problems. The printer will use the factory default parameters until the printer

has been reset using a soft reset or by cycling power. The printer will then return to the

configuration shown on the Status Label.

3.11.3.1

To enter the Diagnostic Mode, press and hold the Print Button "IN" while turning the printer

"ON." Release the Print Button after printer light changes to green. The printer will enter

the DIAGNOSTICS Mode, and print the Statistics label and a print test pattern.

3.11.3.2

The Statistics Label may be printed by entering the DIAGNOSTICS Mode.

485TC Operator's Manual - 880058-0100

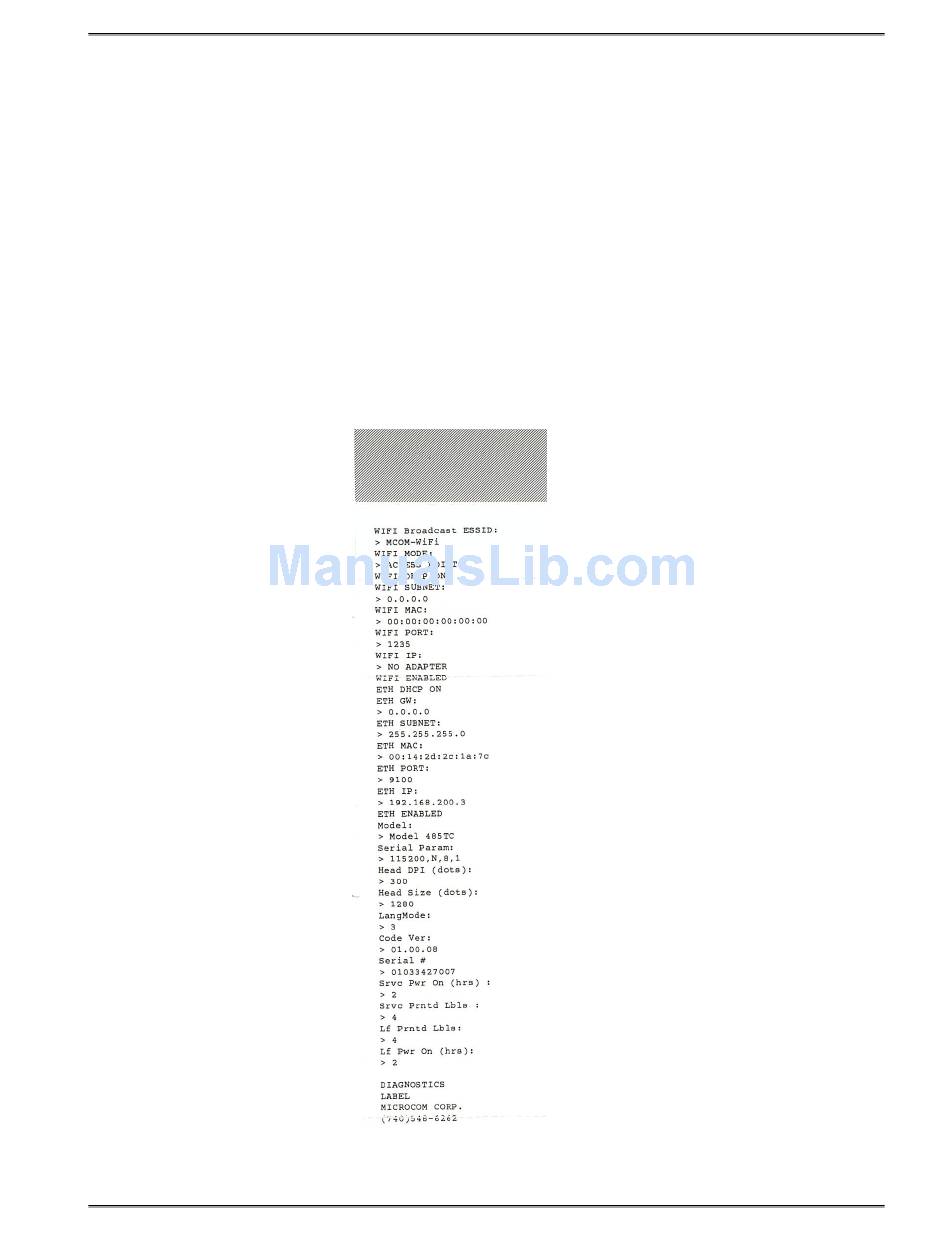

Figure 3-8

Statistics Label Example

Getting Started

3-9
