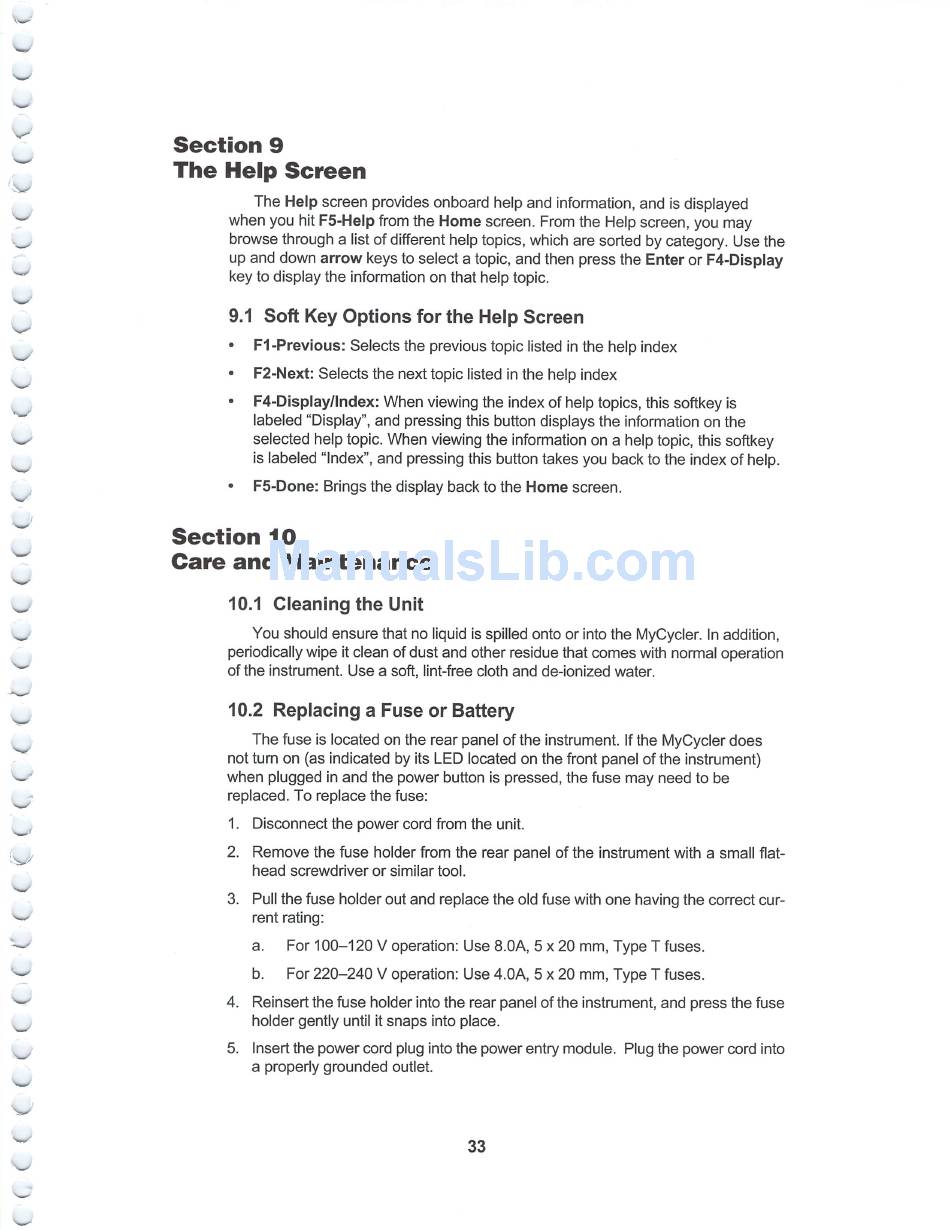

Section 9
The Help Screen
The Help screen provides onboard help and information, and is displayed
y
when you hit F5-Help from the Home screen. From the Help screen, you may
browse through a list of different help topics, which are sorted by category. Use the
up and down arrow keys to select a topic, and then press the Enter or F4-Display
w
key to display the information on that help topic.
9.1 Soft Key Options for the Help Screen
•
F1 -Previous: Selects the previous topic listed in the help index
•
F2-Next: Selects the next topic listed in the help index
•
F4-Display/lndex: When viewing the index of help topics, this softkey is
labeled "Display", and pressing this button displays the information on the
<*>
selected help topic. When viewing the information on a help topic, this softkey
is labeled "Index", and pressing this button takes you back to the index of help.
•
F5-Done: Brings the display back to the Home screen.
Section 10
Care and Maintenance
w
10.1 Cleaning the Unit
_
You should ensure that no liquid is spilled onto or into the MyCycler. In addition,
periodically wipe it clean of dust and other residue that comes with normal operation
of the instrument. Use a soft, lint-free cloth and de-ionized water.
10.2 Replacing a Fuse or Battery
The fuse is located on the rear panel of the instrument. If the MyCycler does
not turn on (as indicated by its LED located on the front panel of the instrument)
—
when plugged in and the power button is pressed, the fuse may need to be
replaced. To replace the fuse:
1.
Disconnect the power cord from the unit.
2.
Remove the fuse holder from the rear panel of the instrument with a small flat-
head screwdriver or similar tool.
3.
Pull the fuse holder out and replace the old fuse with one having the correct cur-
<*
rent rating:
a.
For 100-120 V operation: Use 8.0A, 5 x 20 mm, Type T fuses.
b.
For 220-240 V operation: Use 4.0A, 5 x 20 mm, Type T fuses.
4.
Reinsert the fuse holder into the rear panel of the instrument, and press the fuse
holder gently until it snaps into place.
5.
Insert the power cord plug into the power entry module. Plug the power cord into
a properly grounded outlet.
33
