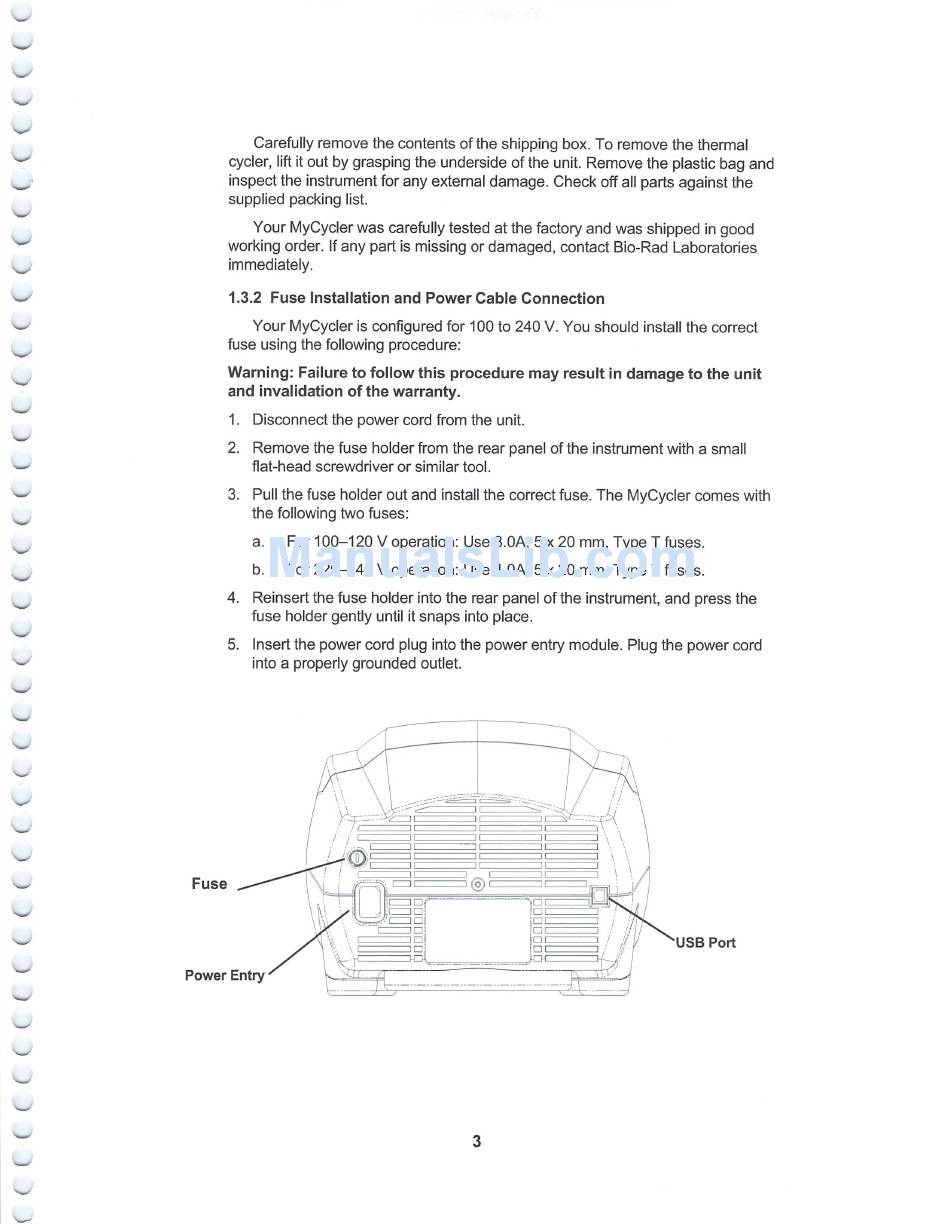

Carefully remove the contents of the shipping box. To remove the thermal
cycler, lift it out by grasping the underside of the unit. Remove the plastic bag and
inspect the instrument for any external damage. Check off all parts against the
supplied packing list.
Your MyCycler was carefully tested at the factory and was shipped in good
working order. If any part is missing or damaged, contact Bio-Rad Laboratories
immediately.
1.3.2 Fuse Installation and Power Cable Connection
Your MyCycler is configured for 100 to 240 V. You should install the correct
fuse using the following procedure:
Warning: Failure to follow this procedure may result in damage to the unit
and invalidation of the warranty.
1.
Disconnect the power cord from the unit.
2.
Remove the fuse holder from the rear panel of the instrument with a small
flat-head screwdriver or similar tool.
3.
Pull the fuse holder out and install the correct fuse. The MyCycler comes with
the following two fuses:
a.
For 100-120 V operation: Use 8.0A, 5 x 20 mm, Type T fuses.
b.
For 220-240 V operation: Use 4.0A, 5 x 20 mm, Type T fuses.
4.
Reinsert the fuse holder into the rear panel of the instrument, and press the
fuse holder gently until it snaps into place.
5.
Insert the power cord plug into the power entry module. Plug the power cord
into a properly grounded outlet.
Fuse
Power Entry
USB Port
