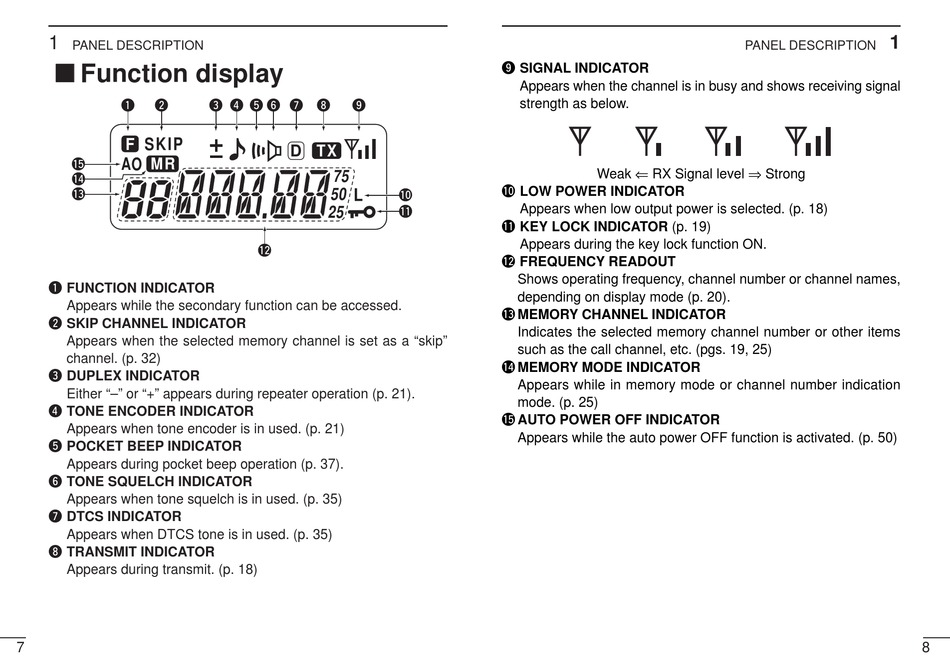

Function Display - Icom IC-V8 Instruction Manual

1
PANEL DESCRIPTION

' ' Function display

q q w q
F SKIP
!5
AO MR
!4
!3
q FUNCTION INDICATOR
Appears while the secondary function can be accessed.
w SKIP CHANNEL INDICATOR
Appears when the selected memory channel is set as a "skip"
channel. (p. 32)
e DUPLEX INDICATOR
Either "–" or "+" appears during repeater operation (p. 21).
r TONE ENCODER INDICATOR
Appears when tone encoder is in used. (p. 21)
t POCKET BEEP INDICATOR
Appears during pocket beep operation (p. 37).
y TONE SQUELCH INDICATOR
Appears when tone squelch is in used. (p. 35)
u DTCS INDICATOR
Appears when DTCS tone is in used. (p. 35)
i TRANSMIT INDICATOR
Appears during transmit. (p. 18)
7
q e r q t q y q q u i q o q
D TX
75
50
L
25
!2
o SIGNAL INDICATOR
Appears when the channel is in busy and shows receiving signal
strength as below.
!0 LOW POWER INDICATOR
!0
!1 Appears when low output power is selected. (p. 18)
!1 KEY LOCK INDICATOR (p. 19)
Appears during the key lock function ON.
!2 FREQUENCY READOUT
Shows operating frequency, channel number or channel names,
depending on display mode (p. 20).
!3 MEMORY CHANNEL INDICATOR
Indicates the selected memory channel number or other items
such as the call channel, etc. (pgs. 19, 25)
!4 MEMORY MODE INDICATOR
Appears while in memory mode or channel number indication
mode. (p. 25)
!5 AUTO POWER OFF INDICATOR
Appears while the auto power OFF function is activated. (p. 50)
PANEL DESCRIPTION
Weak ⇐ RX Signal level ⇒ Strong
1
8
