12

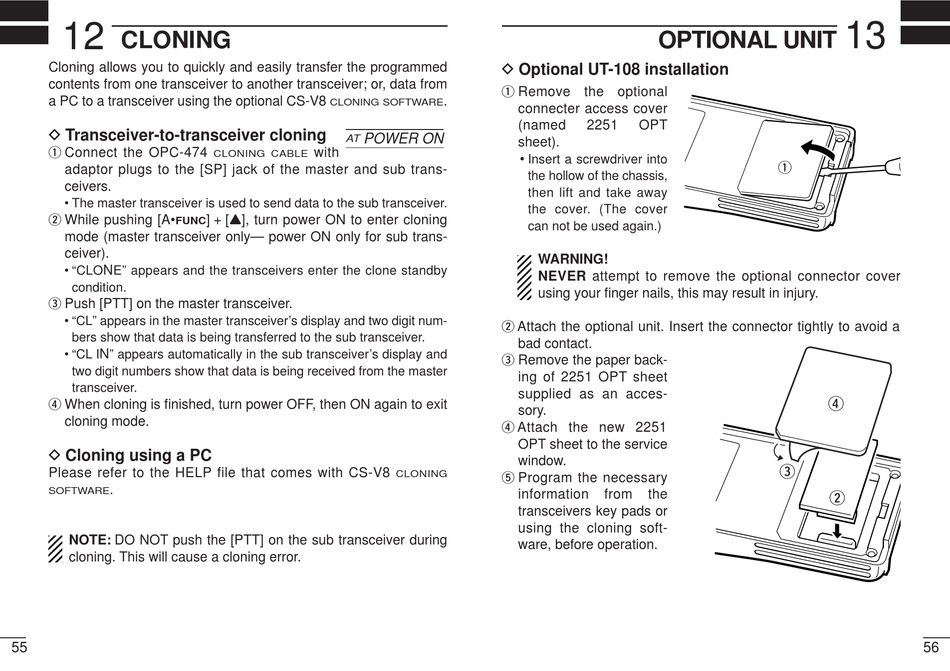

CLONING

Cloning allows you to quickly and easily transfer the programmed
contents from one transceiver to another transceiver; or, data from
a PC to a transceiver using the optional CS-V8
D Transceiver-to-transceiver cloning
q
Connect the OPC-474
adaptor plugs to the [SP] jack of the master and sub trans-
ceivers.
• The master transceiver is used to send data to the sub transceiver.
w
While pushing [A•
FUNC
mode (master transceiver only— power ON only for sub trans-
ceiver).
N
• "CLO E" appears and the transceivers enter the clone standby
condition.
e
Push [PTT] on the master transceiver.
• "CL" appears in the master transceiver's display and two digit num-
bers show that data is being transferred to the sub transceiver.
• "CL I N " appears automatically in the sub transceiver's display and
two digit numbers show that data is being received from the master
transceiver.
r
When cloning is finished, turn power OFF, then ON again to exit
cloning mode.
D Cloning using a PC
Please refer to the HELP file that comes with CS-V8
.
SOFTWARE
NOTE: DO NOT push the [PTT] on the sub transceiver during
cloning. This will cause a cloning error.
55
CLONING SOFTWARE
POWER ON
AT
with
CLONING CABLE
] + [Y], turn power ON to enter cloning
D Optional UT-108 installation
q
Remove the optional
.
connecter access cover
(named
sheet).
• Insert a screwdriver into
the hollow of the chassis,
then lift and take away
the cover. (The cover
can not be used again.)
WARNING!
NEVER attempt to remove the optional connector cover
using your finger nails, this may result in injury.
w
Attach the optional unit. Insert the connector tightly to avoid a
bad contact.
e
Remove the paper back-
ing of 2251 OPT sheet
supplied as an acces-
sory.
r
Attach the new 2251
OPT sheet to the service
window.
CLONING
t
Program the necessary
information
transceivers key pads or
using the cloning soft-
ware, before operation.

OPTIONAL UNIT

2251 OPT
from the
13
q
r
e
w
56
