10

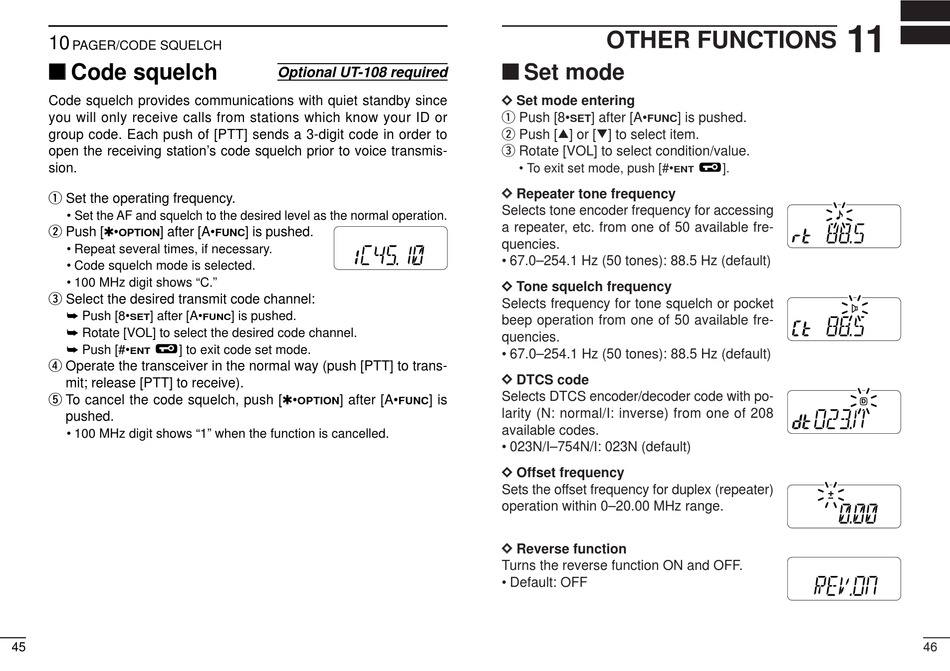

PAGER/CODE SQUELCH

' ' Code squelch

Code squelch provides communications with quiet standby since
you will only receive calls from stations which know your ID or
group code. Each push of [PTT] sends a 3-digit code in order to
open the receiving station's code squelch prior to voice transmis-
sion.
q Set the operating frequency.
• Set the AF and squelch to the desired level as the normal operation.
w Push [ •
] after [A•
OPTION
• Repeat several times, if necessary.
• Code squelch mode is selected.
• 100 MHz digit shows "C."
e Select the desired transmit code channel:
Push [8• ] after [A•
SET
Rotate [VOL] to select the desired code channel.
Push [#• ] to exit code set mode.
ENT
r Operate the transceiver in the normal way (push [PTT] to trans-
mit; release [PTT] to receive).
t To cancel the code squelch, push [ •
pushed.
• 100 MHz digit shows "1" when the function is cancelled.
45
Optional UT-108 required
] is pushed.
FUNC
F
MR
] is pushed.
FUNC
] after [A•
OPTION

' ' Set mode

D D Set mode entering
q Push [8•
SET
w Push [∫] or [√] to select item.
e Rotate [VOL] to select condition/value.
• To exit set mode, push [#•
D D Repeater tone frequency
Selects tone encoder frequency for accessing
a repeater, etc. from one of 50 available fre-
TX
quencies.
• 67.0–254.1 Hz (50 tones): 88.5 Hz (default)
D D Tone squelch frequency
Selects frequency for tone squelch or pocket
beep operation from one of 50 available fre-
quencies.
• 67.0–254.1 Hz (50 tones): 88.5 Hz (default)
D D DTCS code
Selects DTCS encoder/decoder code with po-
] is
FUNC
larity (N: normal/I: inverse) from one of 208
available codes.
• 023N/I–754N/I: 023N (default)
D D Offset frequency
Sets the offset frequency for duplex (repeater)
operation within 0–20.00 MHz range.
D D Reverse function
Turns the reverse function ON and OFF.
• Default: OFF

OTHER FUNCTIONS

] after [A• ] is pushed.
FUNC
].
ENT
11
F
TX
MR
F
TX
MR
F
D TX
MR
F
TX
MR
F
TX
MR
46
