Control Panel

Control Mode

The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)

DMX Addressing

The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the X-Terminator will respond to the controller.
Please note when you use the controller, the unit has 11 channels.
When using multiple X-Terminators, make sure you set the DMX addresses right.
Therefore, the DMX address of the first X-Terminator should be 1(001); the DMX address of the second X-
Terminator should be 1+11=12 (012); the DMX address of the third X-Terminator should be 12+11=23 (023),
etc. Please, make sure that you do not have any overlapping channels in order to control each X-
Terminator correctly.
If two or more X-Terminators are addressed similarly, they will work similarly.
Controlling:
After having addressed all X-Terminator fixtures, you may now start operating these via your lighting
controller.
Note: After switching on, the X-Terminator will automatically detect whether DMX-512 data is received or
not. If there is no data received at the DMX-input, the "LED" on the control panel will not flash.
The problem may be:
• The XLR cable from the controller is not connected with the input of the X-Terminator.
• The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
Display Off after 30 seconds
When no button is pressed for 30 seconds, the display will turn off.
To light up the display, you have to press the MODE, UP, DOWN or ENTER button.
Once you have pressed one of the buttons, the display will light up.
Ordercode: 43157

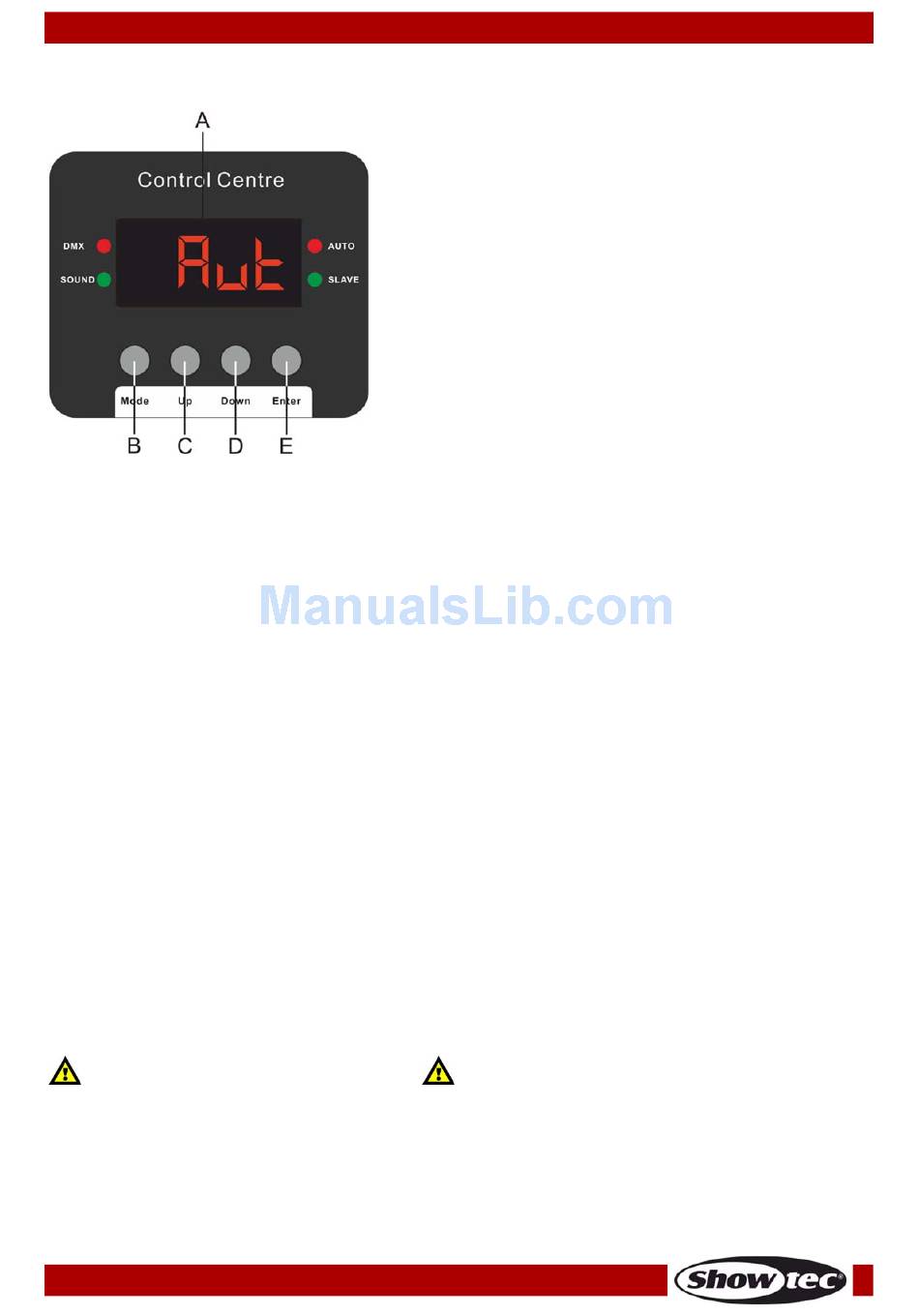

A) LED display
B) MODE button
C) UP button
D) DOWN button
E) ENTER button
16
Fig. 05
