- Page 1 MANUAL ENGLISH LED Pinspot Q4 Ordercode: 42407 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
LED Pinspot Q4 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains ............................5 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Overview ..................................6 Back .................................... -
Page 3: Warning
Your shipment includes: ● Showtec LED Pinspot Q4 with a Schuko power cable (1,5 m) ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ●... - Page 4 For replacement, use fuses of same type and rating only. ● The user is responsible for correct positioning and operating of the LED Pinspot Q4. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
LED Pinspot Q4 Operating Determinations ● This device is not designed for permanent operation. Regular operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light output and the illuminated surface must be bigger than 0,8 meter. -
Page 6: Connection With The Mains
LED Pinspot Q4 Connection with the mains Connect the device to the mains with the power plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE... -
Page 7: Description Of The Device

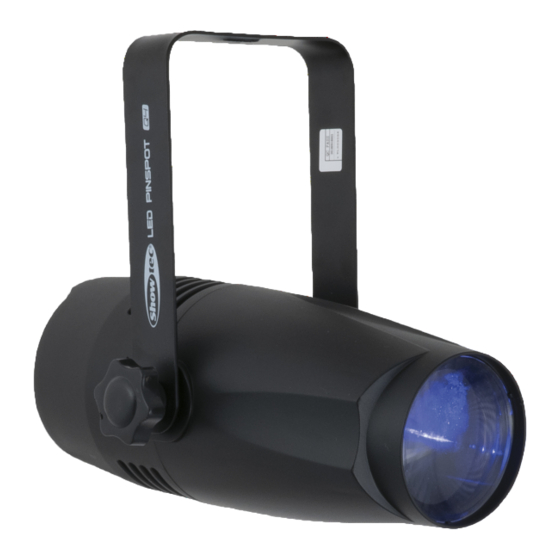

LED Pinspot Q4 Description of the device Features The Showtec LED Pinspot Q4 is a powerful but compact LED pinspot. It is ideal for illuminating mirror balls or small surfaces. ● Input voltage: 100-240 V AC, 50/60 Hz ● Power consumption: 22 W ●... -
Page 8: Back
06) 3-pin DMX signal connector OUT Installation Remove all packing materials from the LED Pinspot Q4. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 9: Control Modes
LED Pinspot Q4 Control Modes There are 6 modes: ● Auto ● Built-in programs ● Static colors ● Sound-controlled ● Master/Slave ● DMX-512 (4CH, 6CH, 8CH) One LED Pinspot (Auto, Built-in programs and Manual) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 10: Multiple Led Pinspots (Dmx Control)
LED Pinspot Q4 Multiple LED Pinspots (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the LED Pinspots and other devices. -
Page 11: Fixture Linking
LED Pinspot Q4 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master / slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 12: Control Panel
LED Pinspot Q4 Control Panel A) LED display B) MODE button C) SETUP button D) UP button E) DOWN button Fig.05 DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address, next time.) -
Page 13: Menu Overview
LED Pinspot Q4 Menu Overview Ordercode: 42407... -
Page 14: Main Menu Options
LED Pinspot Q4 Main Menu Options 1. Auto 2. Built-in Programs 3. Static Colors 4. Sound-controlled mode 5. DMX-512 mode 6. Master/Slave mode 7. Settings 8. Info The LED Pinspot will show its software version at start-up ! 1. Auto With this menu you can set Auto mode. -
Page 15: Programs 02-10
LED Pinspot Q4 Green+Blue Green+Yellow Light+Red Light+Green Light+Blue Warm White Full On Blackout 03) Press the SETUP button to enter the strobe frequency settings. 04) Press the UP/DOWN buttons to set the strobe frequency. The adjustment range is between , from OFF to high frequency. -
Page 16: Sound-Controlled Mode
LED Pinspot Q4 4. Sound-controlled Mode With this menu, you can set the device’s sound sensitivity. 01) Press the MODE button until the display shows 02) Press the SETUP button to open the menu. 03) Press the UP/DOWN buttons to set the desired sound sensitivity. The adjustment range is between , from low to high sound sensitivity. -
Page 17: Dimming Curves
LED Pinspot Q4 7.1. Dimming Curves With this menu you can set the dimming curves. 01) Press the UP/DOWN buttons to choose the desired dimming curve. The adjustment range is between Cu-1 Cu-2 Cu-3 Cu-4 7.2. Reset With this option you can restore the factory default settings. -
Page 18: Info
LED Pinspot Q4 8. Info With this menu you can view the device’s temperature and the software version. 01) Press the MODE button until the display shows 02) Press the SETUP button to open the menu. 03) Press the UP/DOWN buttons to choose one of the 2 submenus:... -
Page 19: Channels
LED Pinspot Q4 Channel 4 – Blue Dimmer intensity CH1 must be open 0-255 Gradual adjustment Blue, from dark to brightest Channel 5 – White Dimmer intensity CH1 must be open 0-255 Gradual adjustment White, from dark to brightest Channel 6 – Strobe... -
Page 20: Maintenance
01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LEDs. Return the LED Pinspot to your Showtec dealer. 03) The internal fuse. Return the LED Pinspot to your Showtec dealer. 04) If all appears to be O.K., plug the unit in again. -
Page 21: No Response To Dmx
Check if power is switched on and No power to the fixture One or more cables are plugged in fixtures do not ● Return the device to your Showtec function at all Internal fuse blown dealer Fixtures reset The controller is not connected ●... -
Page 22: Product Specifications
LED Pinspot Q4 Product Specifications Model: Showtec LED Pinspot Q4 Input voltage: 100-240 V AC, 50/60 Hz Power consumption: 22 W DMX linking: 30 pcs Dimensions: 320 x 166 x 222 mm (LxWxH) Weight: 1,2 kg Operating and Programming: Signal pin OUT:... -
Page 23: Dimensions
LED Pinspot Q4 Dimensions Ordercode: 42407... - Page 24 ©2019 Showtec...
